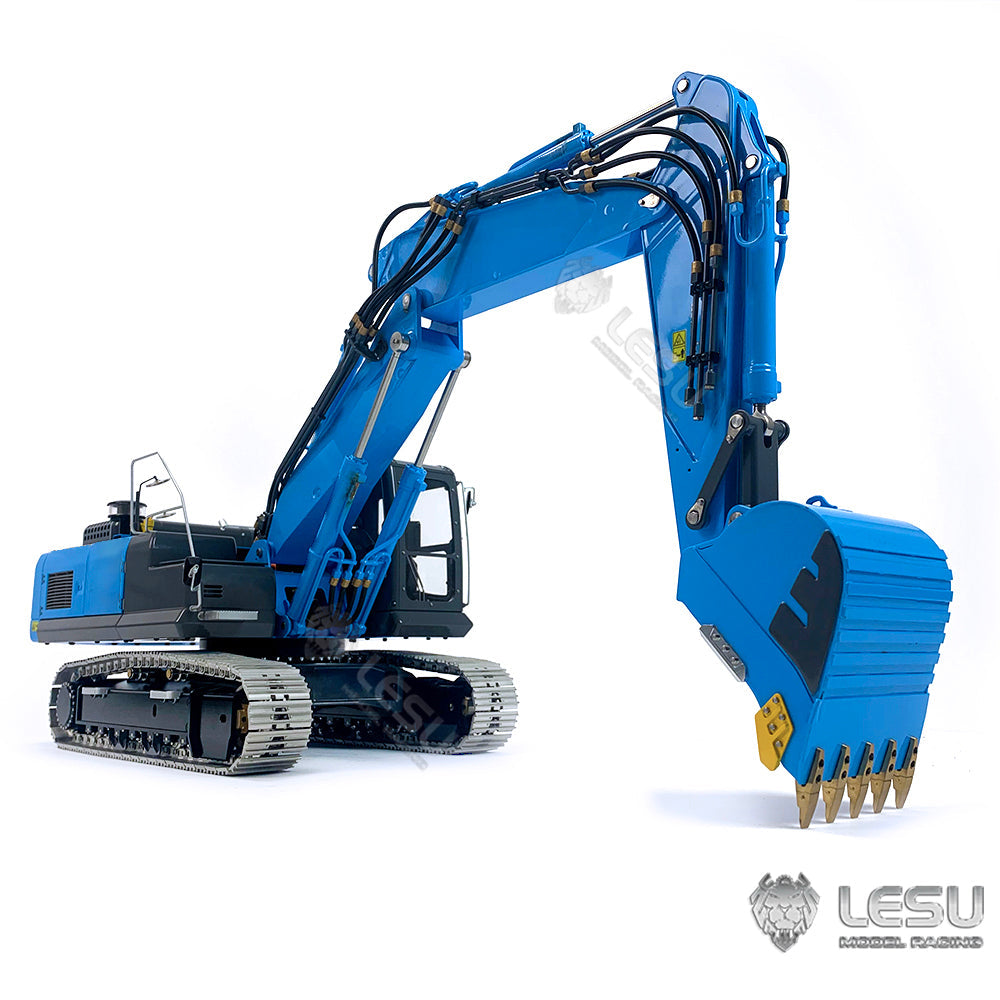

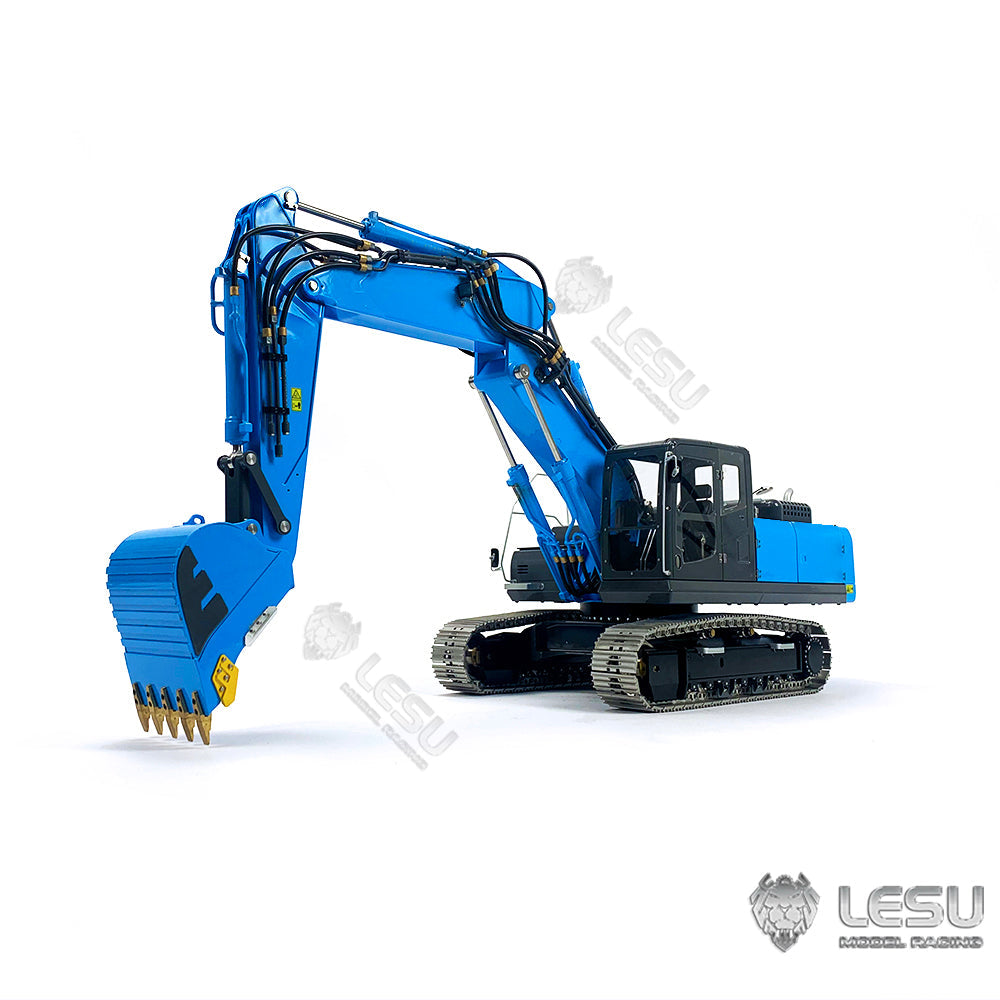

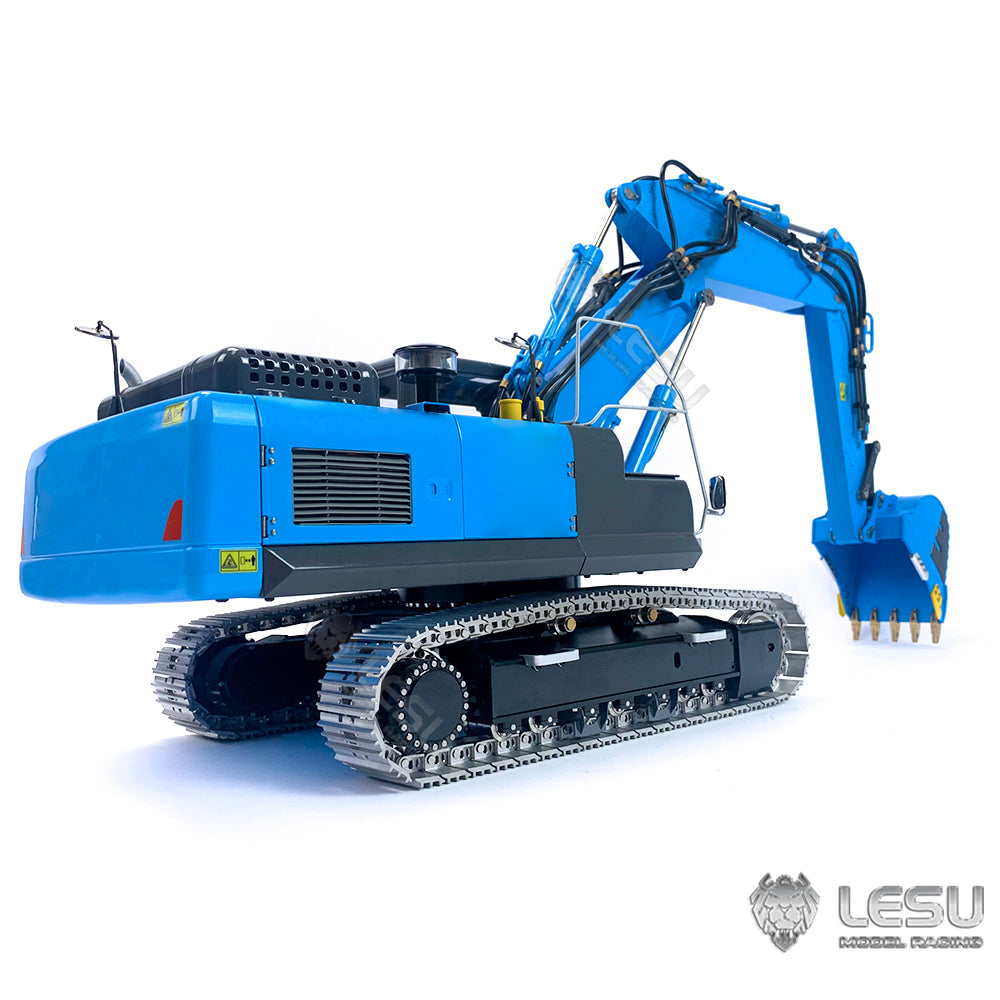

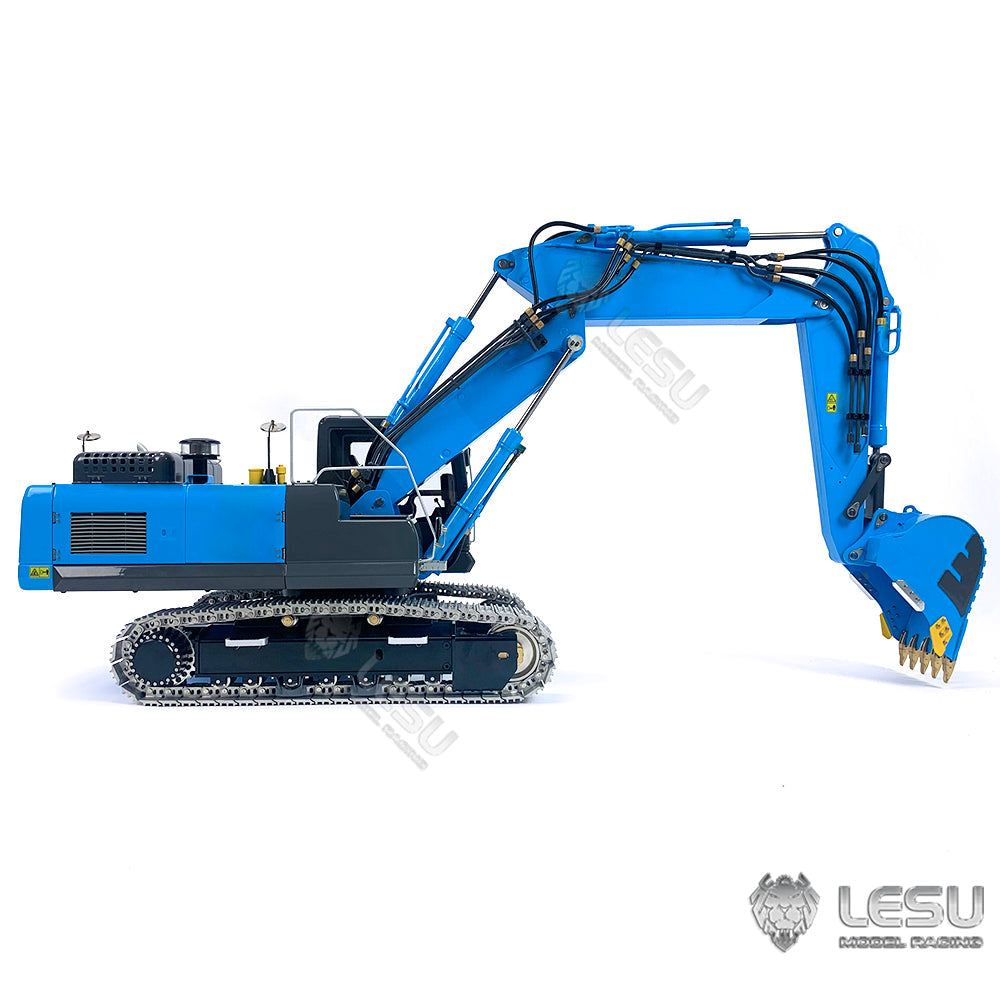

LESU 1/14 Scale ET36L RC Hydraulic Excavator 3-boom Radio Control Digger ESC Servo Motor Hobby Model Painted Assembled

LESU 1/14 Scale ET36L RC Hydraulic Excavator 3-boom Radio Control Digger ESC Servo Motor Hobby Model Painted Assembled

LS-BA-B0011-PNP-PAINTING-BUBK-SPF8

$3,671.90 USD
$3,671.90 USD
Sale Sold out

Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Material: Stainless Steel, Aluminum alloy, Brass
Color: Blue, Black
Net Weight of Product/KG: 18.7
Product Size/mm: 789*245*253
ID: LS-BA-B0011-PNP-PAINTING-BUBK

The Package Includes:
1pc 1/14 Excavator Model

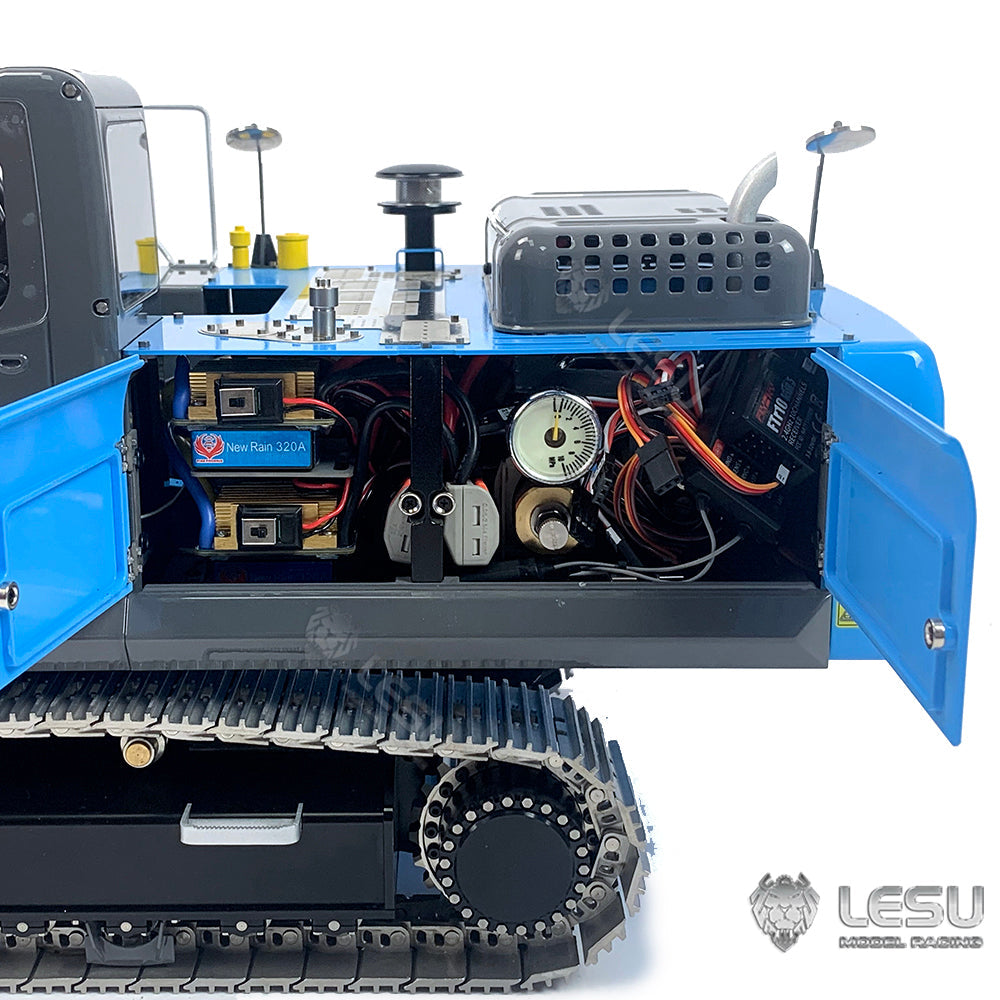

ESC
Motor
Servo

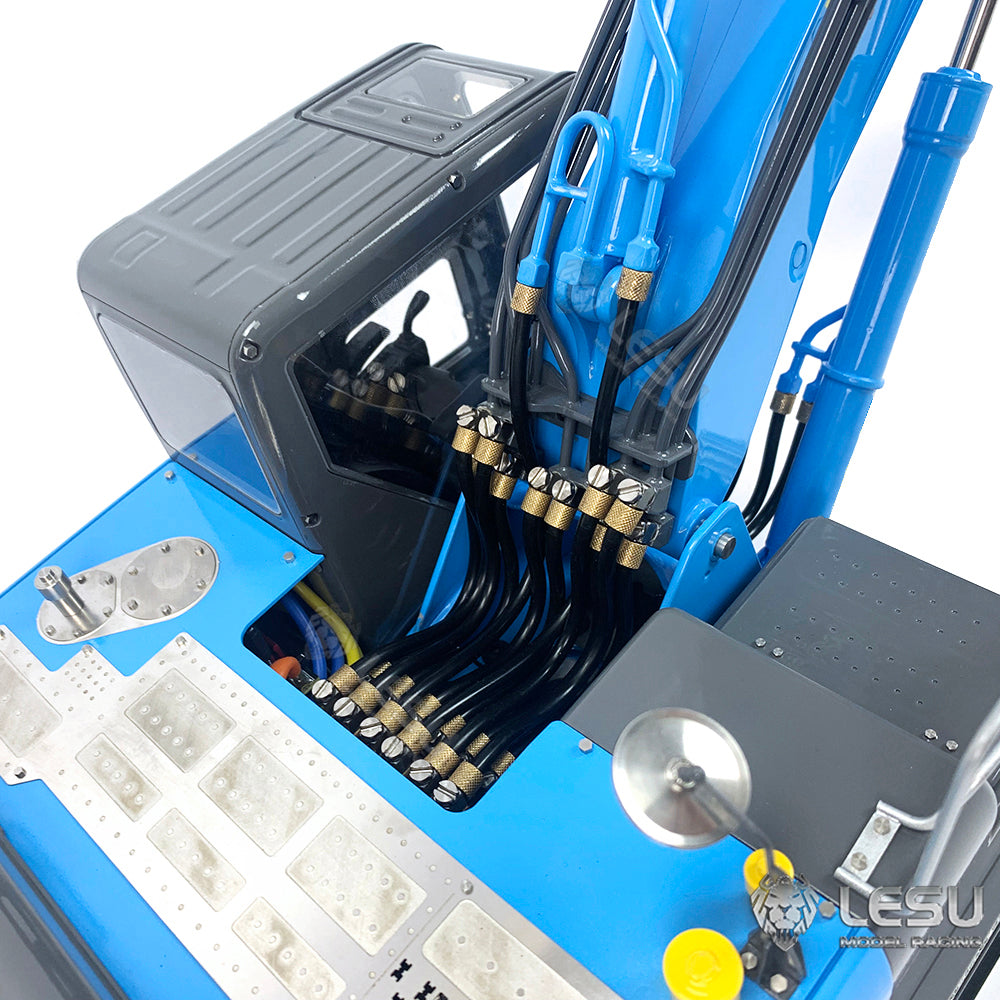

Hydraulic System with 7-Ways Reversing Valve
Light System

The Package Doesn't Include:
Sound System
Battery
Remote Controller and Receiver
Charger
Hydraulic Oil

Features:

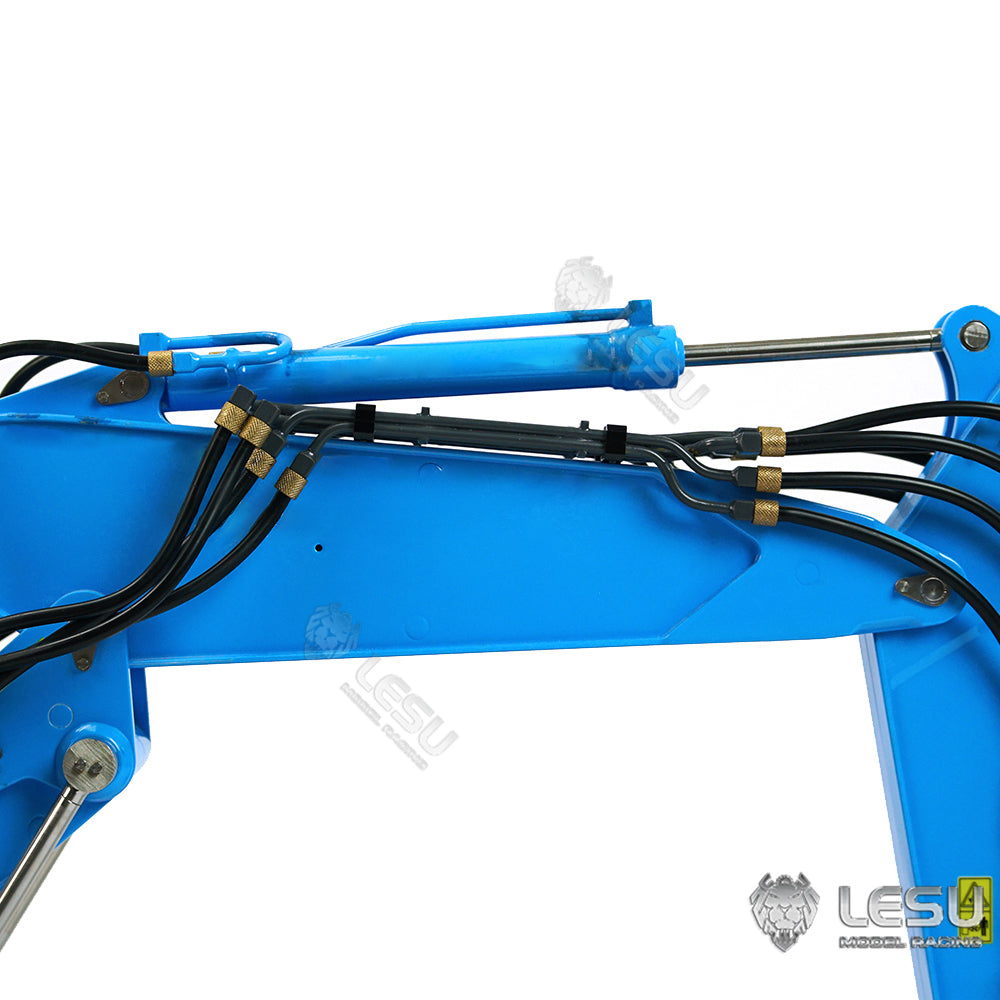

1. Three-section digging arm, large cylinder design, more flexible contraction.
2. The oil circuit system is more reliable with the newly designed overflow valve.
3. 80% of the oil system is welded with copper, and 90% of the whole machine is made of metal.
4. Modular design of the whole machine, aluminum alloy excavator arm and counterweight are CNC machined.
5. Full machine lighting, equipped with a high-simulated electronic display.
6. Precision hydraulic system: more coordinated, smooth and linear action.

Technical parameters:
Height from the top of the cab to the ground/mm: 232.7
Height from the bottom of the working platform to the ground/mm: 84

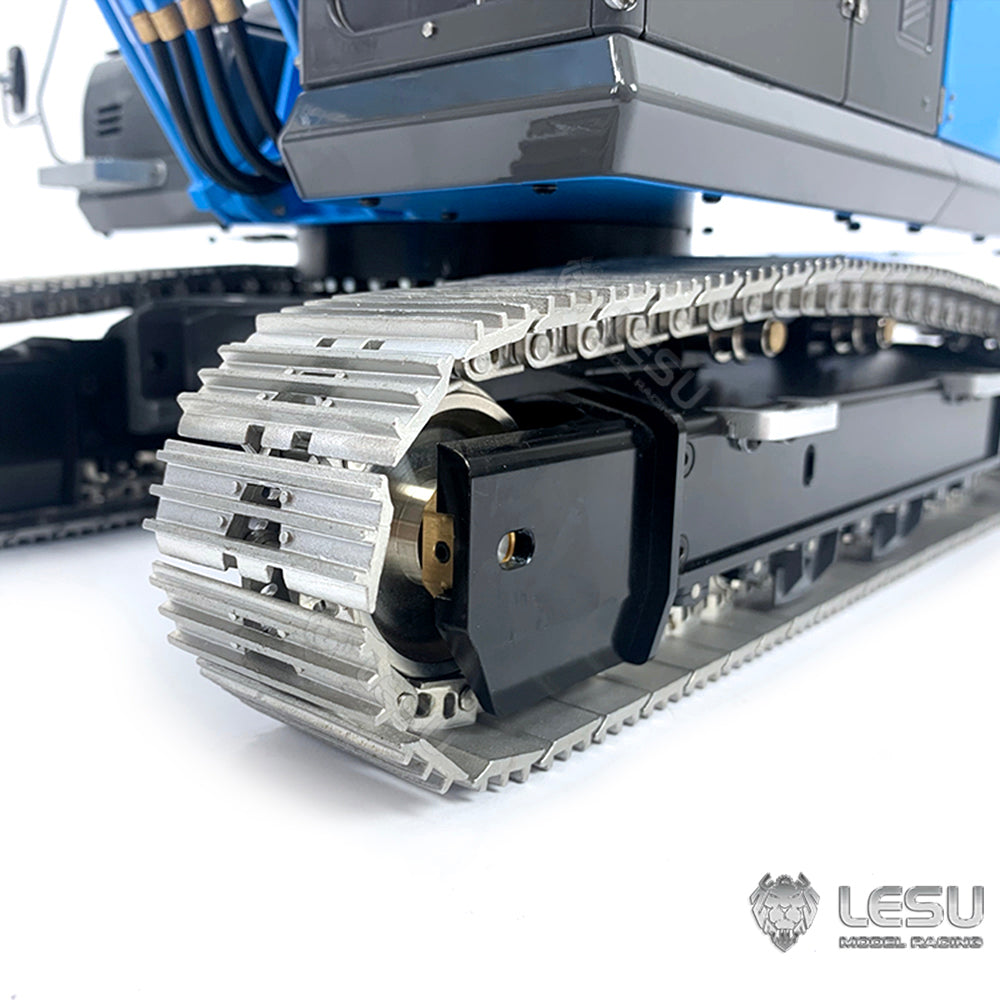

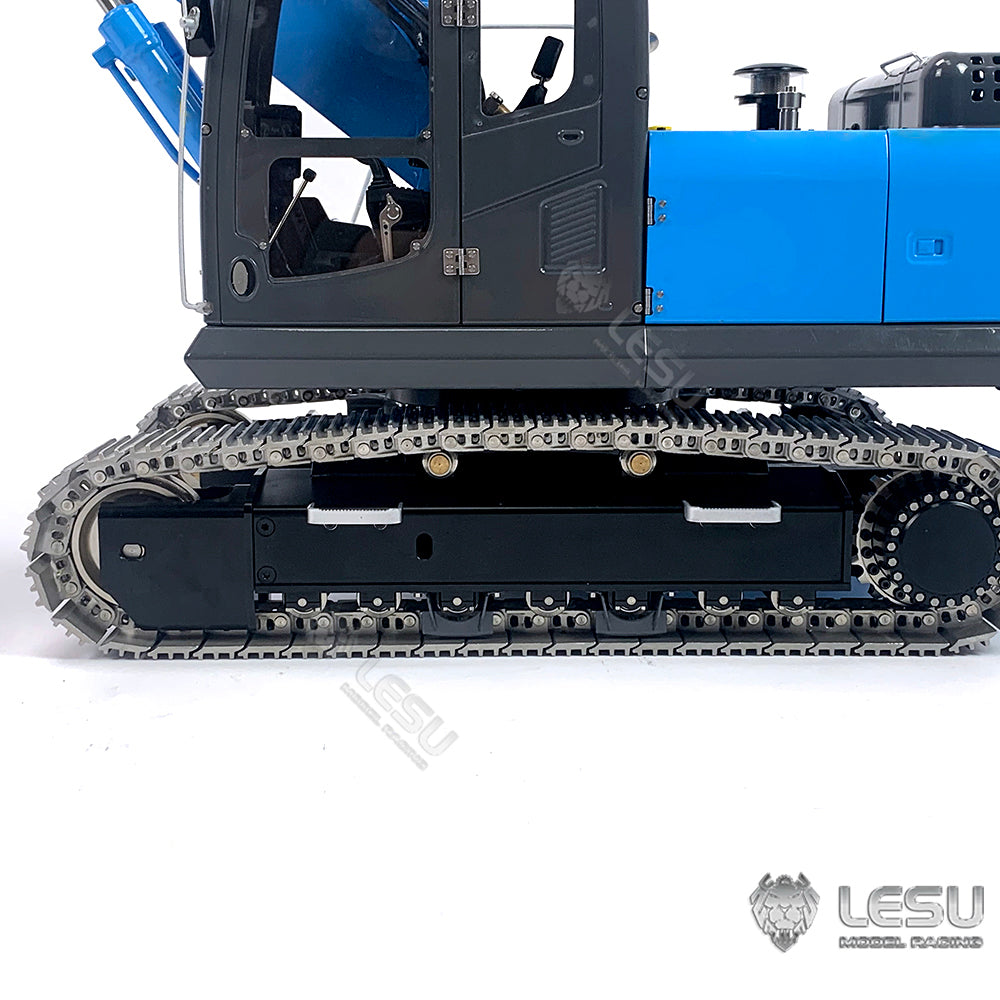

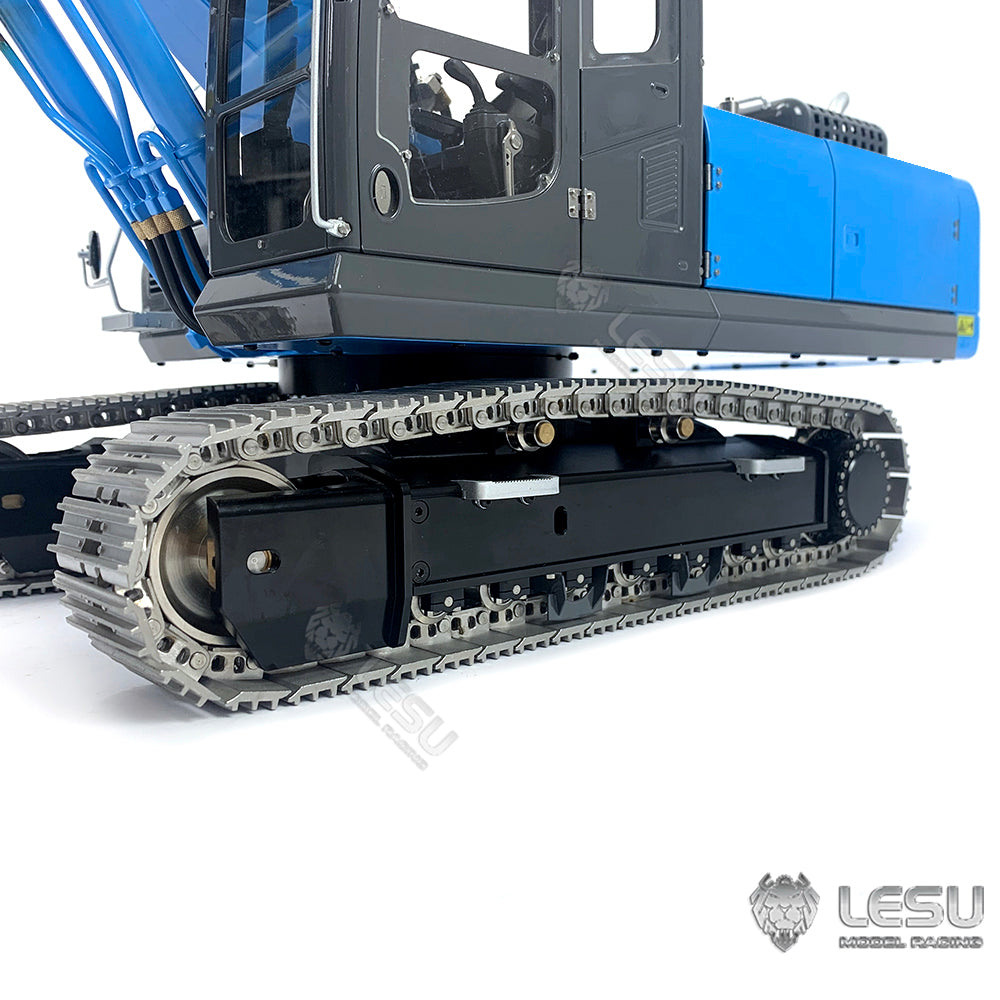

The total length of track/mm: 328.6
Wheelbase (center distance between the drive wheel and idler wheel)/mm: 260
Ground clearance at the bottom of X-frame/mm: 29
Minimum turning radius/mm: 238.7
Maximum digging height/mm: 880.7
Rotation speed (r/mim): 10
Slewing drive reduction ratio: 1:20
Rotating motor speed (r/min): 1500
Maximum pressure of hydraulic workstation/mpa: 4
Rated pressure of hydraulic workstation/mpa: 3
Maximum unloading height/mm: 636.5
Maximum digging depth/mm: 488.2
Maximum digging radius/mm: 791.7
Maximum digging radius on the ground/mm: 761.7
Track Gauge/mm: 187
Track width/mm: 43
Total width of excavator/mm: 244.5
Traveling drive wheel speed (r/mim): 48
Travel drive reduction ratio: 1:139
Traveling motor speed (r/min): 12000
Number of reversing valves: 7
Number of hydraulic pumps: 1

If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
