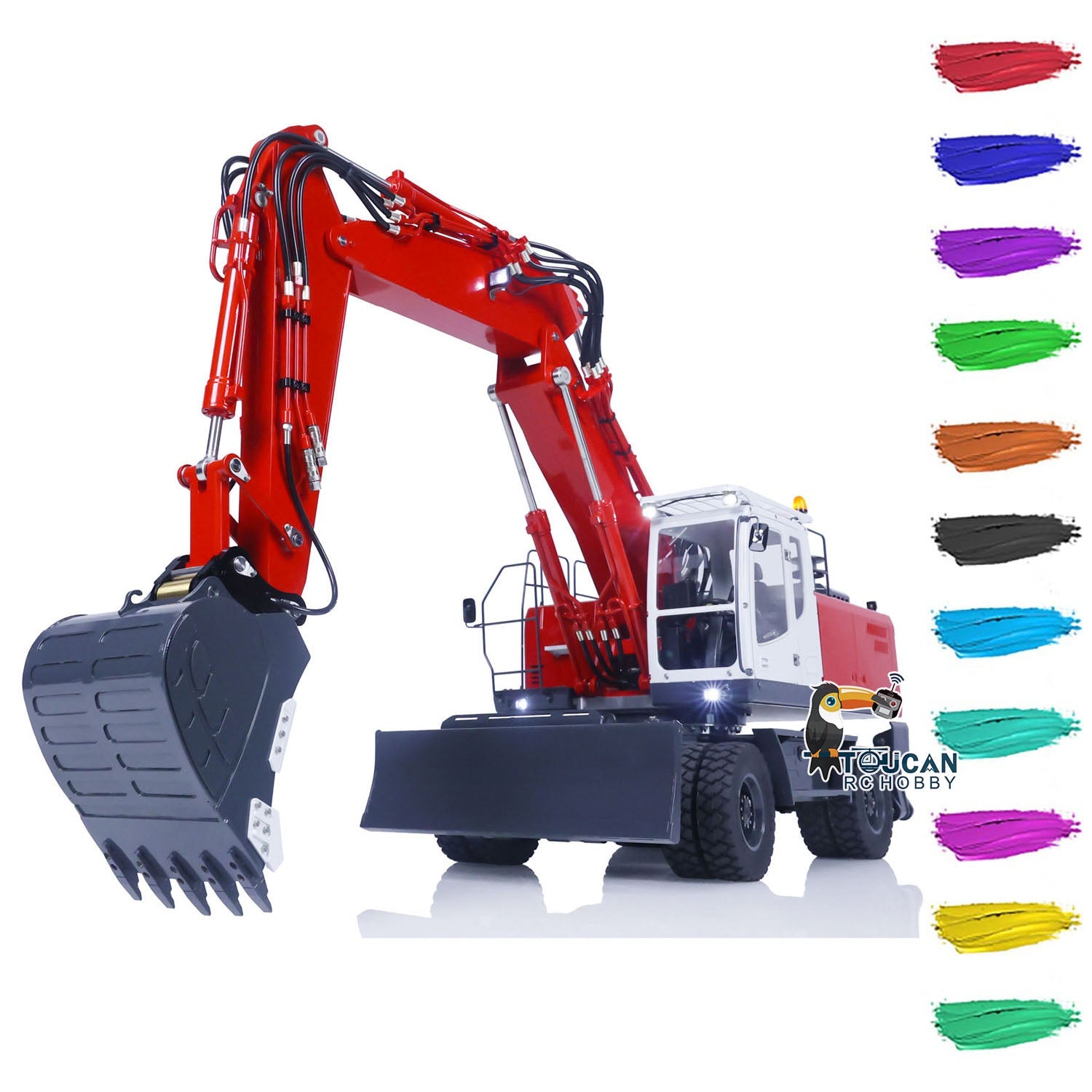

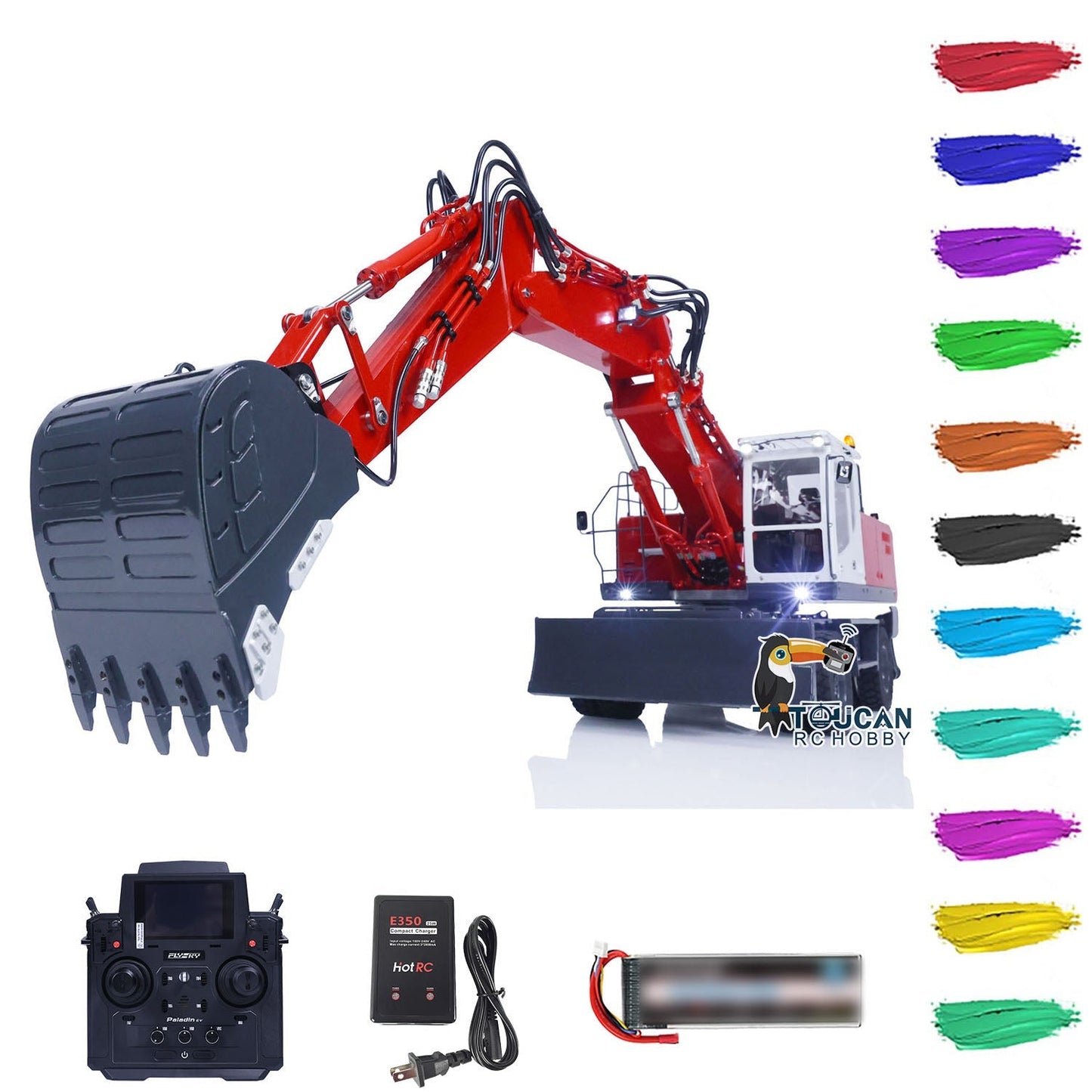

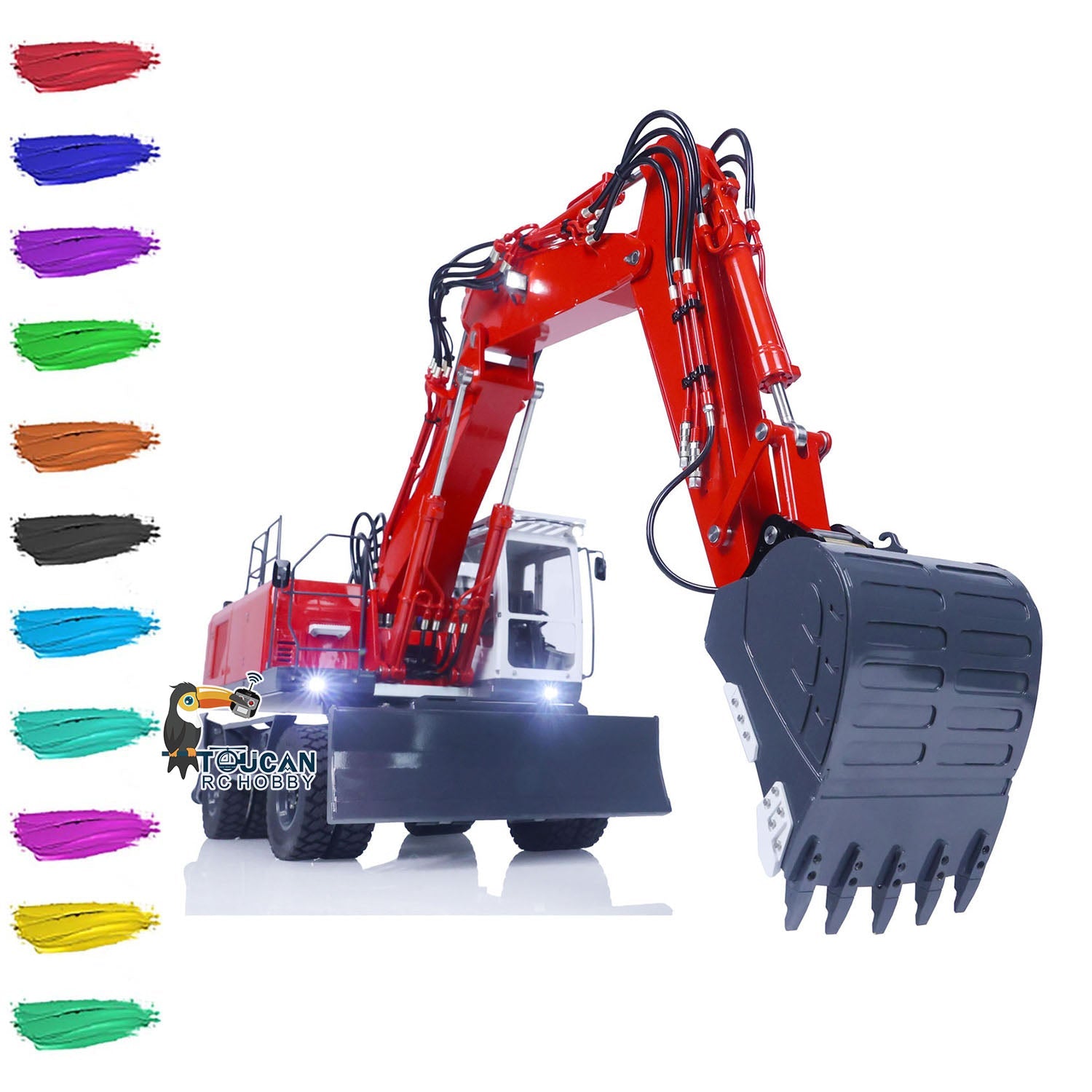

LESU 3 Arms 1/14 RC Hydraulic Equipment ET30H Remote Controlled Excavator Wheeled Digger Painted Assembled Optional Versions

LESU 3 Arms 1/14 RC Hydraulic Equipment ET30H Remote Controlled Excavator Wheeled Digger Painted Assembled Optional Versions

LS-RD-A0006-3Arms-UP1-PNP-PAINTING-RGYW-CX-SPF8

$4,000.90 USD
$4,909.90 USD $4,000.90 USD
Sale Sold out
Package Included
Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Scale: 1/14
Material: Stainless Steel, Aluminium Alloy, Brass, Plastic
Color: Red, Grey, White
ID: LS-RD-A0006-3Arms-UP1-PNP-PAINTING-RGYW

?

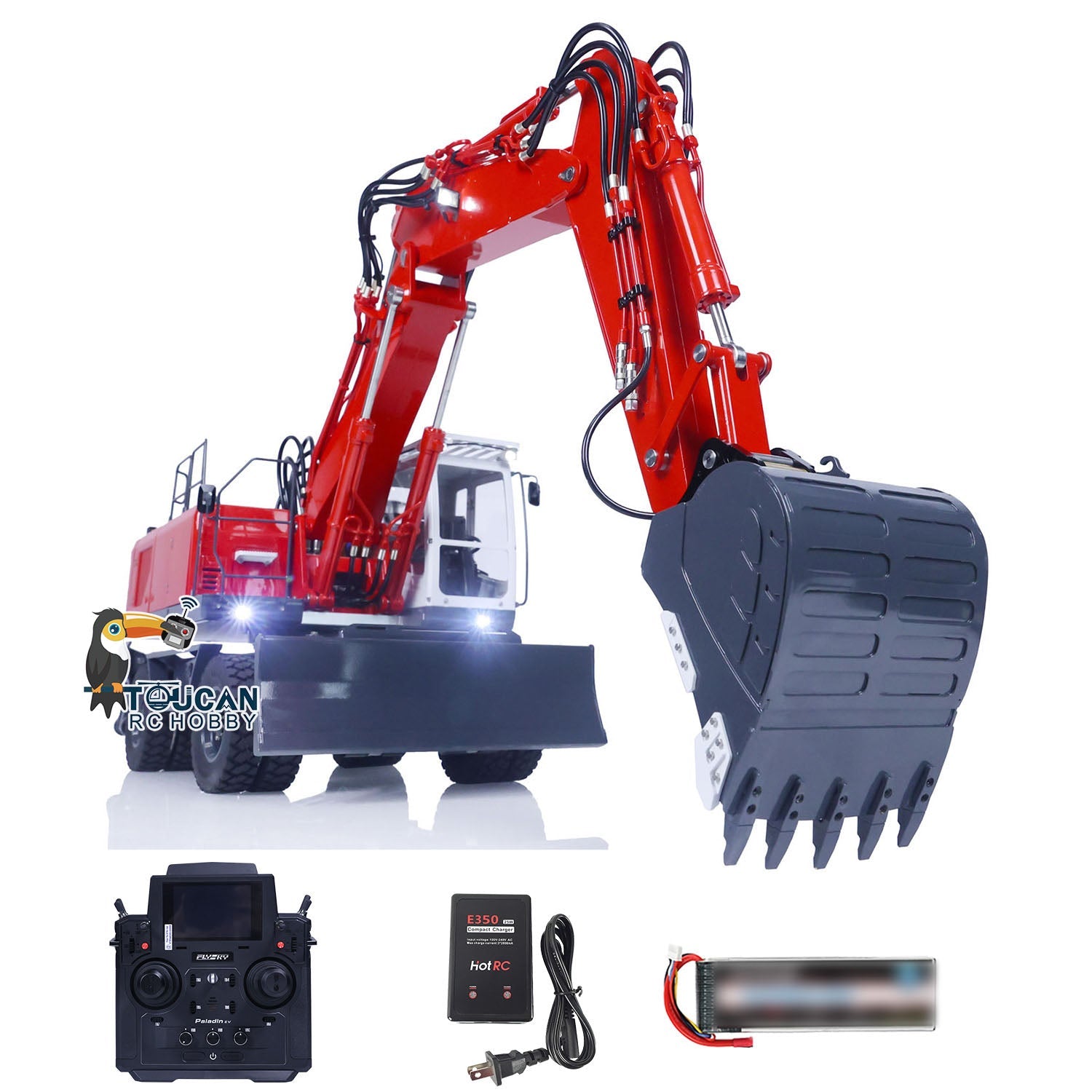

The Package Includes:
1/14 RC Hydraulic Excavator Model
ESC
Motor
Servo
Hydraulic System with 7-way and 2-way Reversing Valve
Light System

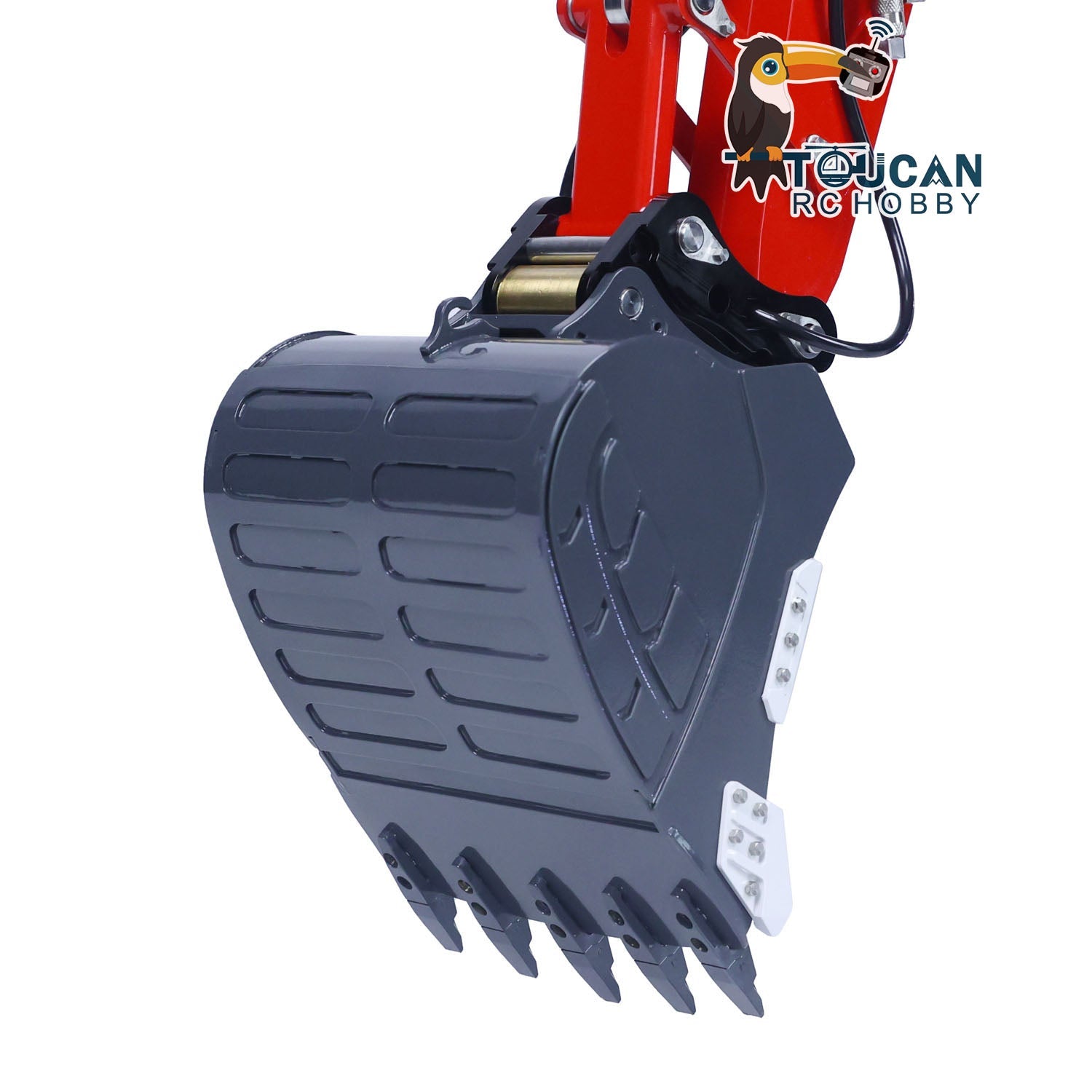

Quick Release Coupler
Quick Connector for Oil Pipeline
Cabin Top Protective Grille and Rotating Light

There are some attachments for optional upgrade, the package option is selected by yourself.
RC Controller and Receiver
Charger
Battery

The Package Does Not Include:
Sound System
Hydraulic Oil

Features:

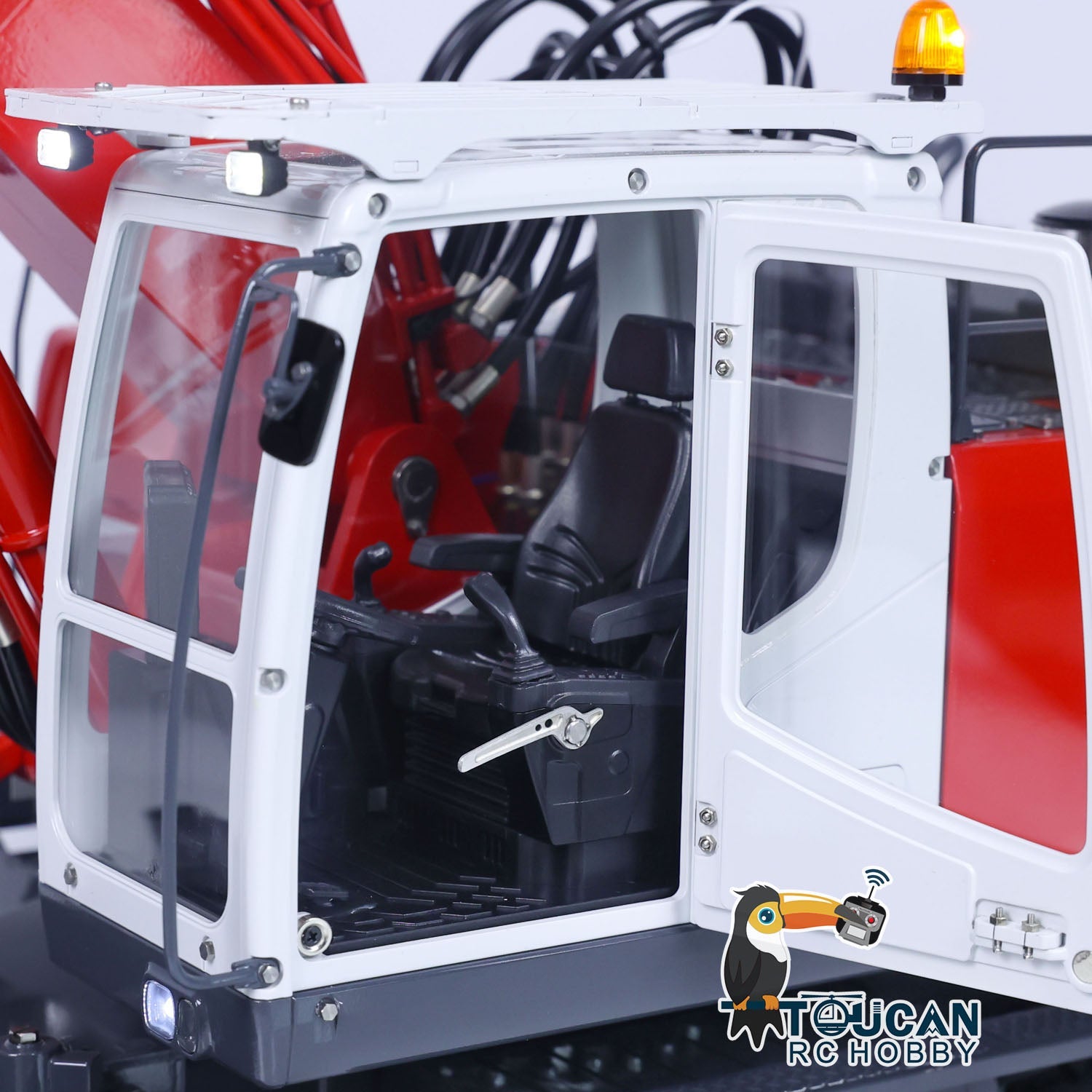

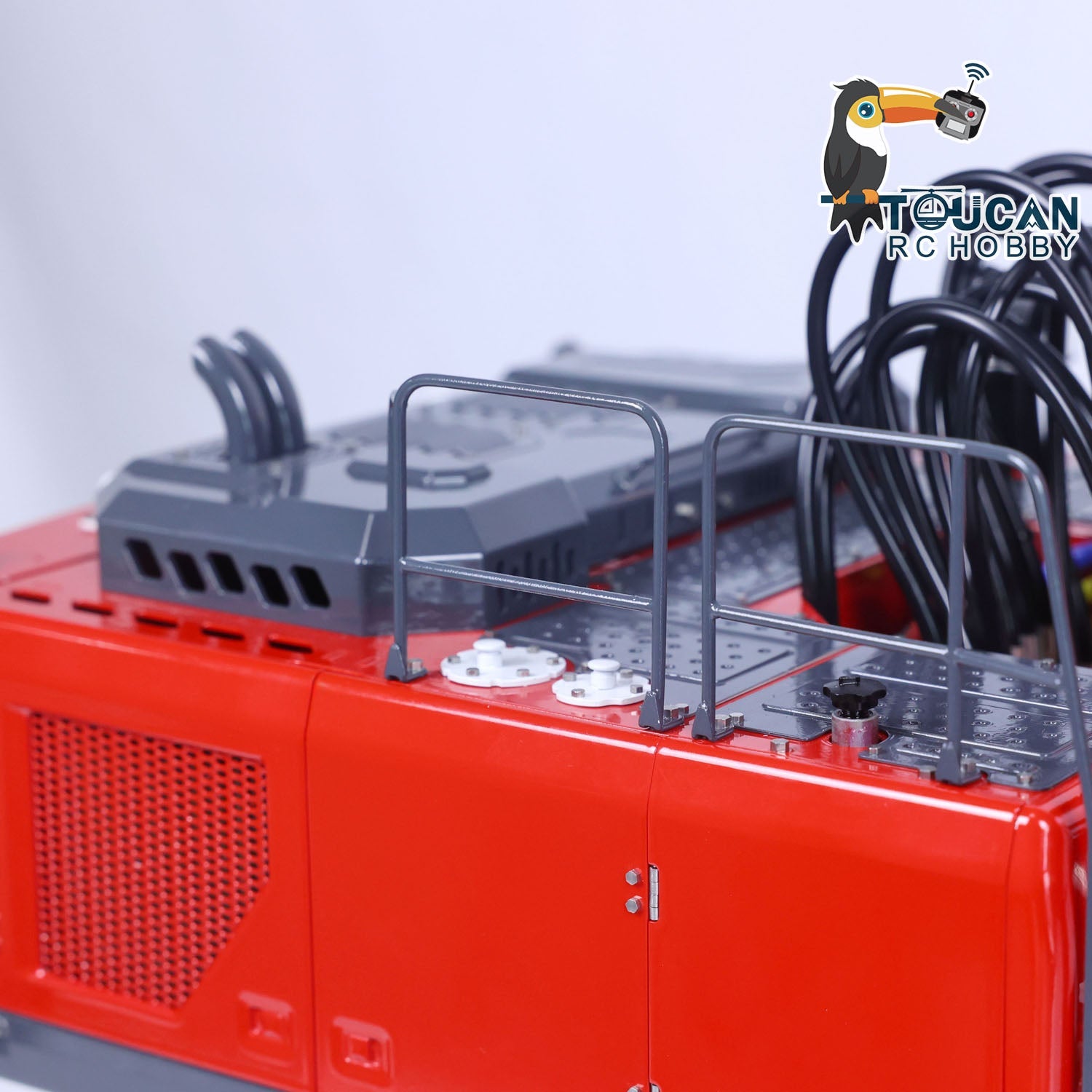

1. Material: The excavator model's chassis is constructed from sturdy stainless steel through welding, while the shell is precision CNC manufactured. The interior of the driver's cabin features high-quality molded plastic detailing.

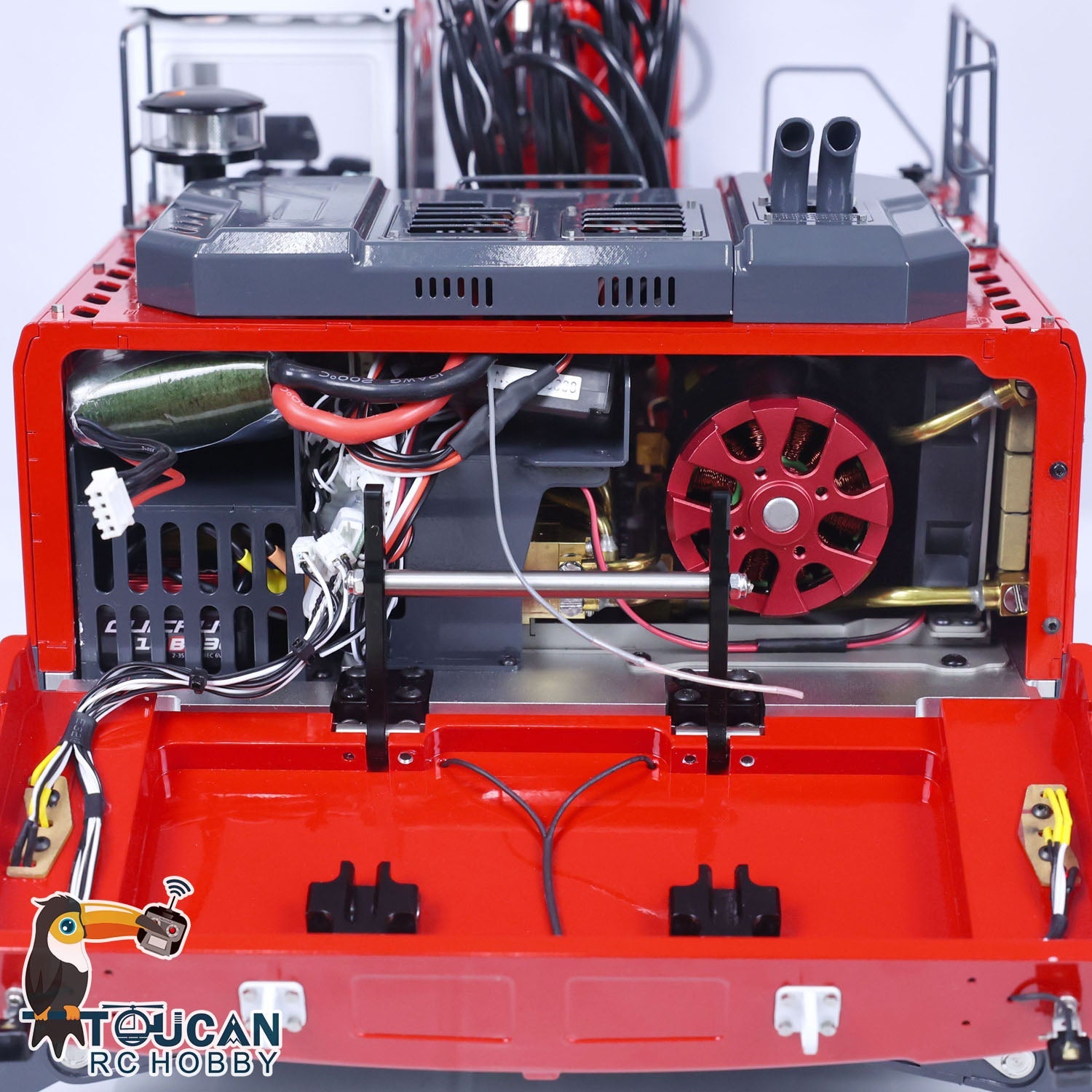

2. Electronic Speed Controllers: Equipped with a 30A brushless ESC for the walking motor, a 120A brushless ESC for the pump motor, and a 320A brushed ESC for the rotating motor.
3. Hydraulic Pump: Utilizes a LESU high-pressure pump with a rated pressure of 8 MPa and equipped with a relief valve. Pressure can be adjusted according to the vehicle's requirements. Rated flow of 400ml/min.
4. Directional Valves: Incorporates a 7-way directional valve along with an additional 2-way directional valve. The 7-way valve controls the excavator's main arm, middle arm, small arm, bucket, and hydraulic quick coupler. The remaining 2-way valve can be used for hydraulic upgrades. The 2-way valve is used for the front dozer blade and rear hydraulic stabilizer legs.
5. Lock Valve: Controls the swing cylinder of the front axle, enabling control of hydraulic fluid circulation and cutoff.
6. Hydraulic Slip Ring: Facilitates smooth oil supply to the support legs for unhindered upper body movement of the excavator.
7. Precision Cylinders: CNC precision manufacturing with laser welding, resulting in both practical and aesthetically pleasing cylinders.
8. Rotation Motor: Offers 360-degree rotation, enhancing playability during operations.
9. Metal Power Axles: Equipped with front and rear axles featuring differential locks for ample power. Steel gears ensure durability and extended playability, with robust load-bearing capacity.

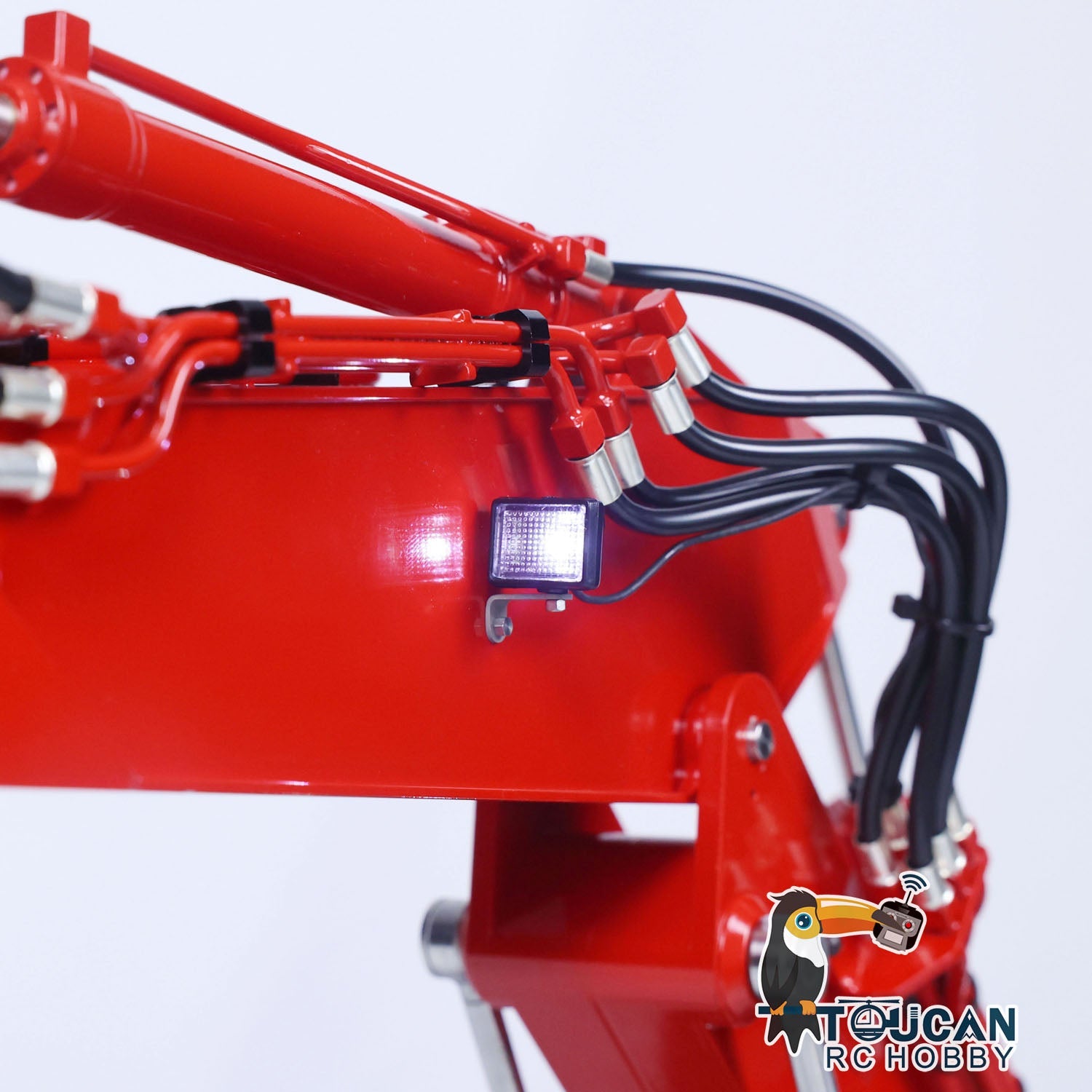

10. Lighting System: Comes with lighting components, including low beam headlights, front and rear turn signals, reverse lights, and powerful floodlights for the main arm.

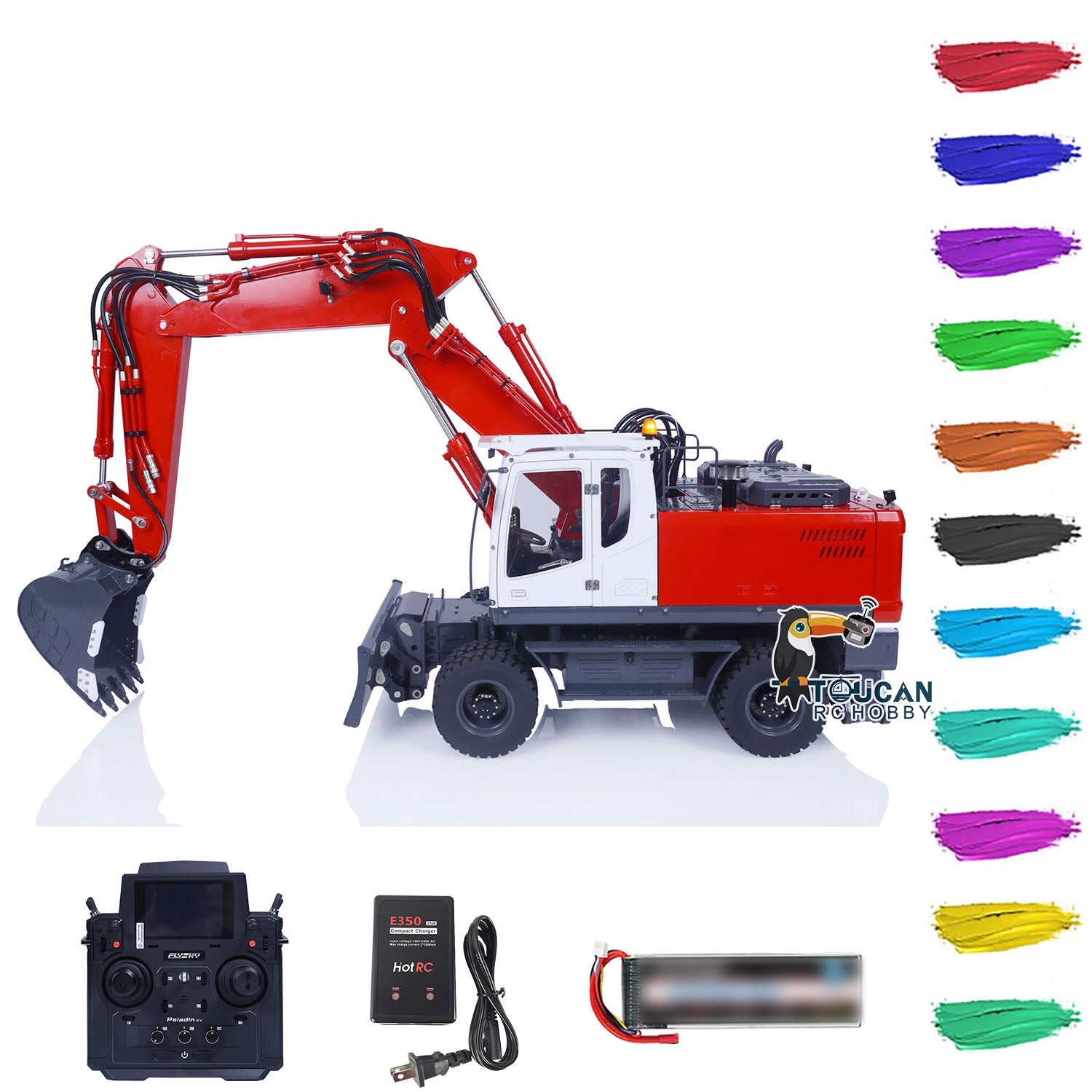

11. Enhanced Flexibility: Modified from a two-section arm to a three-section arm, providing more flexible operational capabilities.

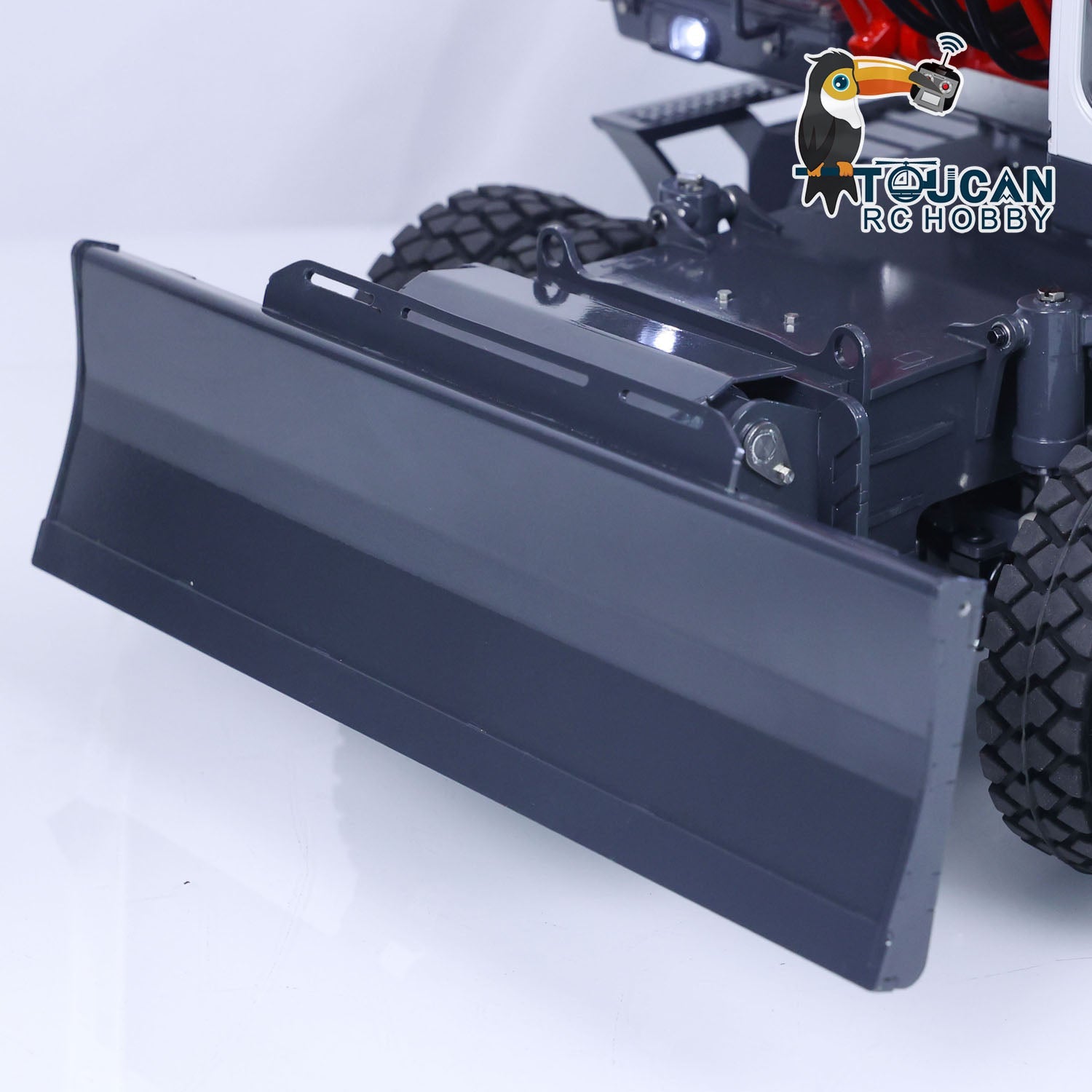

12. Enhanced Functionality: Replaced the original front stabilizer legs with a front dozer blade, augmenting the excavator's versatility and playability.

If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
