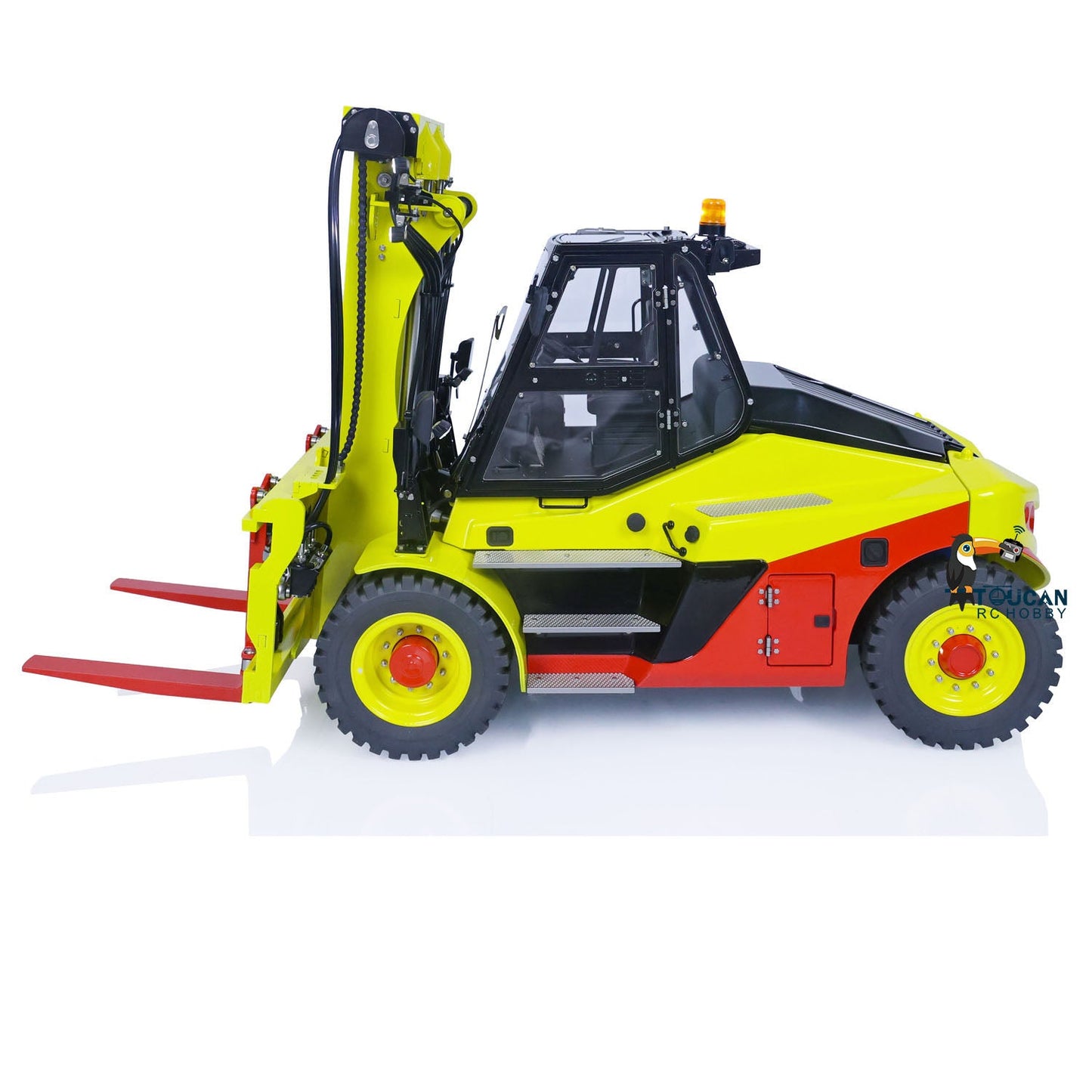

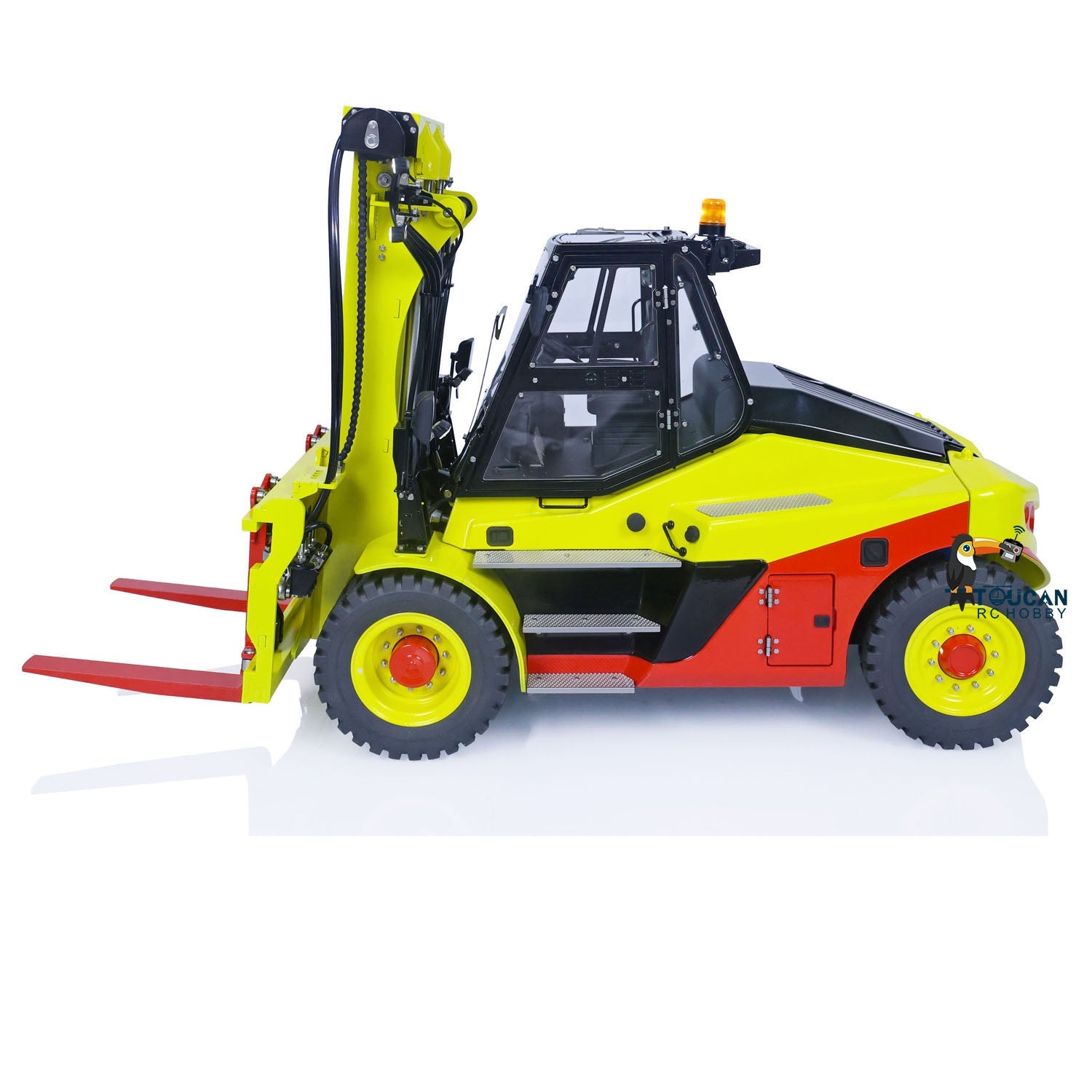

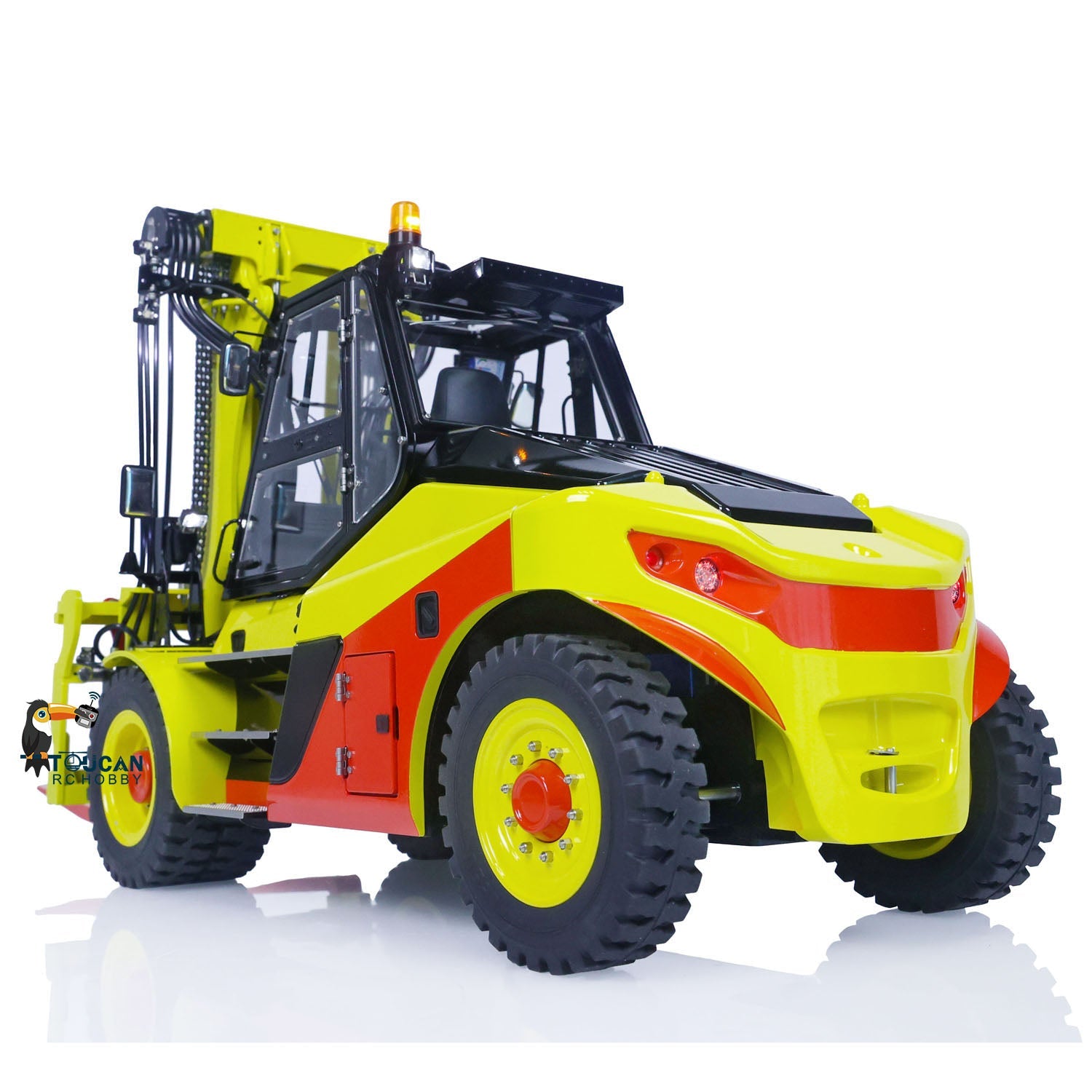

1:14 LESU Pianted Metal RC fork Lift Remote Control Truck Hydraulic Models LD160S Sound Light System ESC Servo

1:14 LESU Pianted Metal RC fork Lift Remote Control Truck Hydraulic Models LD160S Sound Light System ESC Servo

LS-RD-A0014-RTR-PAINTING-LYBKR-SPF8

$2,796.90 USD
$2,796.90 USD
Sale Sold out
Package Included

Specification:
Manufacturer: LESU
Item condition: New, Assembled and Painted.
Scale: 1/14
Material: Metal, Plastic
Car Shell Material: aluminum alloy+stainless steel (door can be opened)
Size: 464*192*269mm
Drive Type: front-wheel drive
Wheelbase: 235.3mm
Axle reduction ratio: 1:3
Front-wheel specification/mm: diameter 82 * width 46
Rear wheel specification/mm: diameter 82 * width 46
Maximum pressure of hydraulic workstation/mpa: 3.5
Rated pressure of hydraulic workstation/mpa: 3
Motor speed (r/min): 196; 12V

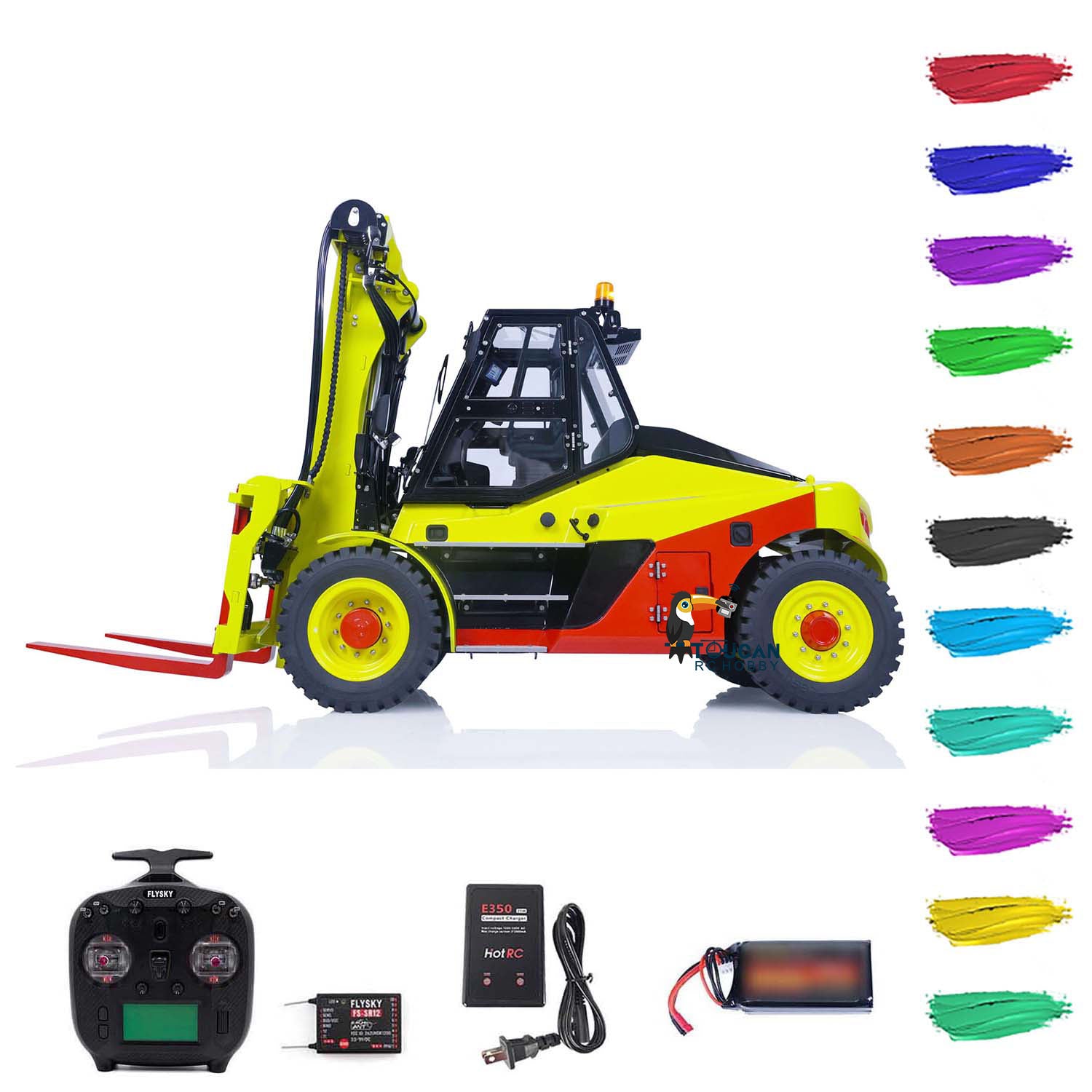

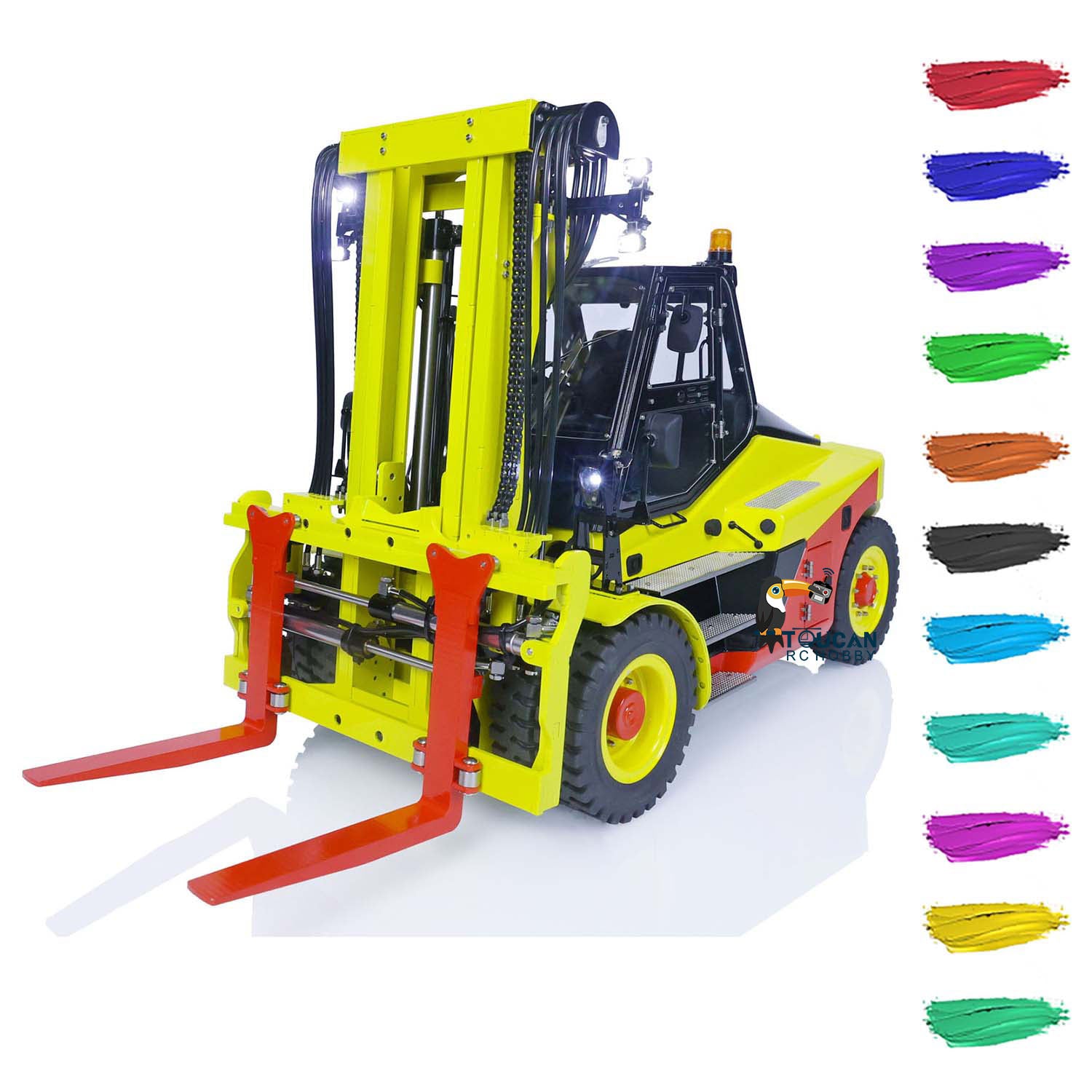

Color: Citrine(Lemon Yellow), Black, Orange-red
ID: LS-RD-A0014-RTR-PAINTING-LYBKR

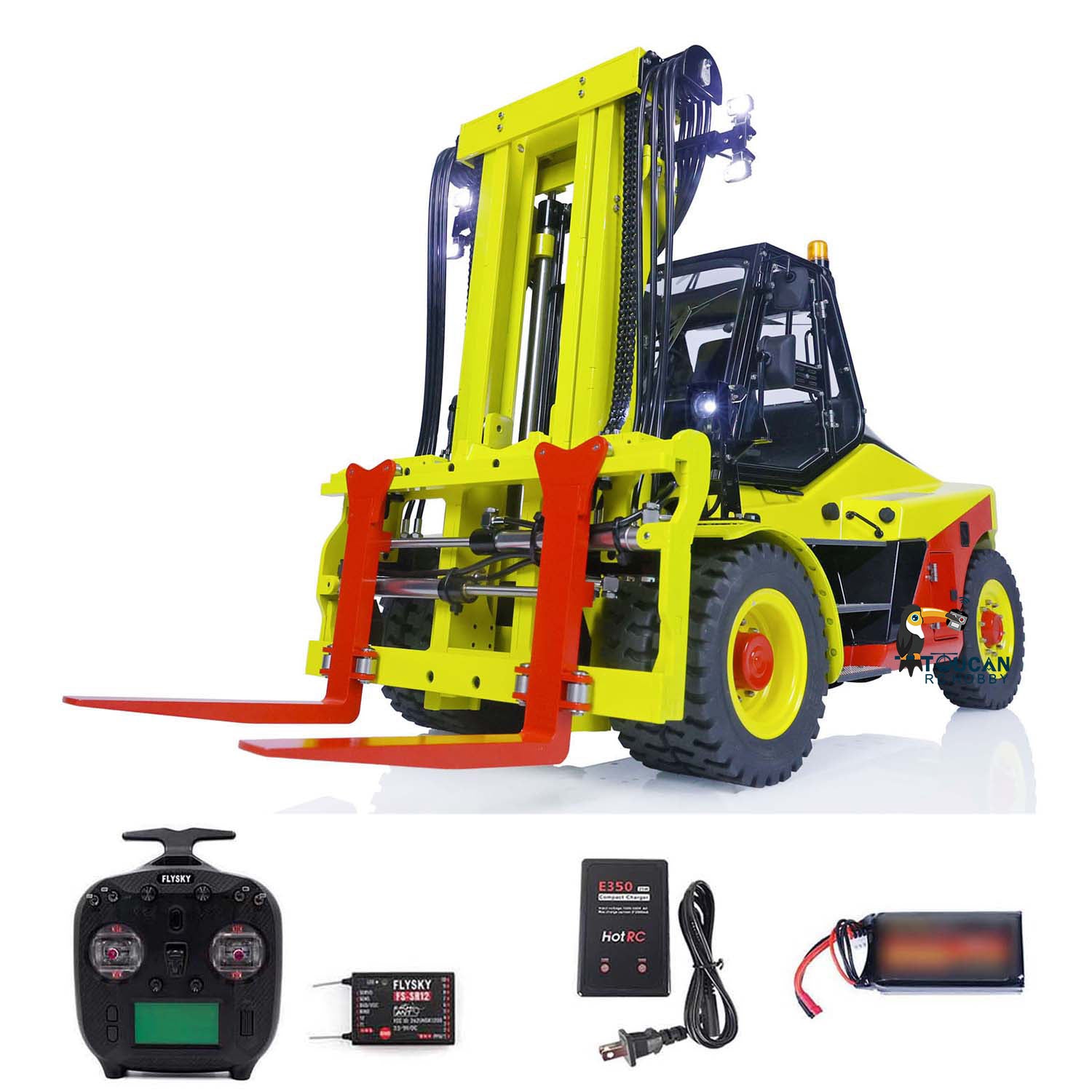

The package includes:
1/14 RC Hydraulic Forklift Model
ESC
Motor
Servo
Hydraulic System (With 6CH Reversing Valve)
Light System
Sound System

There are some attachments for optional upgrade, the package option is selected by yourself.
Battery
RC Controller and Receiver
Charger

The Package Does Not Include:
Hydraulic Oil

Features:
1. Metal CNC shell
2. Front-wheel drive, built-in differential of the front axle.
3. Rear steering axle with suspension.
4. Precision hydraulic system: more coordinated, smooth and linear action.

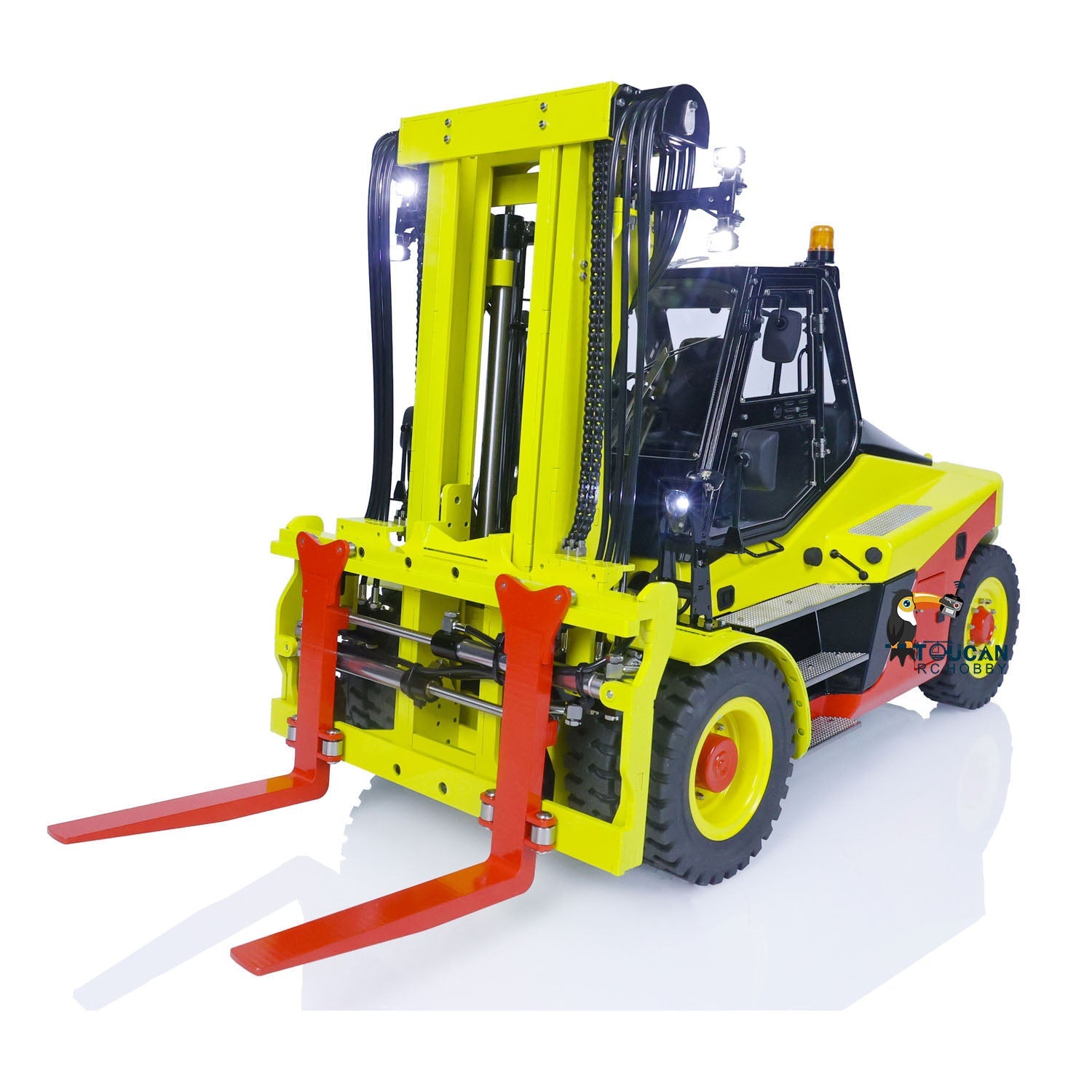

5. Hydraulic front fork and hydraulic gantry.
6. Front fork width is adjustable.
7. 6-way reversing valve hydraulic system, the reserved 2-way reversing valve can use a variety of upgraded parts.

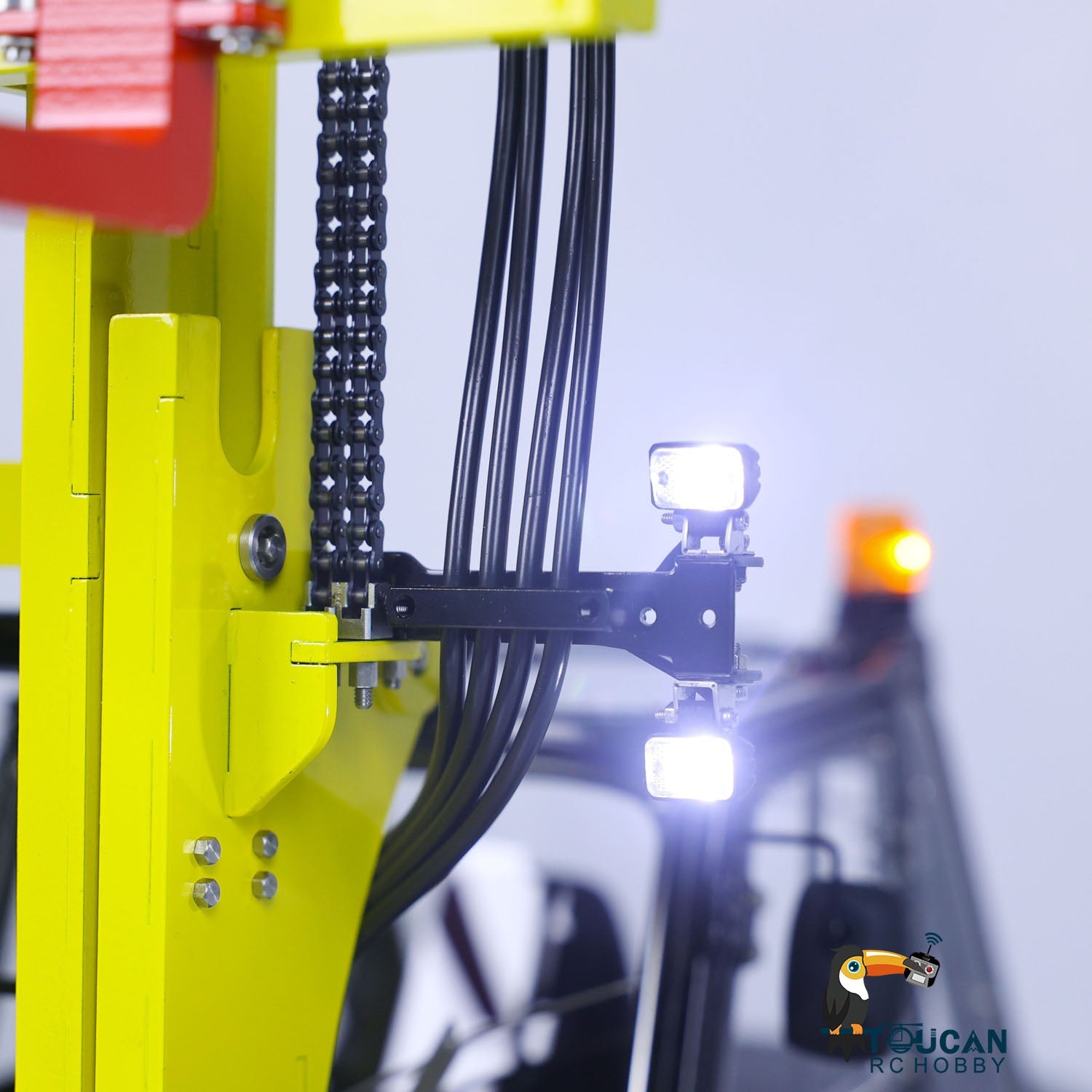

8. Double-row precision simulation chain, which is more stable and reliable.
9. Door can be opened.
10. The body rear is attached with a towing hook.

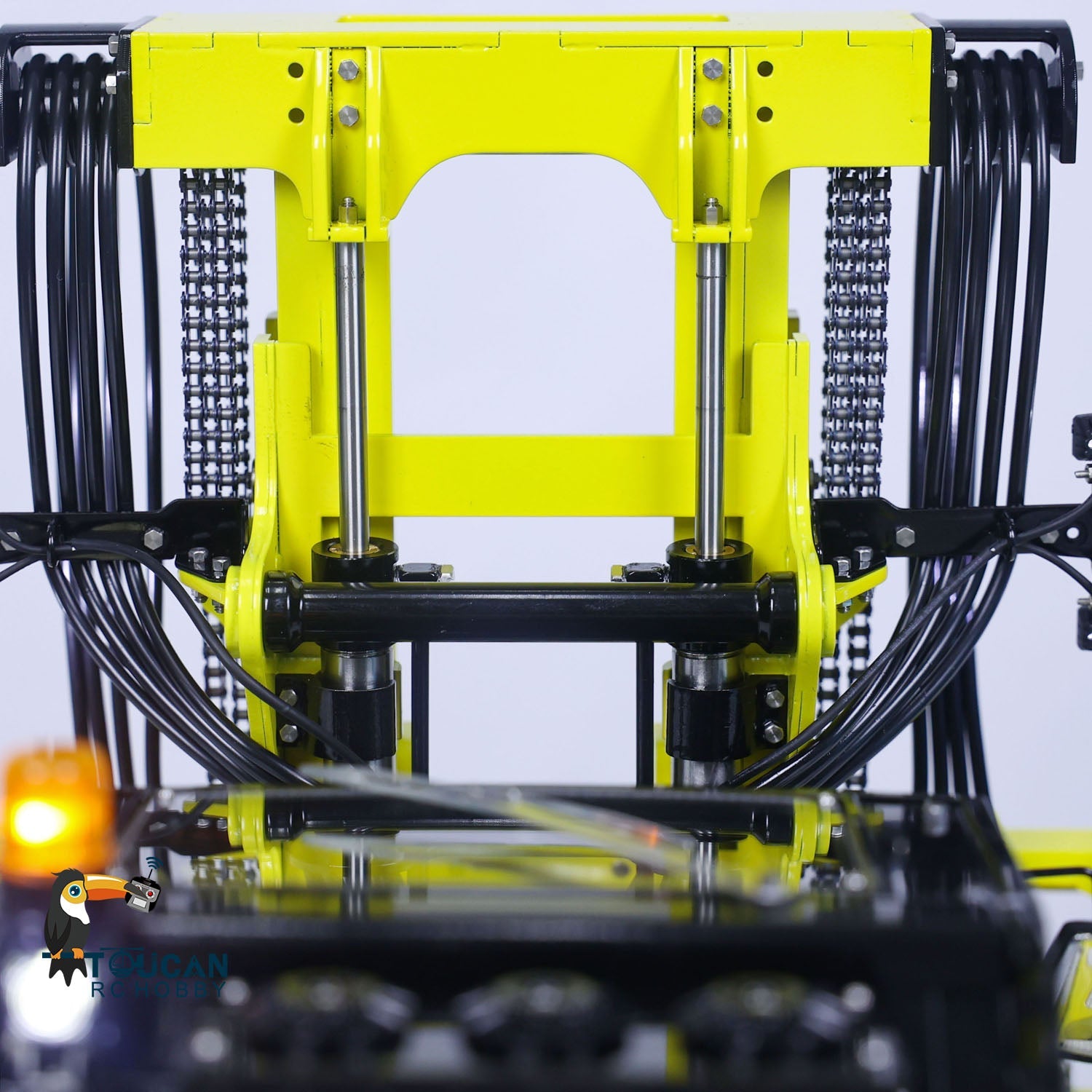

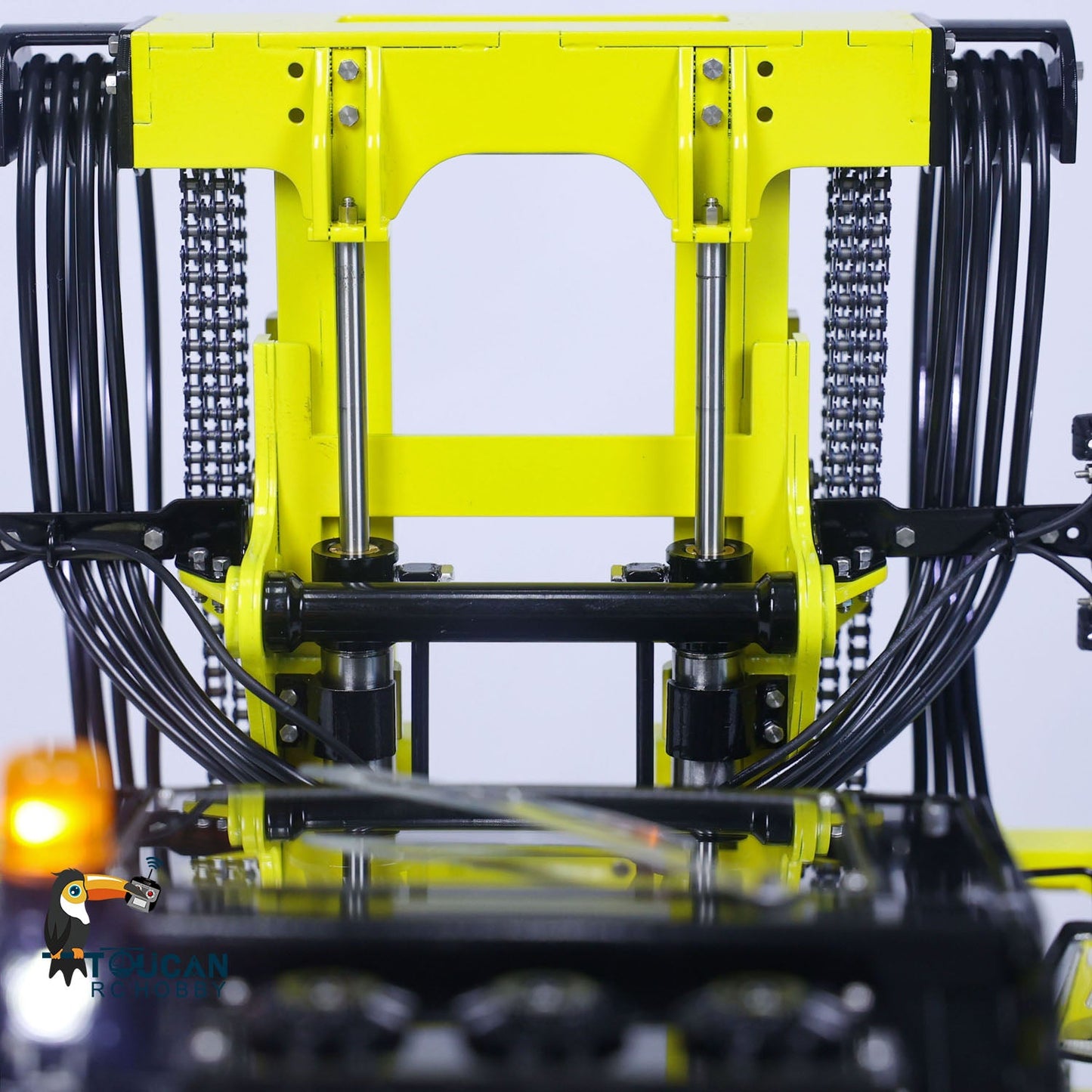

11. The gantry is equipped with a built-in bearing, which makes the action more coordinated, smooth, stable and reliable.

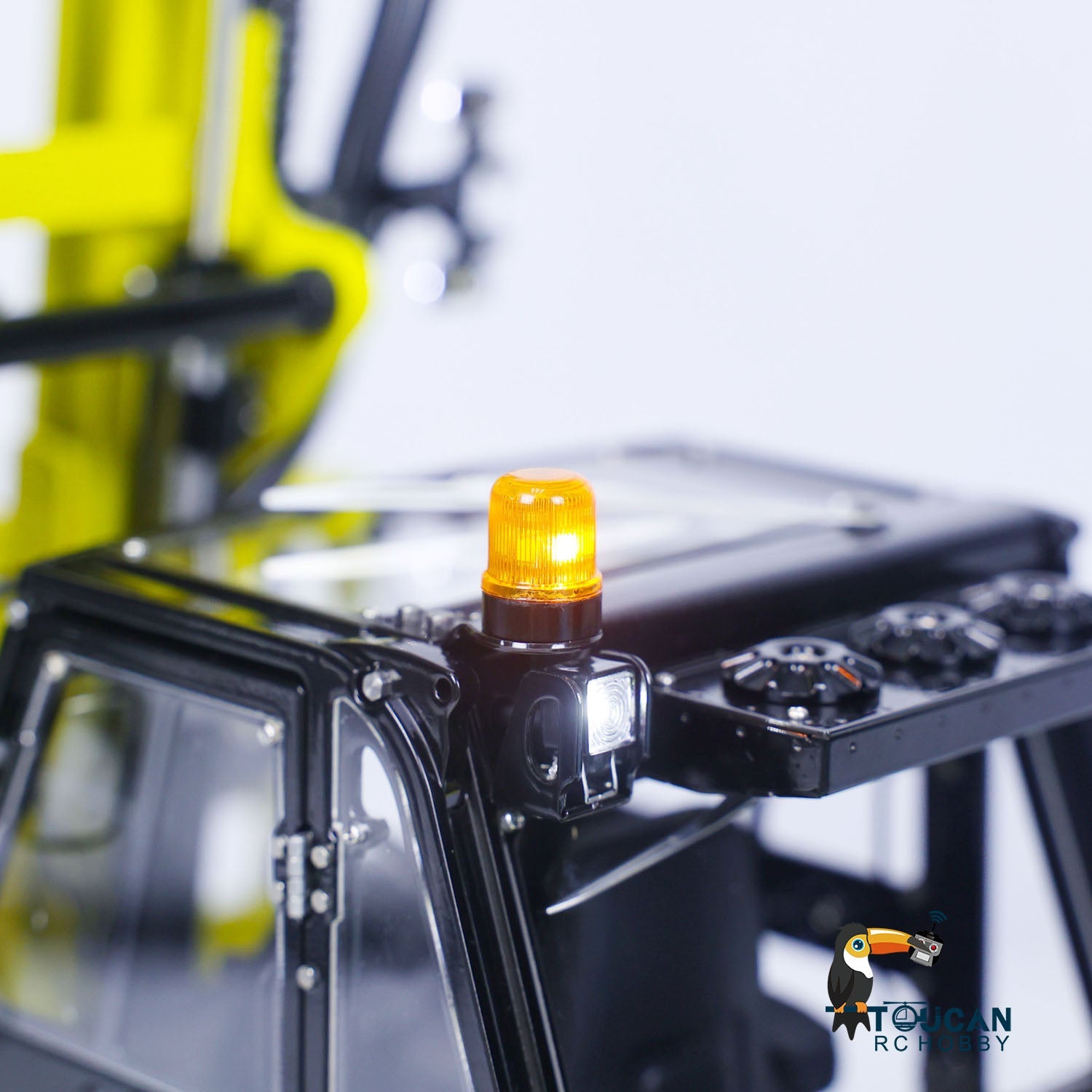

12. High simulation light and sound system.

Parameters (unit: mm):
A. Height from the top of the cockpit to the ground: 235.9
B. Maximum height of expansion frame from the ground: 405
C. Body length: 325.4
D. Wheel base of tire: 235.3
E. Maximum height of lifting front fork: 301.7
F. Body width: 192
G. Maximum lateral extension distance of front fork: 152.4
H. Maximum one-way extension distance of front fork: 59
I. Minimum ground clearance: 15
J. Tyre center distance: 133.3
K. Distance between front fork and drive wheel center: 78.1
L. Gantry height: 269
M. Rear hatch cover ground clearance: 152.6
N. Front fork thickness: 5
O. Minimum pivot point distance: 100
P. Turning radius: 330
Q. Maximum distance from rear wheel suspension to the ground: 3

If you have any questions or are not sure whether it is the correct item that you want, pls feel free to contact me before purchasing.
