LESU 1/14 4X4 Metal RC Hydraulic Loader KIT Aoue WA100M-8 Radio Control Construction Car Model Sound Light 4CH Valve Axle Differential Lock Unassembled

LESU 1/14 4X4 Metal RC Hydraulic Loader KIT Aoue WA100M-8 Radio Control Construction Car Model Sound Light 4CH Valve Axle Differential Lock Unassembled

LS-RD-A0021-KIT-CX-SPF8

$1,494.90 USD
$1,896.00 USD $1,494.90 USD
Sale Sold out

#Specification:
Manufacturer: LESU
Manufacturer: LESU

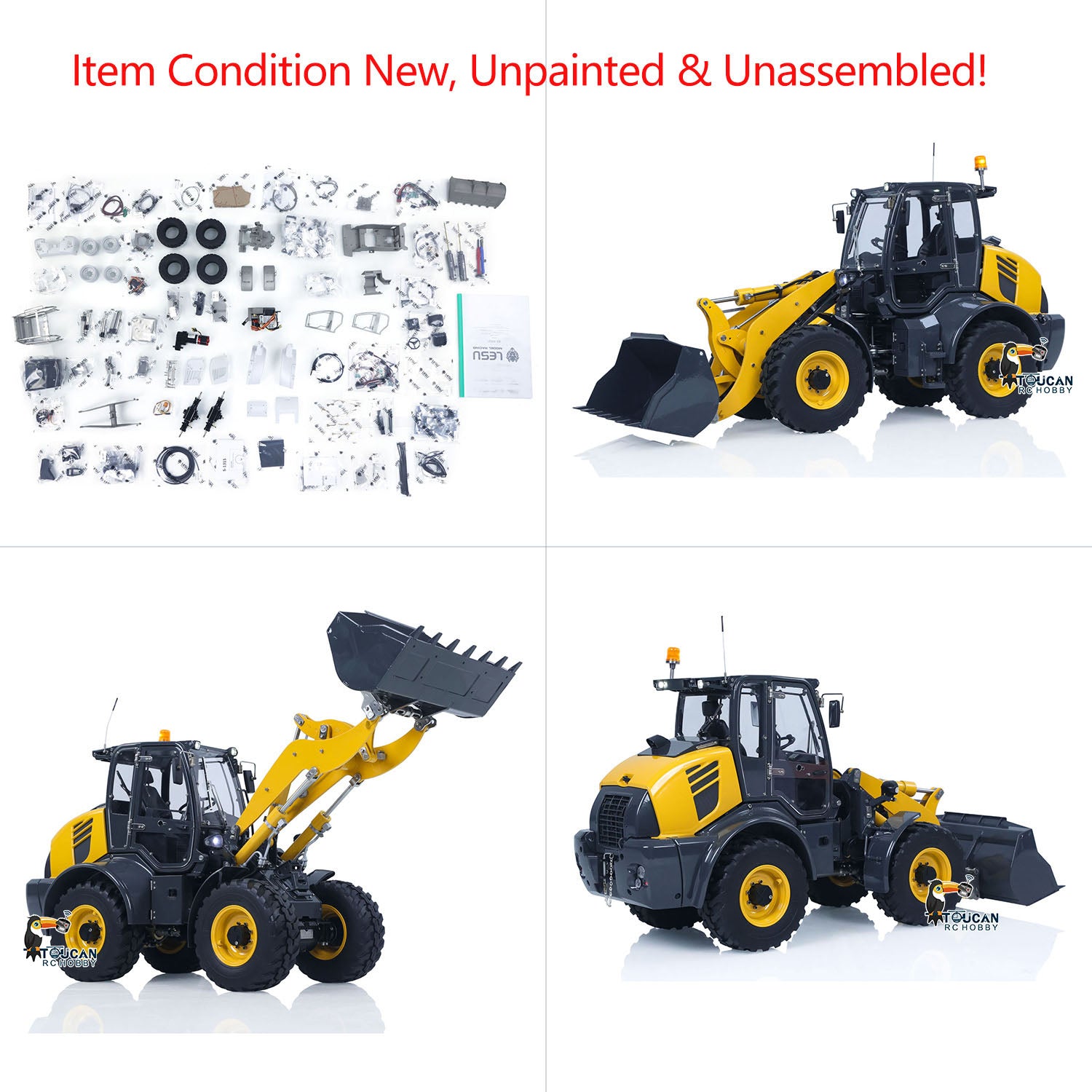

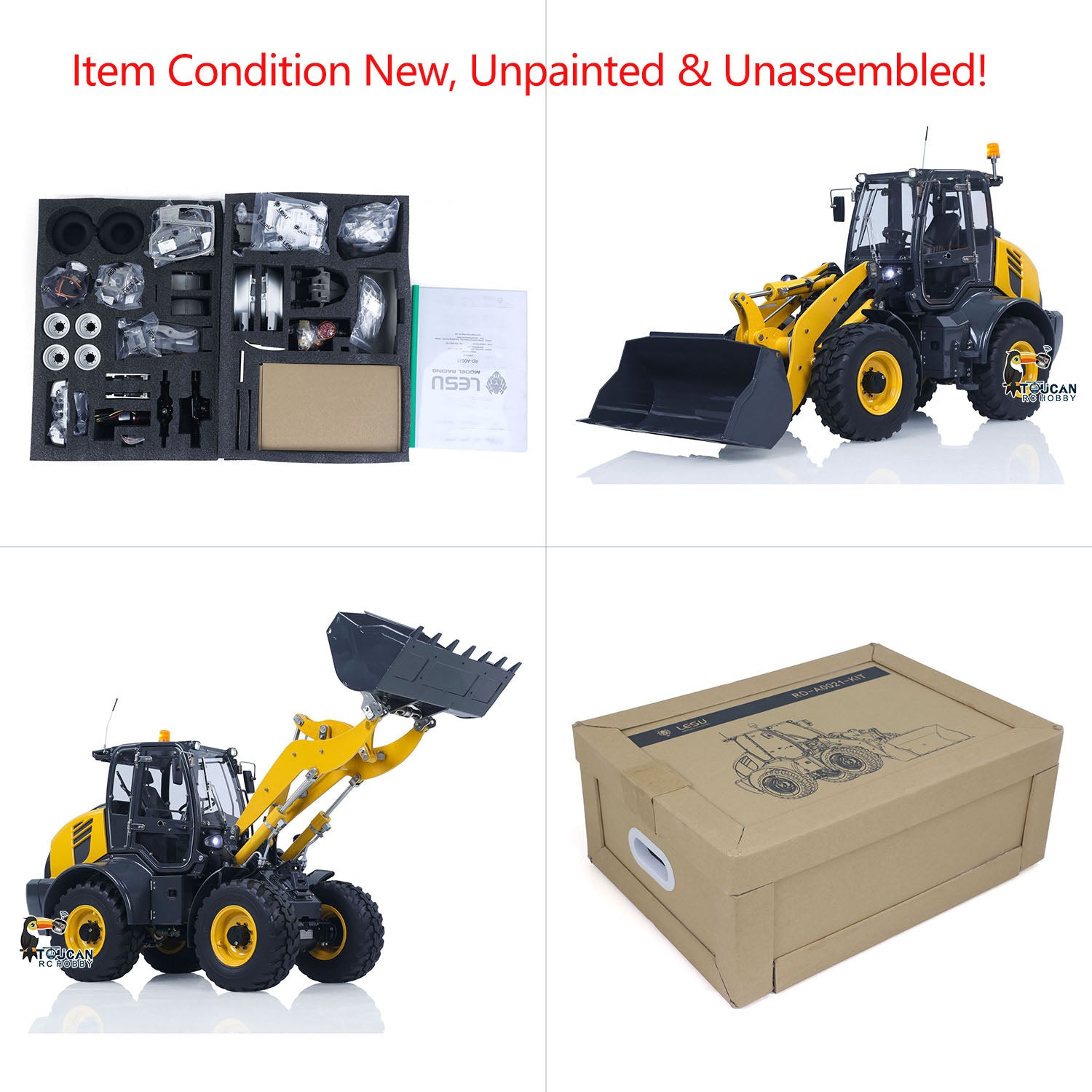

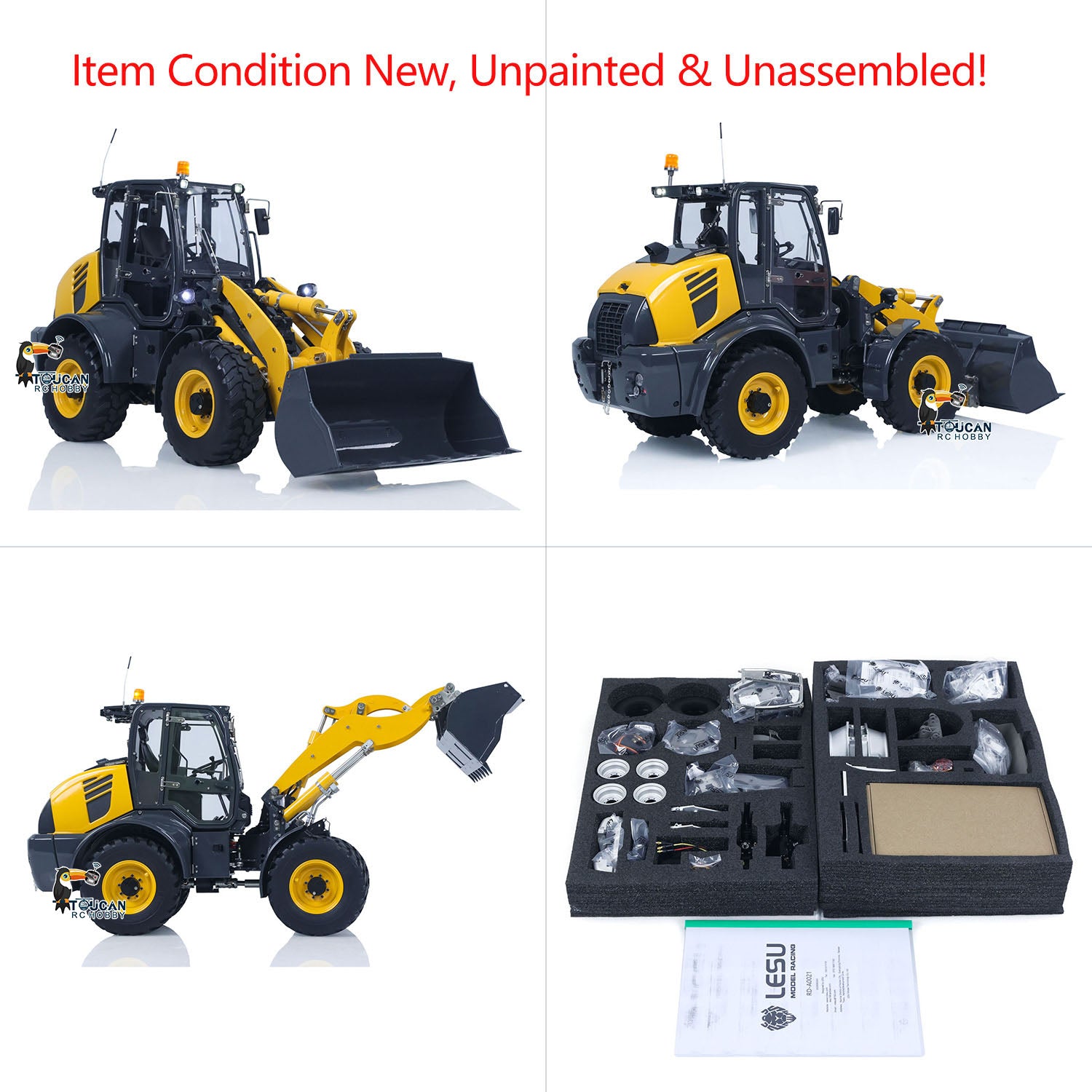

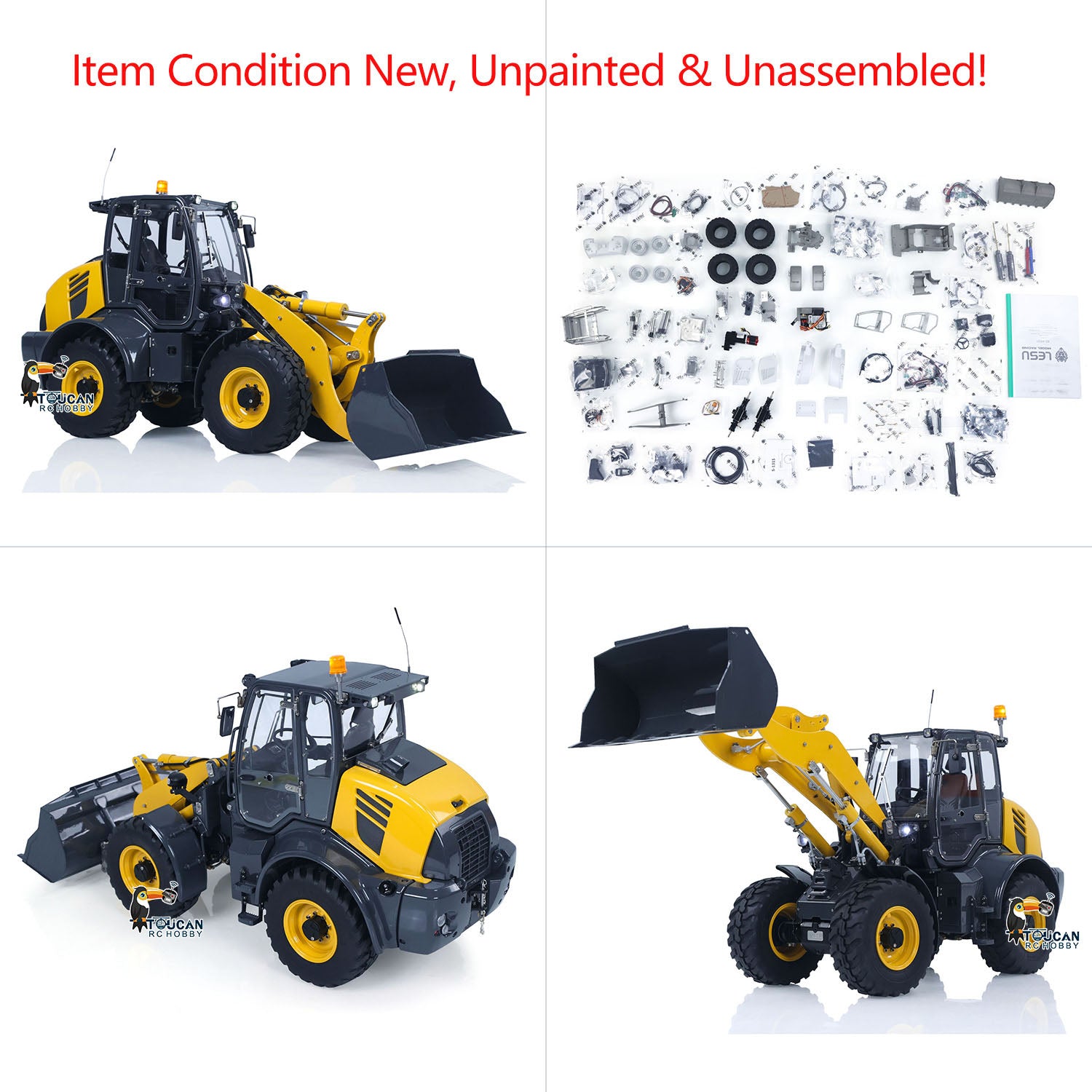

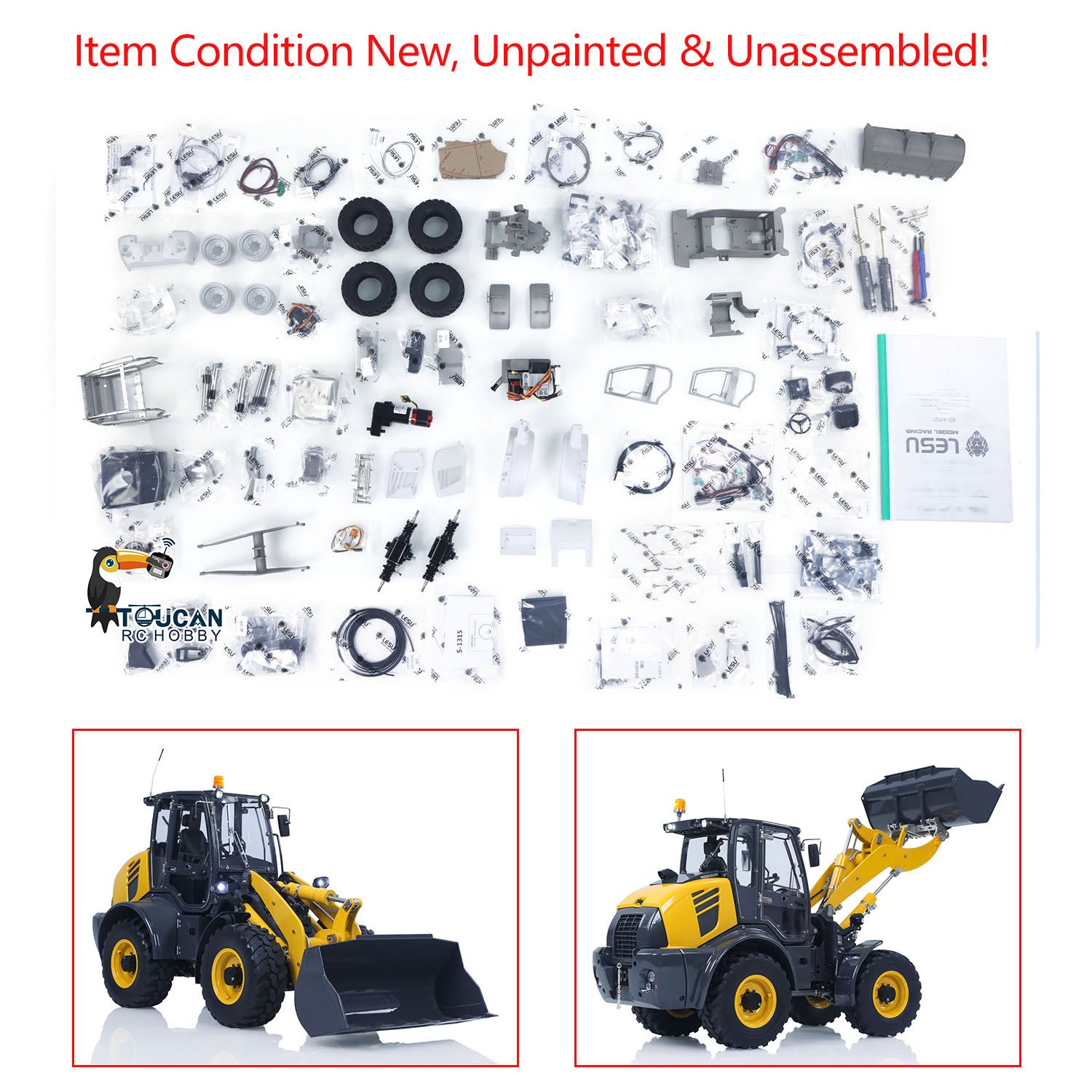

Item Condition: New, Unpainted and Unassembled
Scale: 1/14
Material: 95% Metal, Plastic

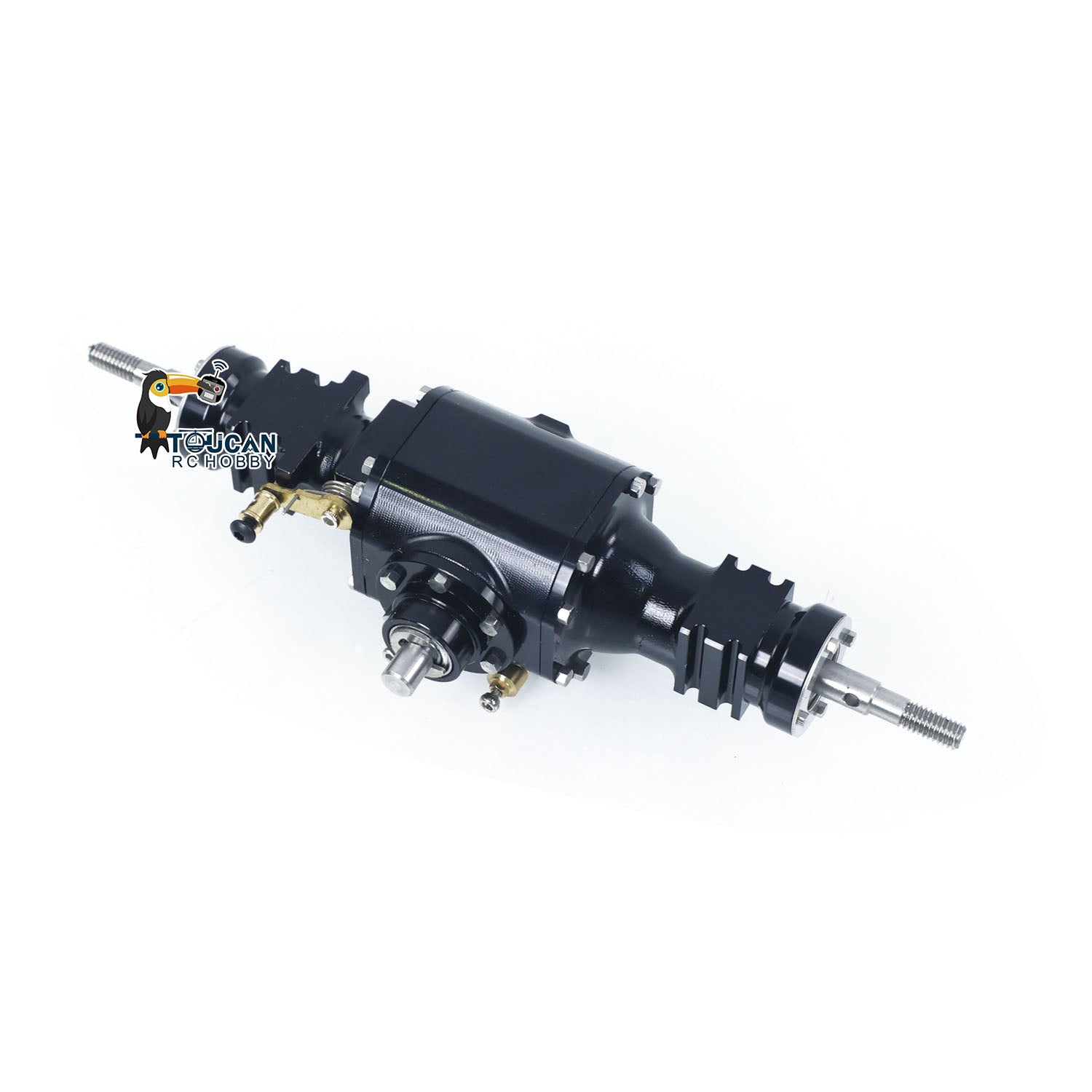

Axles: Metal 4X4 Axles comes with differential lock
Number of Directional Valve Channels: 3+1
Number of Hydraulic Pumps: 1
Rated Pressure of Hydraulic Station: 0-3MPa

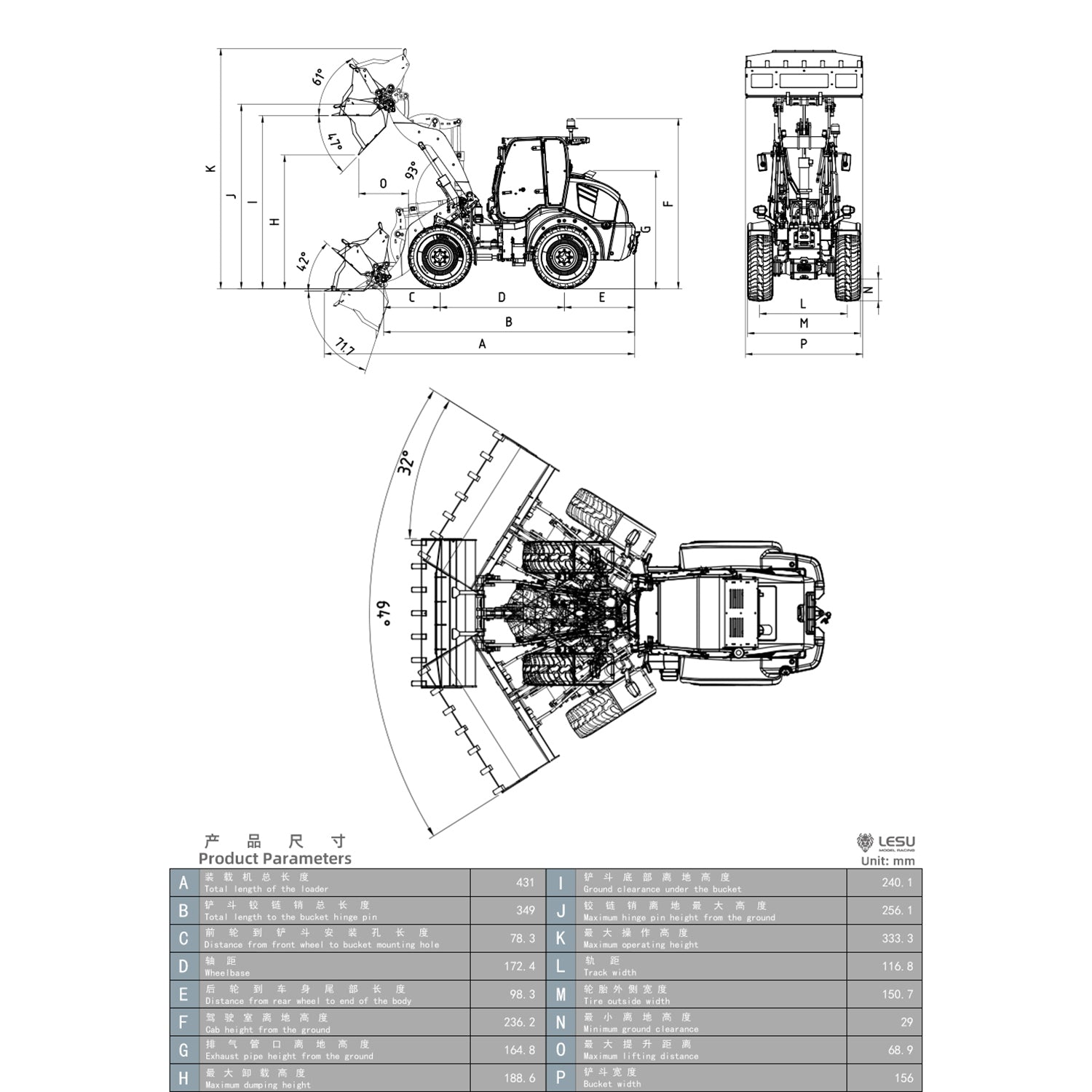

Total Length of Loader: 431mm
Wheelbase: 172.4mm
Track Width: 116.8mm
Ground Clearance of Bucket Bottom: 240.1mm
Total Length of Bucket Hinge Pin: 349 mm
Maximum Ground Height of Hinge Pin: 256.1mm
Distance from Front Wheel to Bucket Mounting Hole: 78.3mm
Maximum Operating Height: 333.3mm
Distance from Rear Wheel to Vehicle Tail: 98.3mm

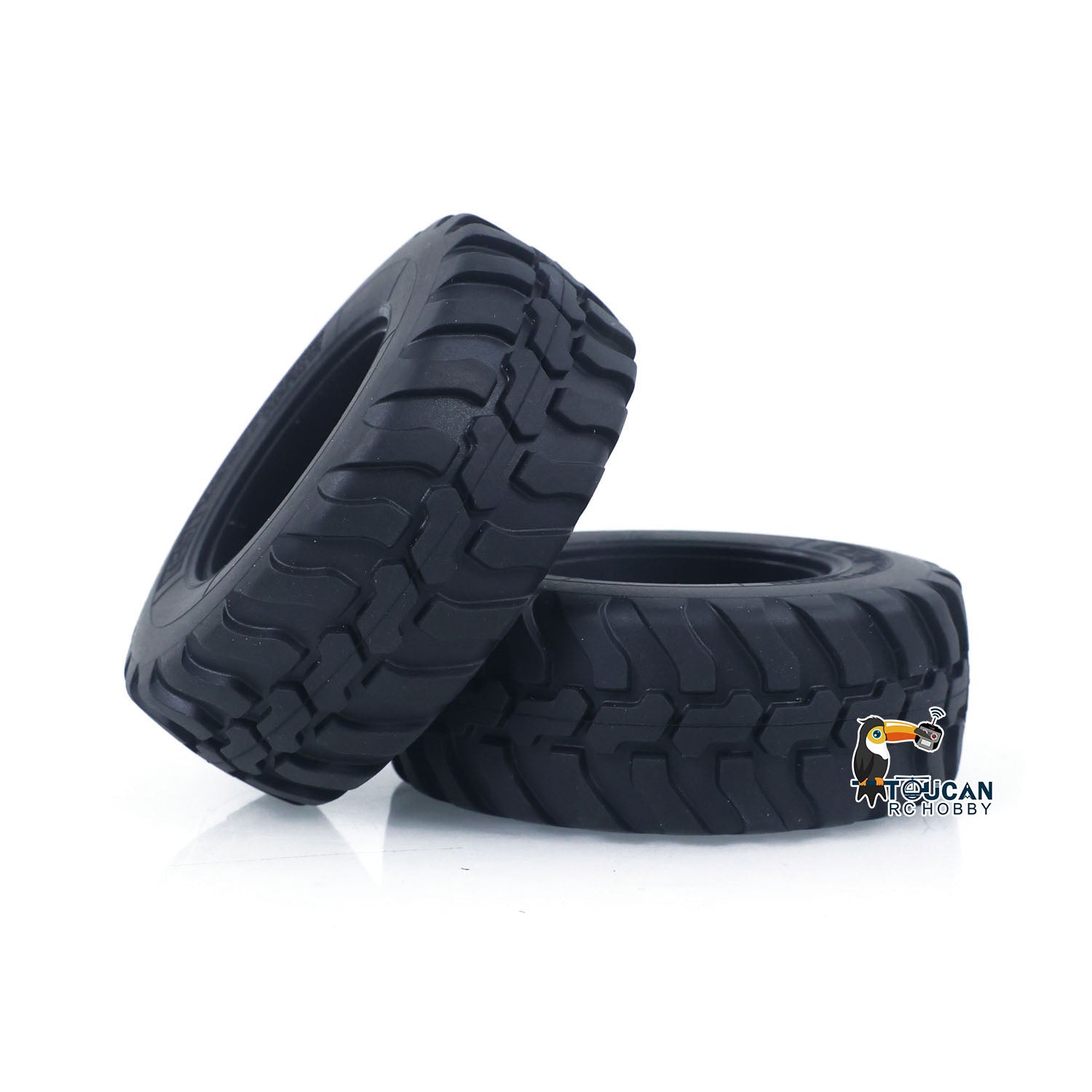

Outer Width of Tire: 150.7mm
Ground Clearance of Cab: 236.2mm
Minimum Ground Clearance: 29mm
Ground Clearance of Exhaust Pipe Outlet: 164.8mm
Maximum Lifting Distance: 68.9mm
Maximum Dumping Height: 188.6mm

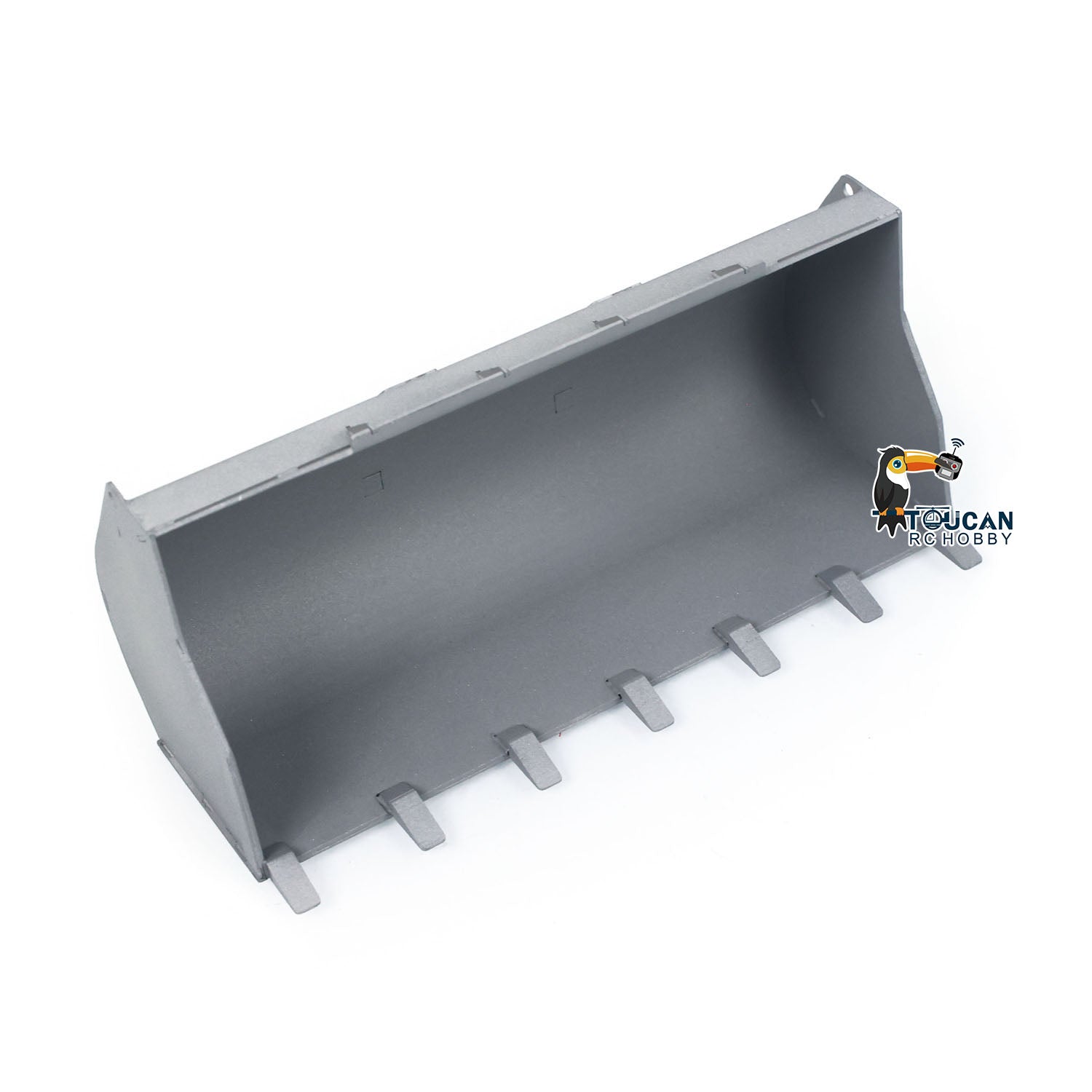

Bucket Width: 156mm
ID: LS-RD-A0021-KIT

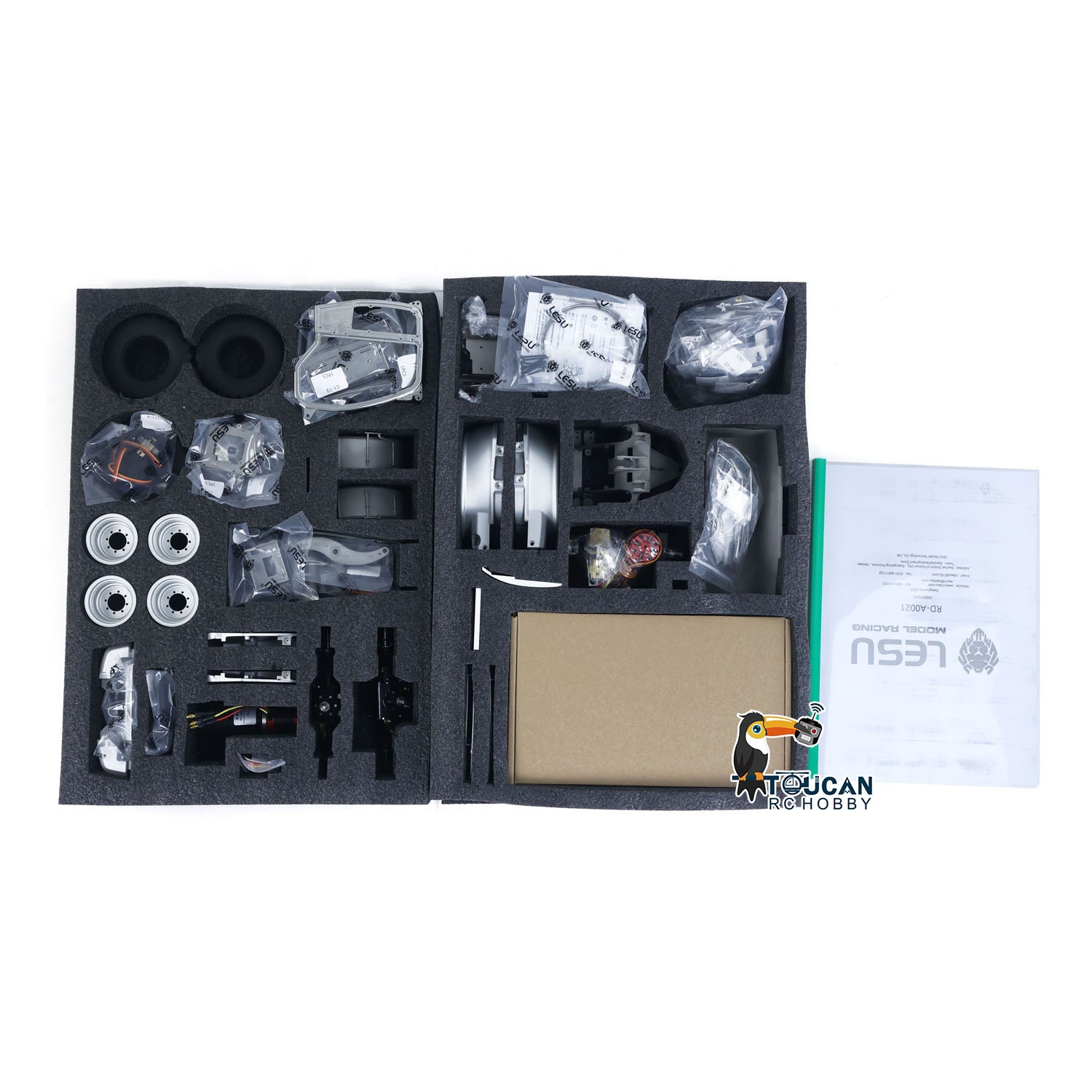

#The Package Includes:

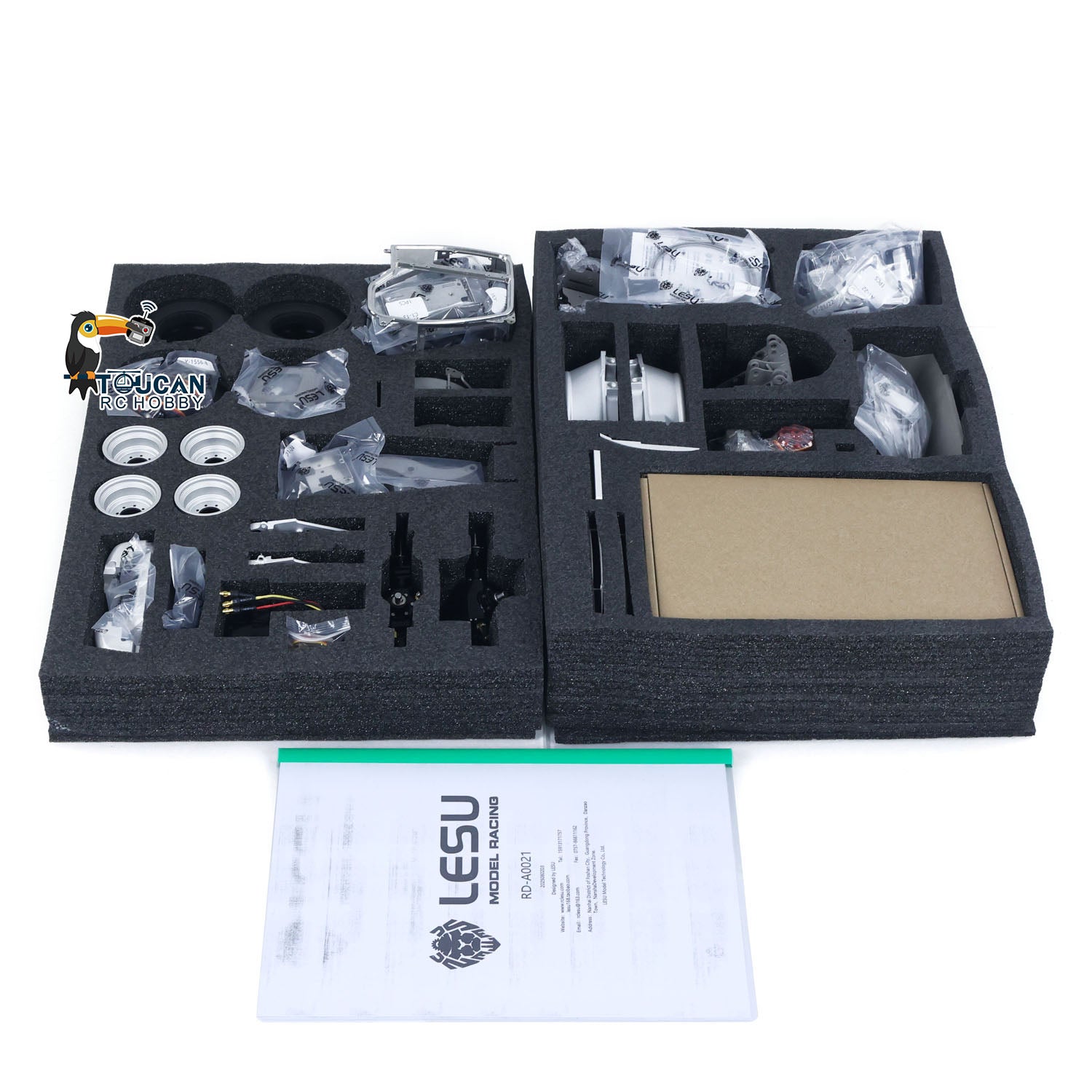

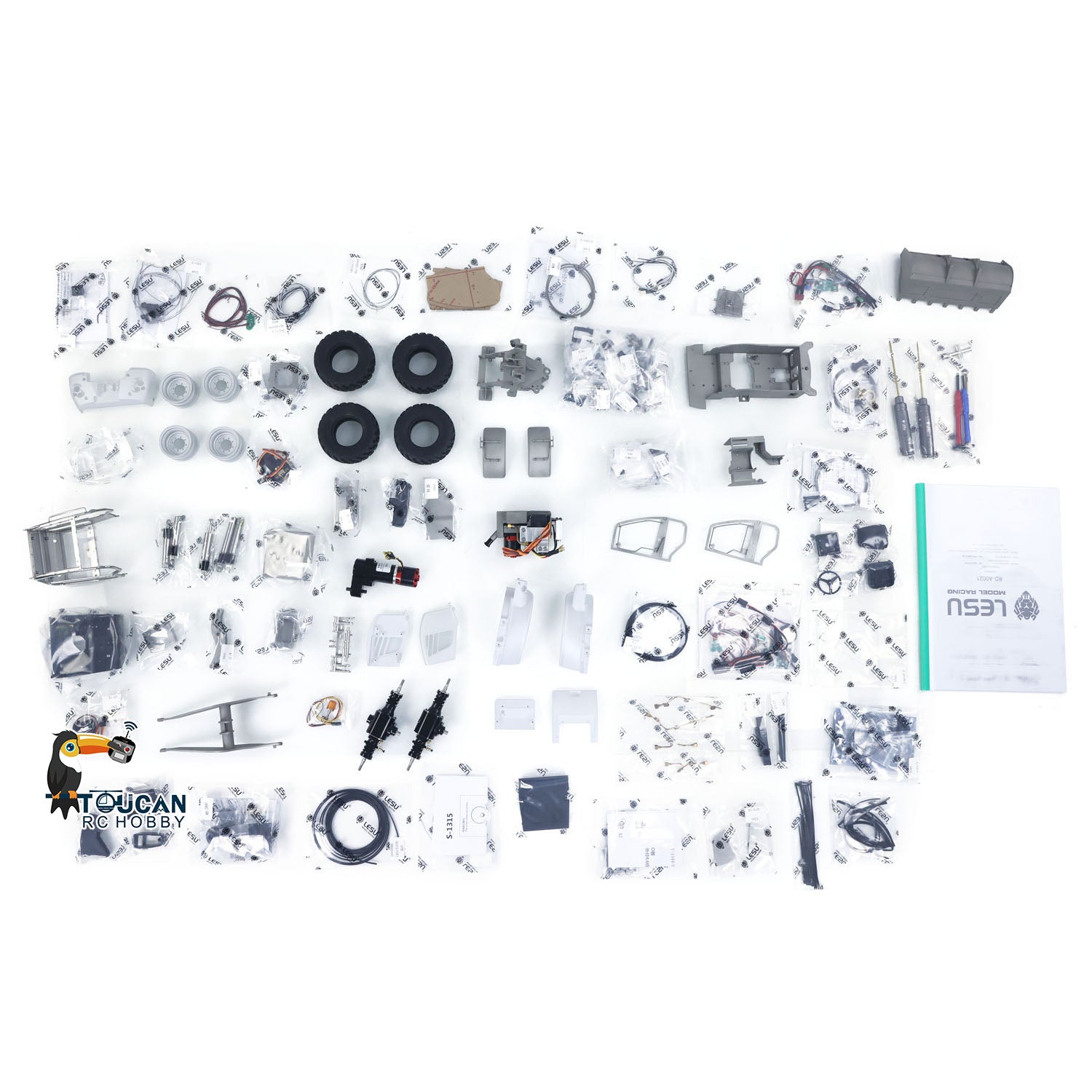

Unpainted & Unassembled 1/14 RC Hydraulic Loader Model KIT
Metal Manual Quick Release Coupler
Motor
Servo
ESC
Hydraulic System
Light System
Sound System

#The Package Does Not Include:
Remote Controller and Receiver
Battery
Charger
Hydraulic Oil

#Features:
1. Equipped with a hydraulic front bucket, which features automatic leveling, automatic lifting, and flexible linkage. The bucket is fitted with a manual quick-release coupler, allowing for easy replacement of various attachments for more flexible and convenient operations.
2. The entire machine consists of 95% metal parts. The front and rear frames are made of sheet metal welding, with a flip-open cab and rear engine hood. It is equipped with new door handles, front and rear windshield wipers, and a total of 5 openable doors.
3. Adopting a modular design for easy assembly and maintenance, the loader is configured with light and sound systems, including 11 LED lights and 1 warning light in the light system.

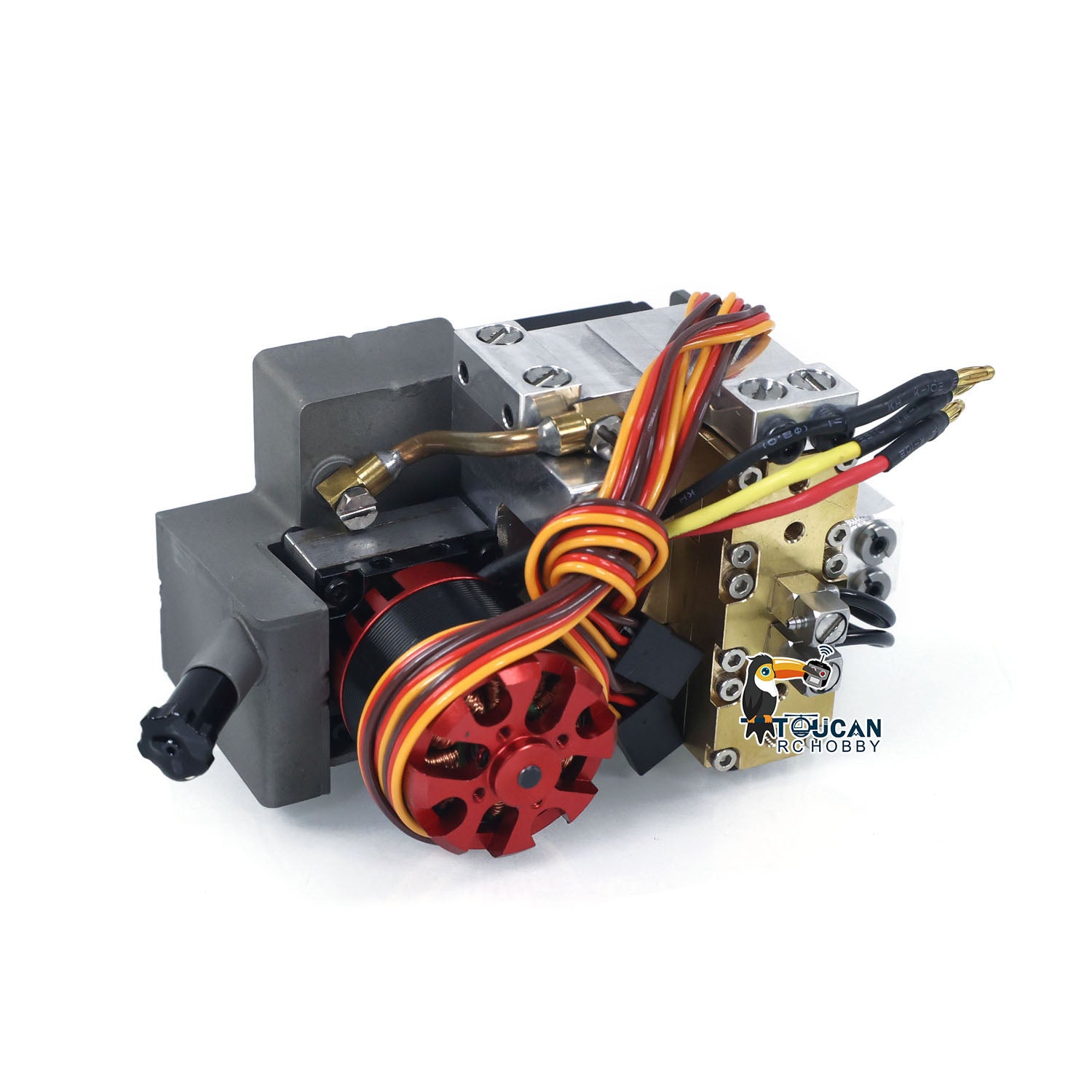

4. It uses a precision hydraulic system, including a new hydraulic pump, 3+1 channel directional valve (among the 3 channels, 1 is for attachment upgrading, 1 for boom lifting, and 1 for the metal bucket; the "+1" channel is a steering centering valve that enables automatic centering of the loader's front part), a two-stage relief valve, and 3 sets of hydraulic cylinders. This ensures a more stable hydraulic system with coordinated, smooth, and linear movements.

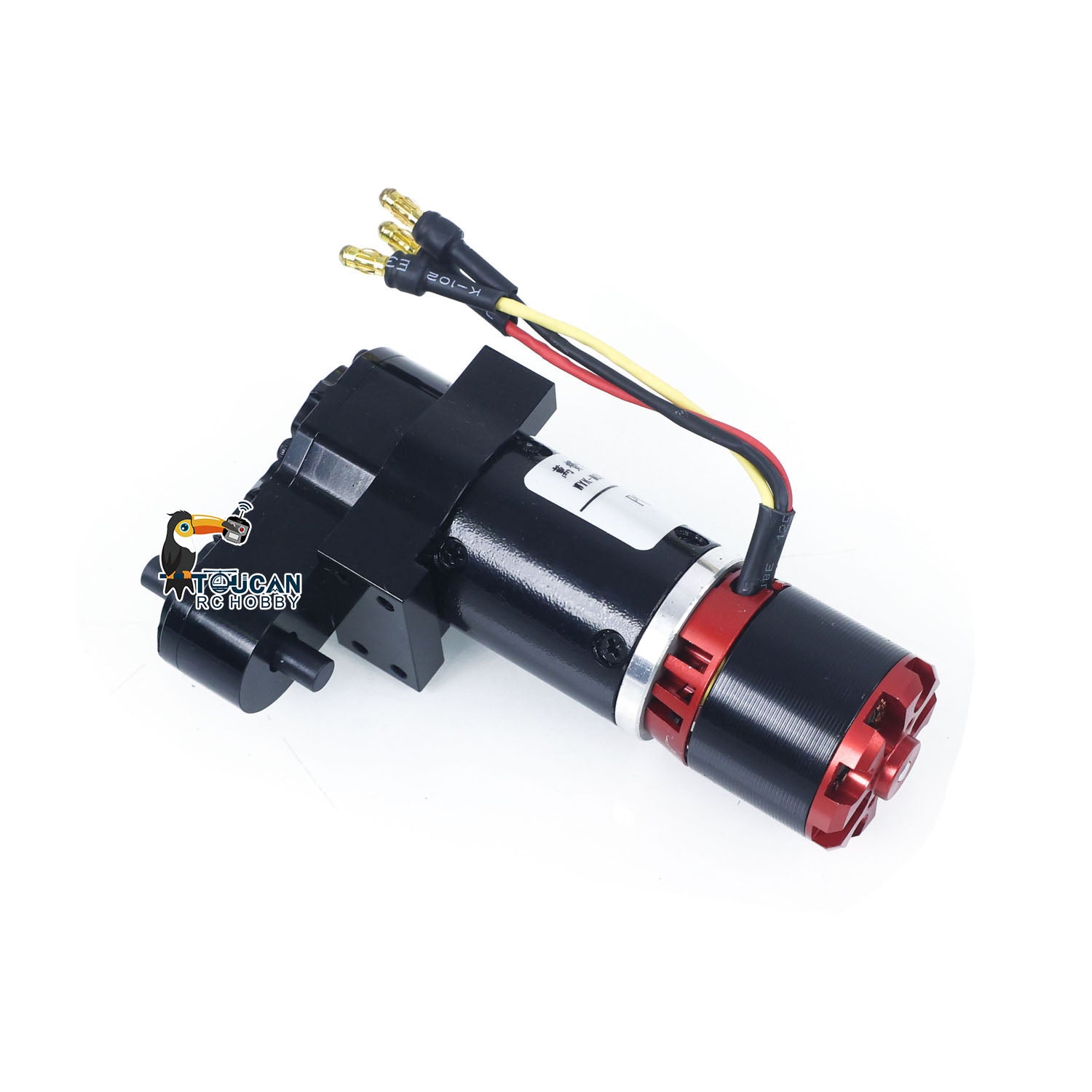

5. Driven by a brushless motor, it boasts high efficiency, low heat generation, large low-speed torque, and smooth operation.
6.The all-metal 4X4 axle with a differential lock enhances the model's driving stability and handling performance. The transfer case to the rear axle is connected via
