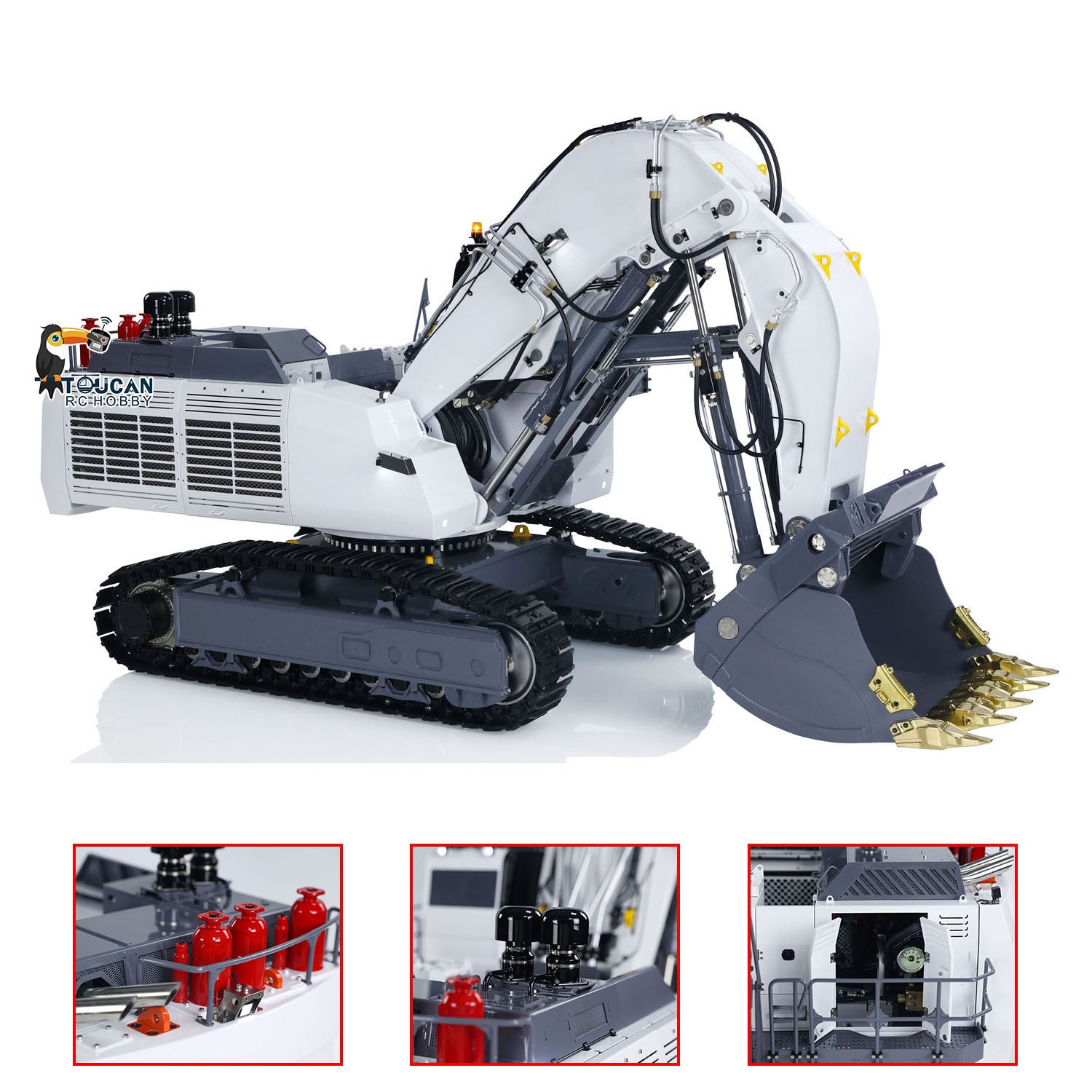

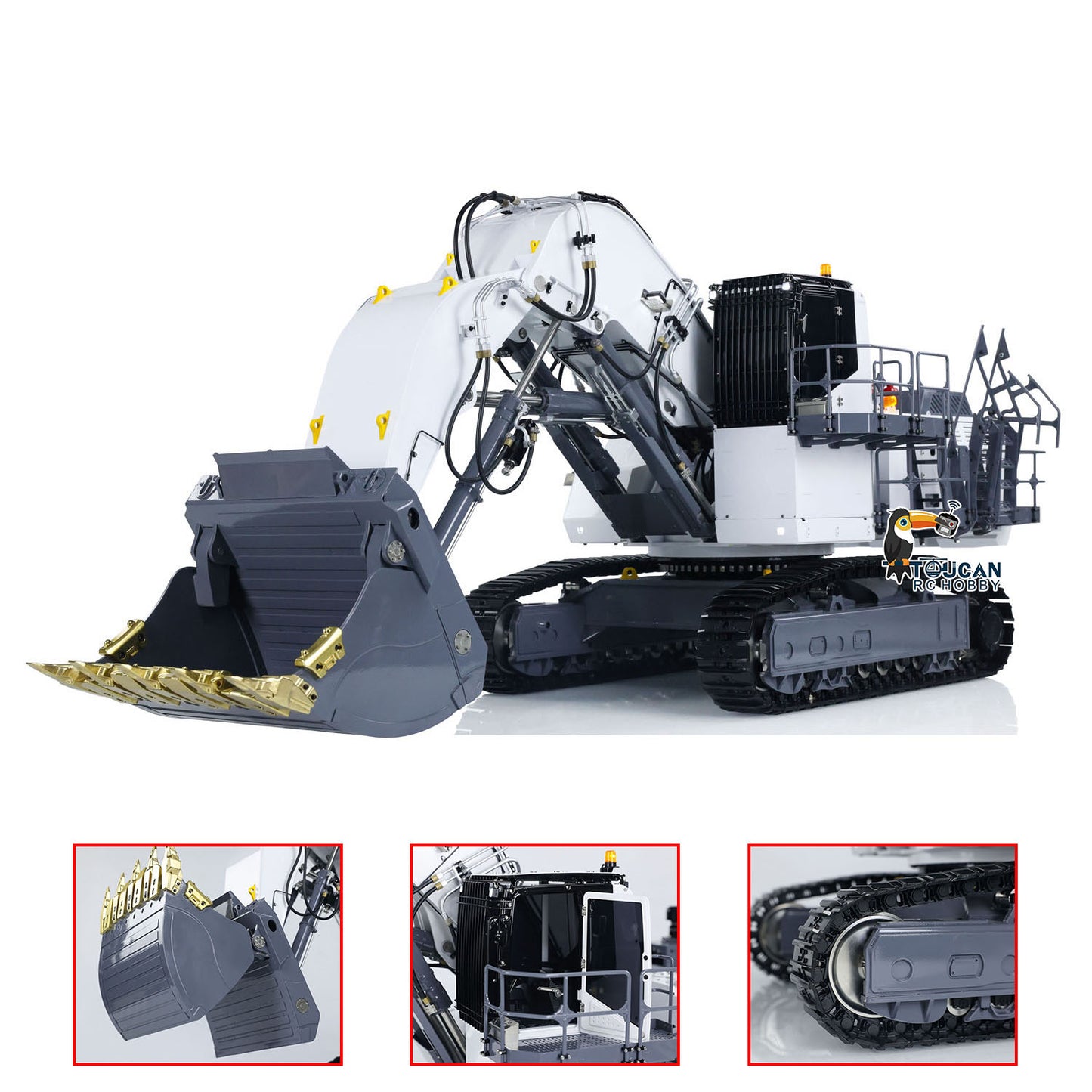

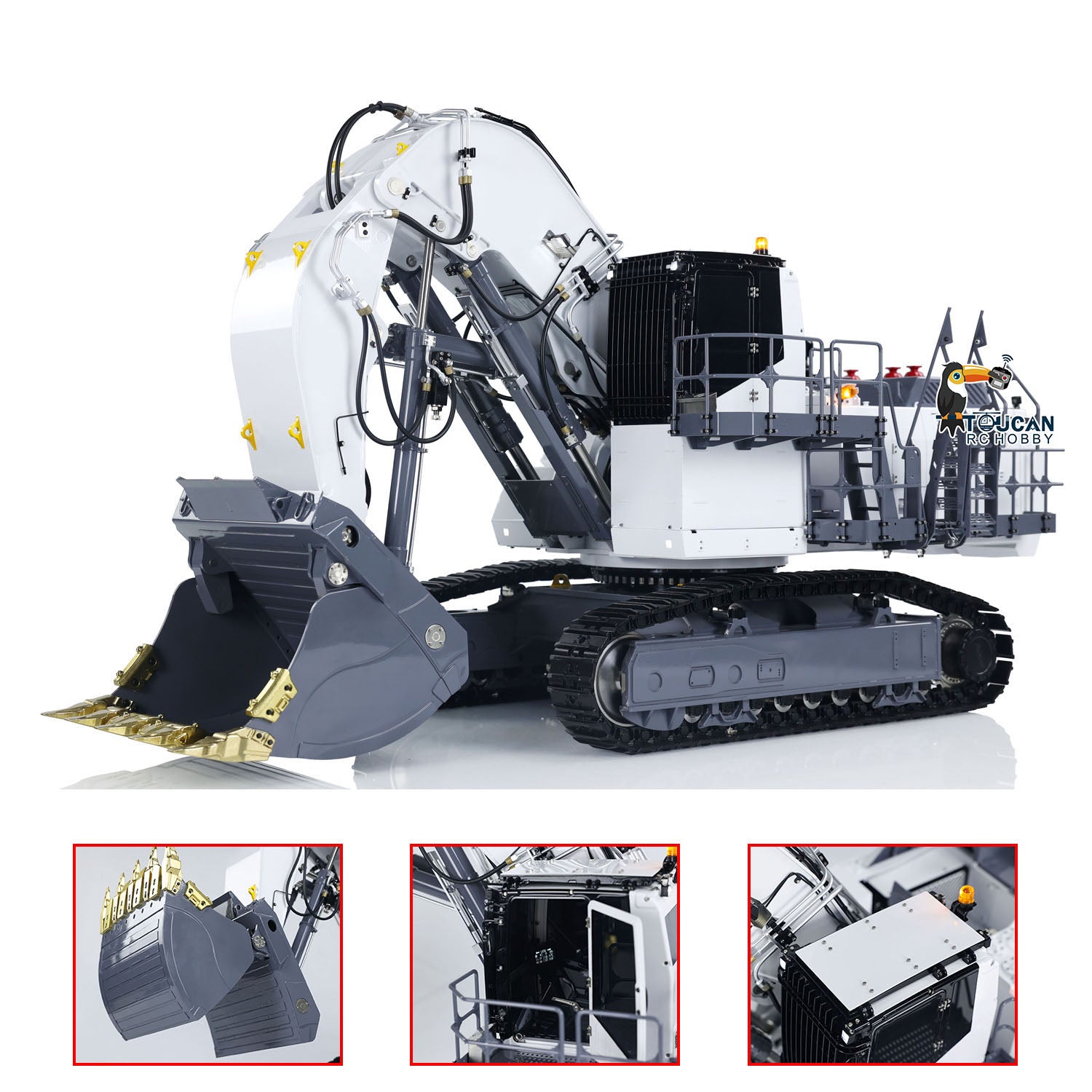

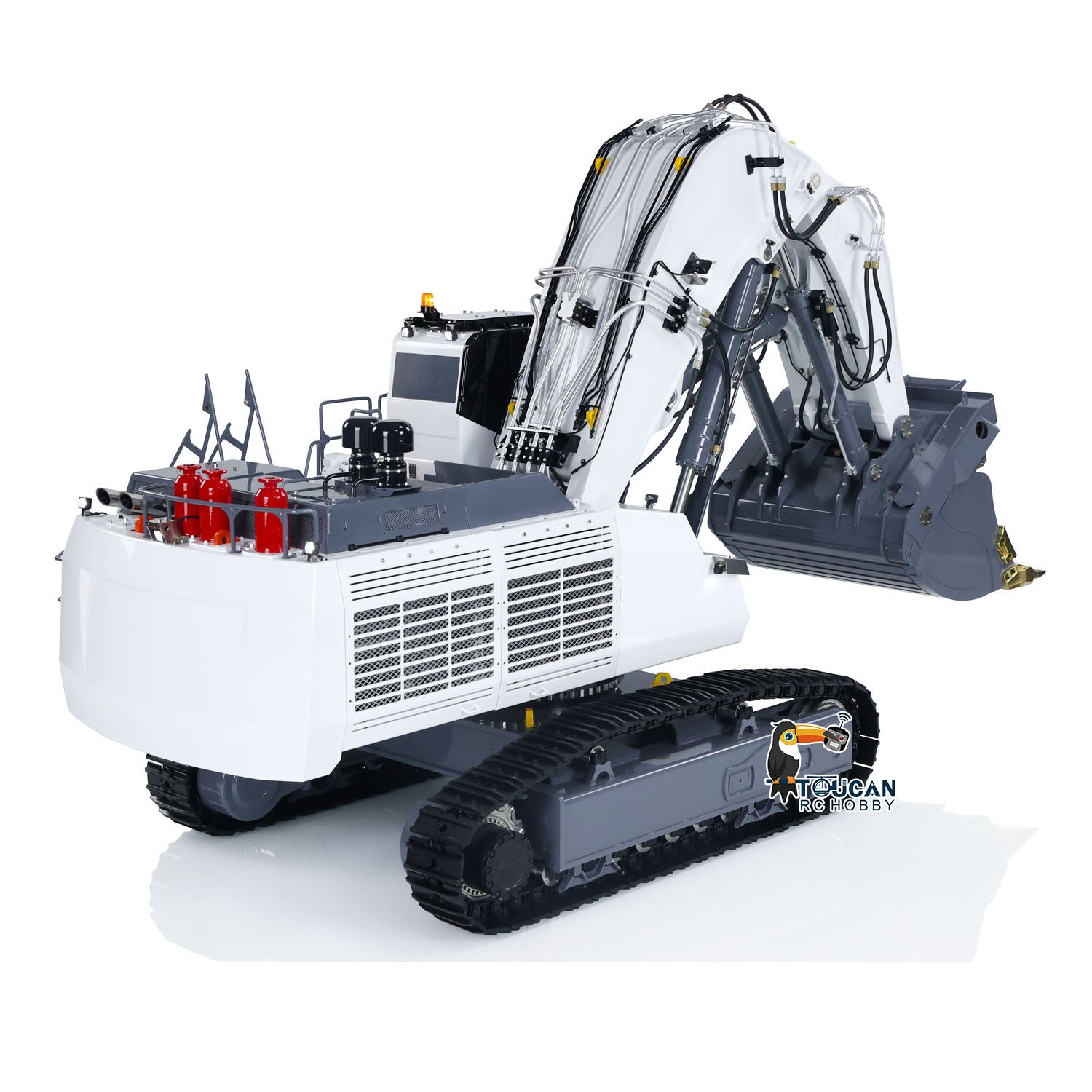

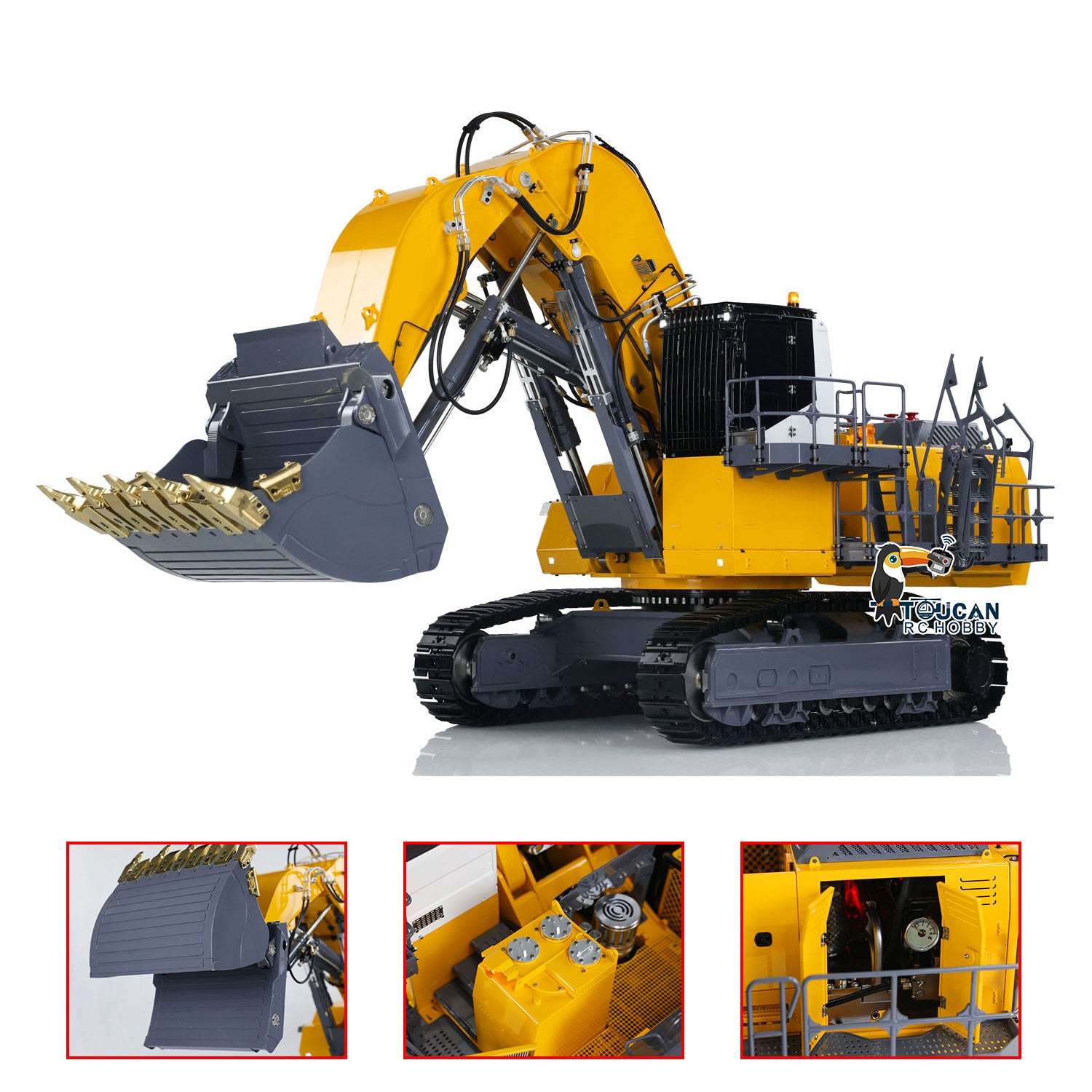

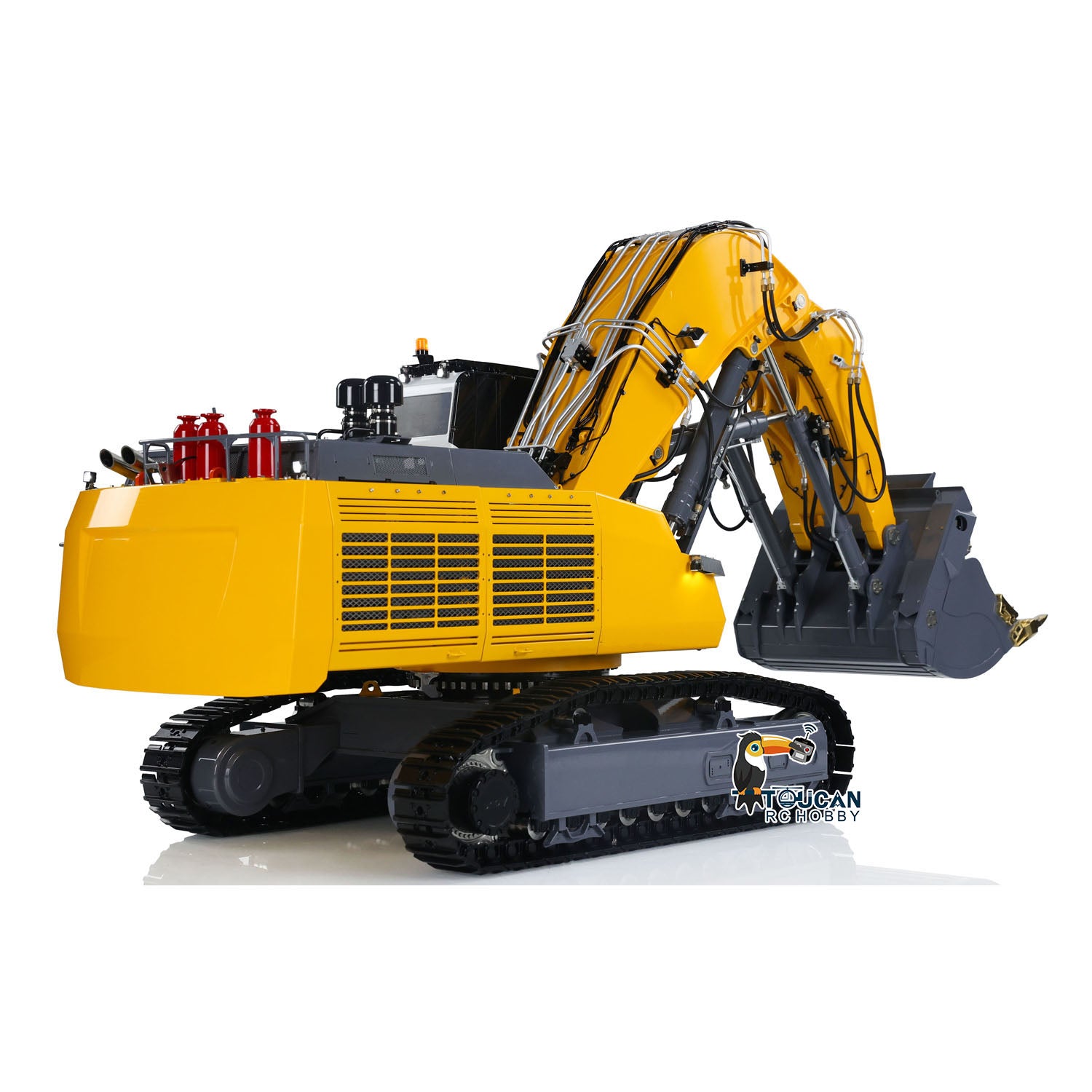

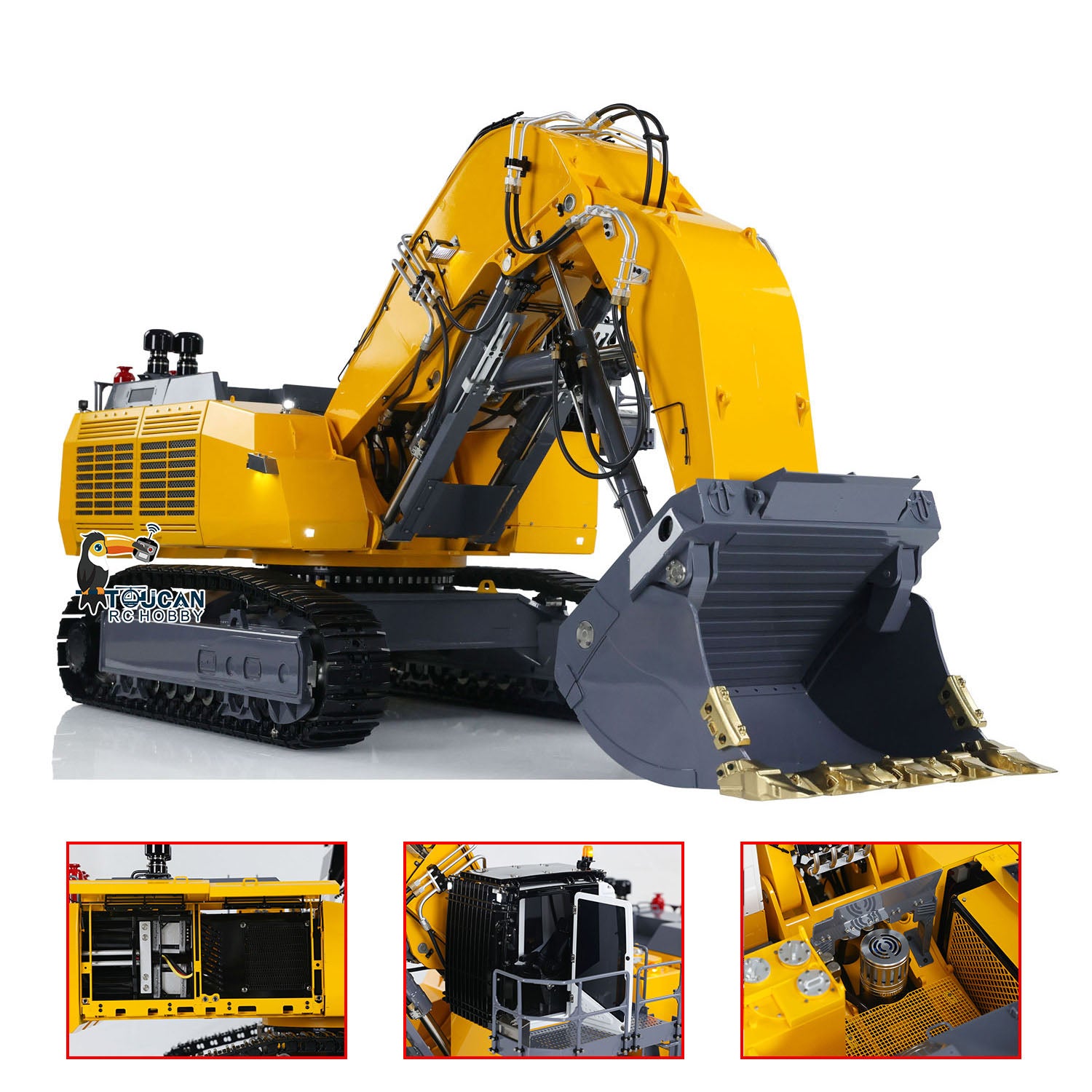

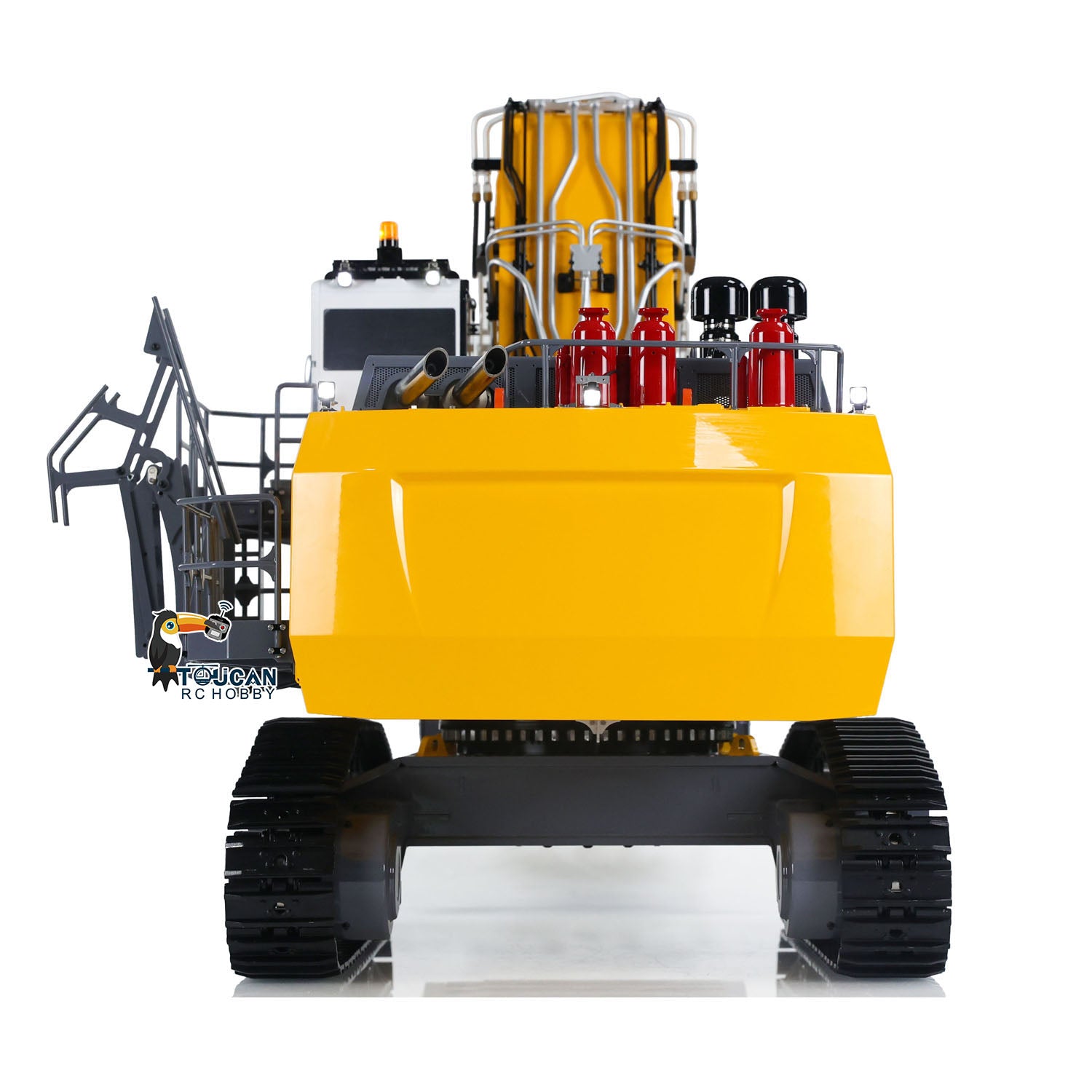

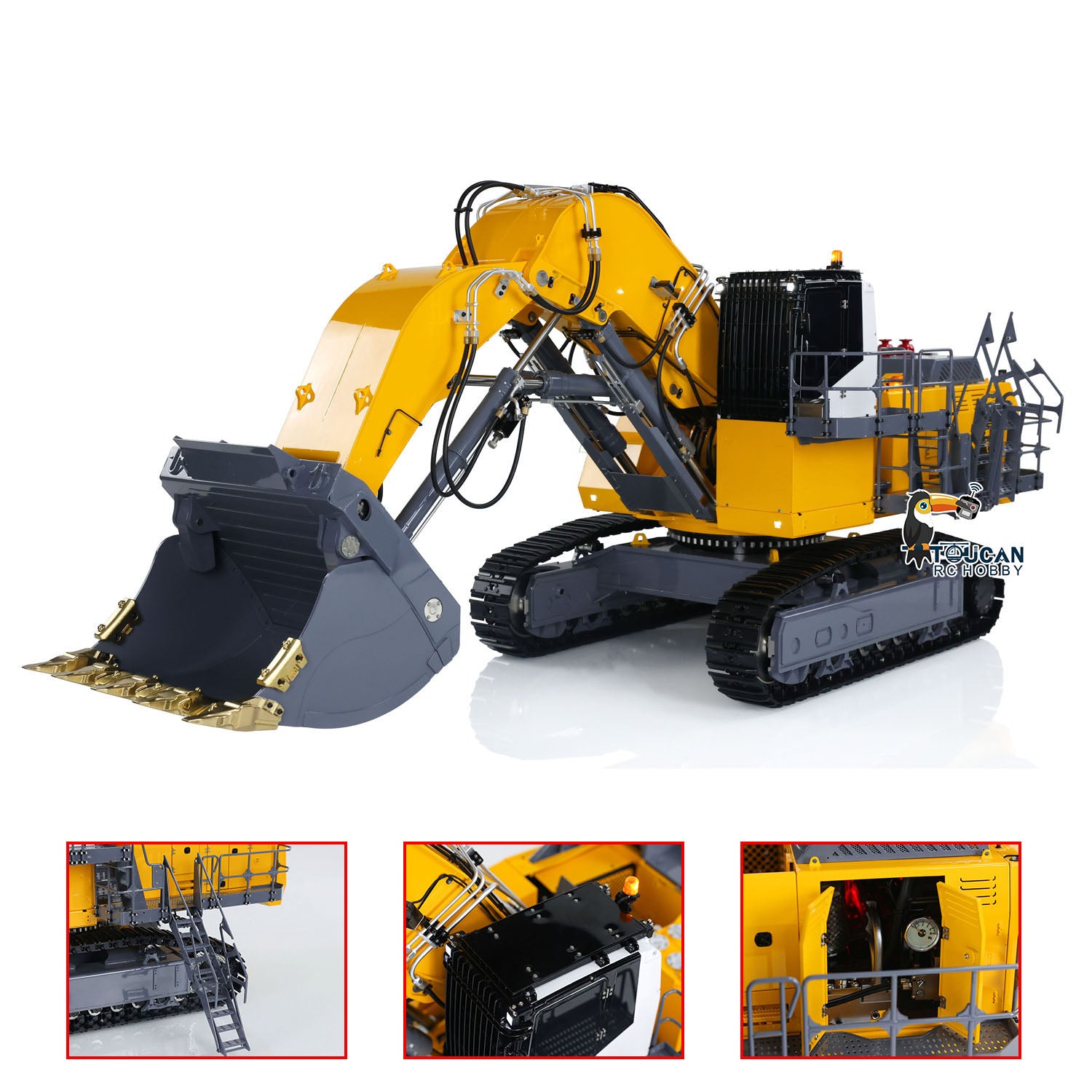

1/14 LESU AOUE 9150 RC Hydraulic Double Pump Excavator Light System Heavy Shovel Painted Construction Car

SKU:LS-BA-B0010-ZC-PNP-Y-SPF8

$7,499.90 USD

Sale Ausverkauft

Color Yellow White

Anzahl

#Note: For customers in the US and EU, this product is shipped by sea with an estimated delivery time of 45-60 working days.
For customers in Canada, this product is shipped by express delivery with an estimated delivery time of 7-10 working days. If you prefer sea shipping, please contact us.
#Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Scale: 1/14
Net Weight: 60KG
Excavator Size: 940*465*490mm
Material: Stainless Steel, Aluminum Alloy, Brass, Plastic
ID: LS-BA-B0010-ZC-PNP-Y

#The Package Includes:
1PC 1/14 Aoue 9150 RC Excavator
ESC
Motor
Servo
Light System

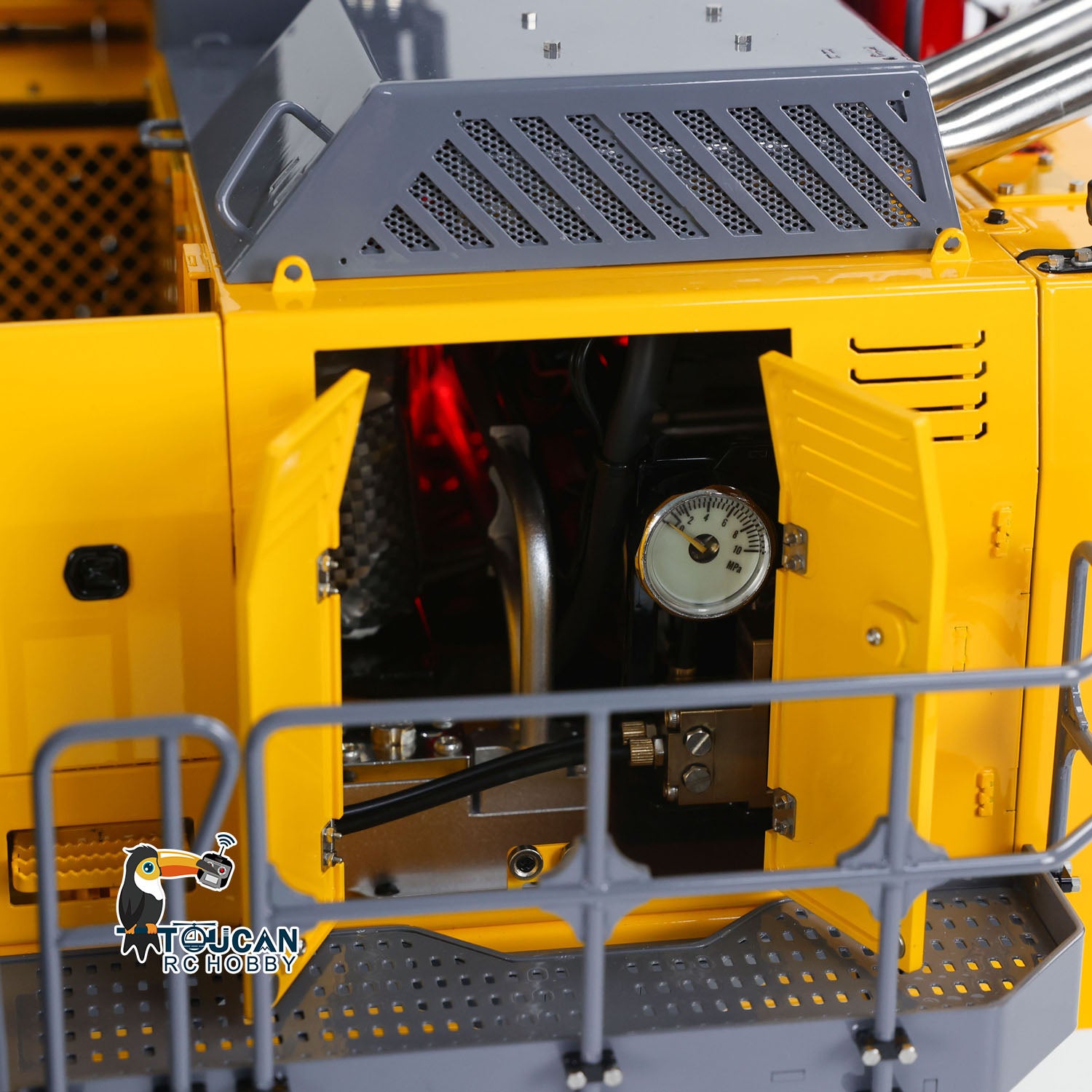

Hydraulic System

#The Package Does Not Include:
Sound System
Remote Control System
Battery
Charger
Hydraulic Oil

Features:
1. Double oil pump hydraulic system, super large flow.

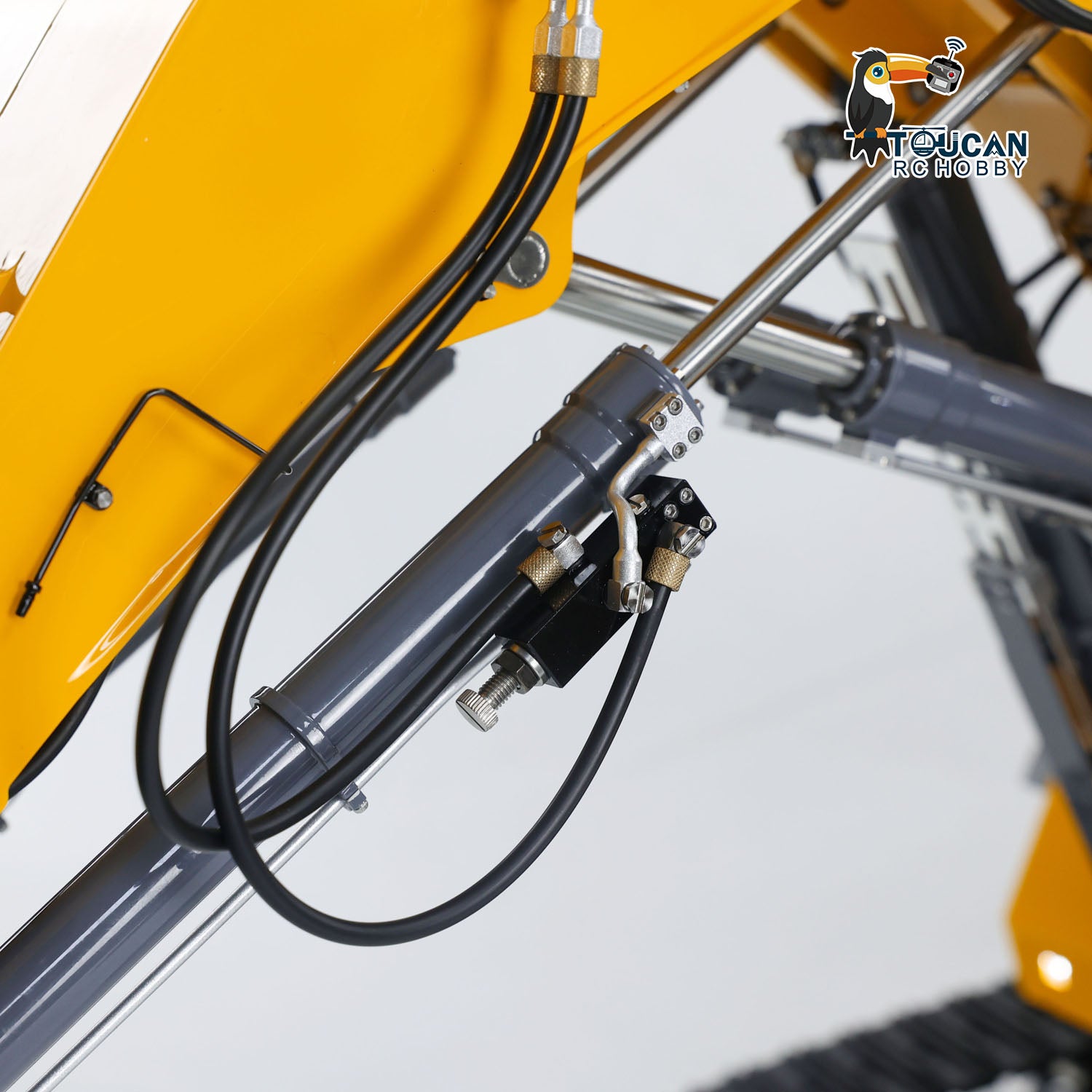

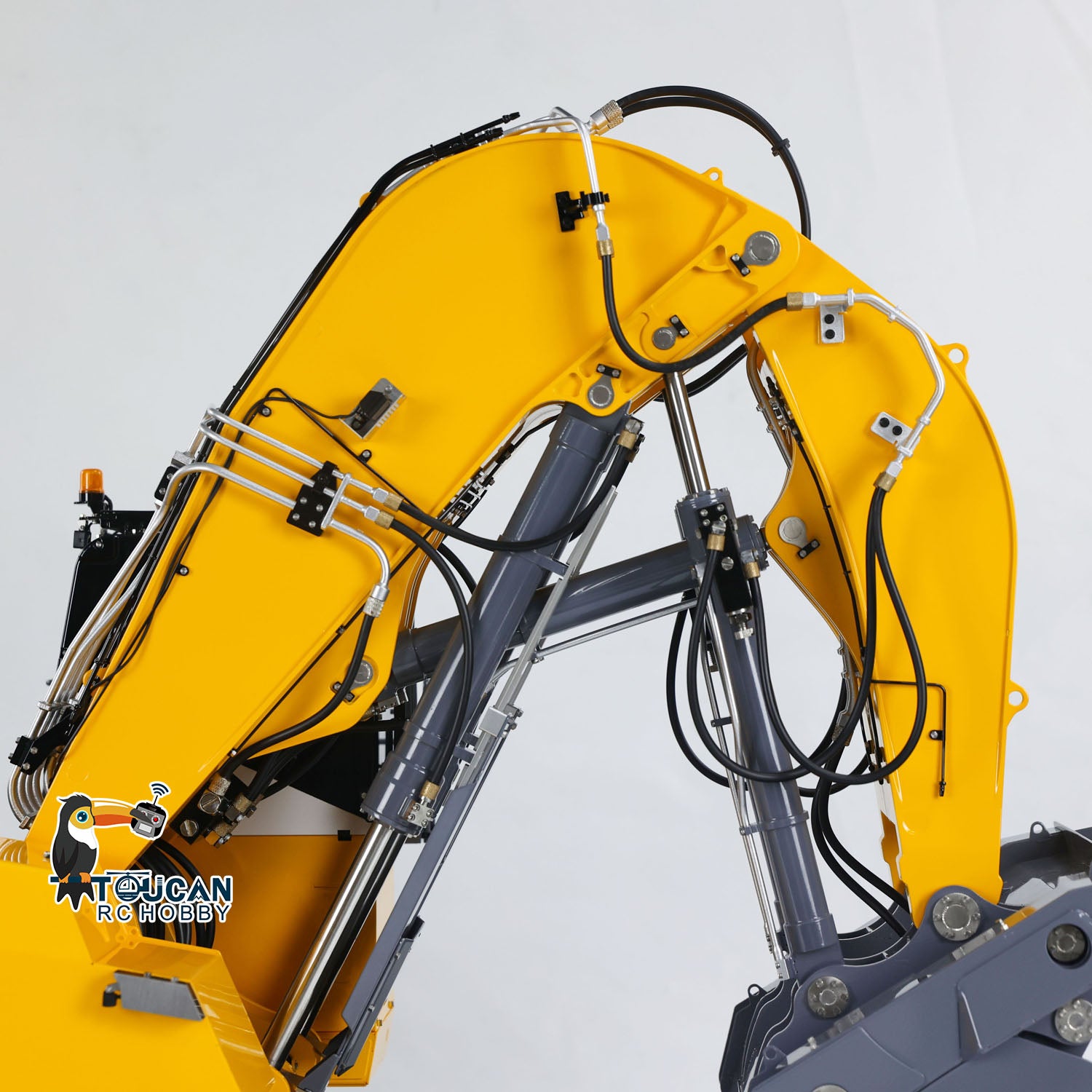

2. Double hydraulic cylinder digging arm, large cylinder design.
3. The oil circuit system is more reliable with the newly designed overflow valve.

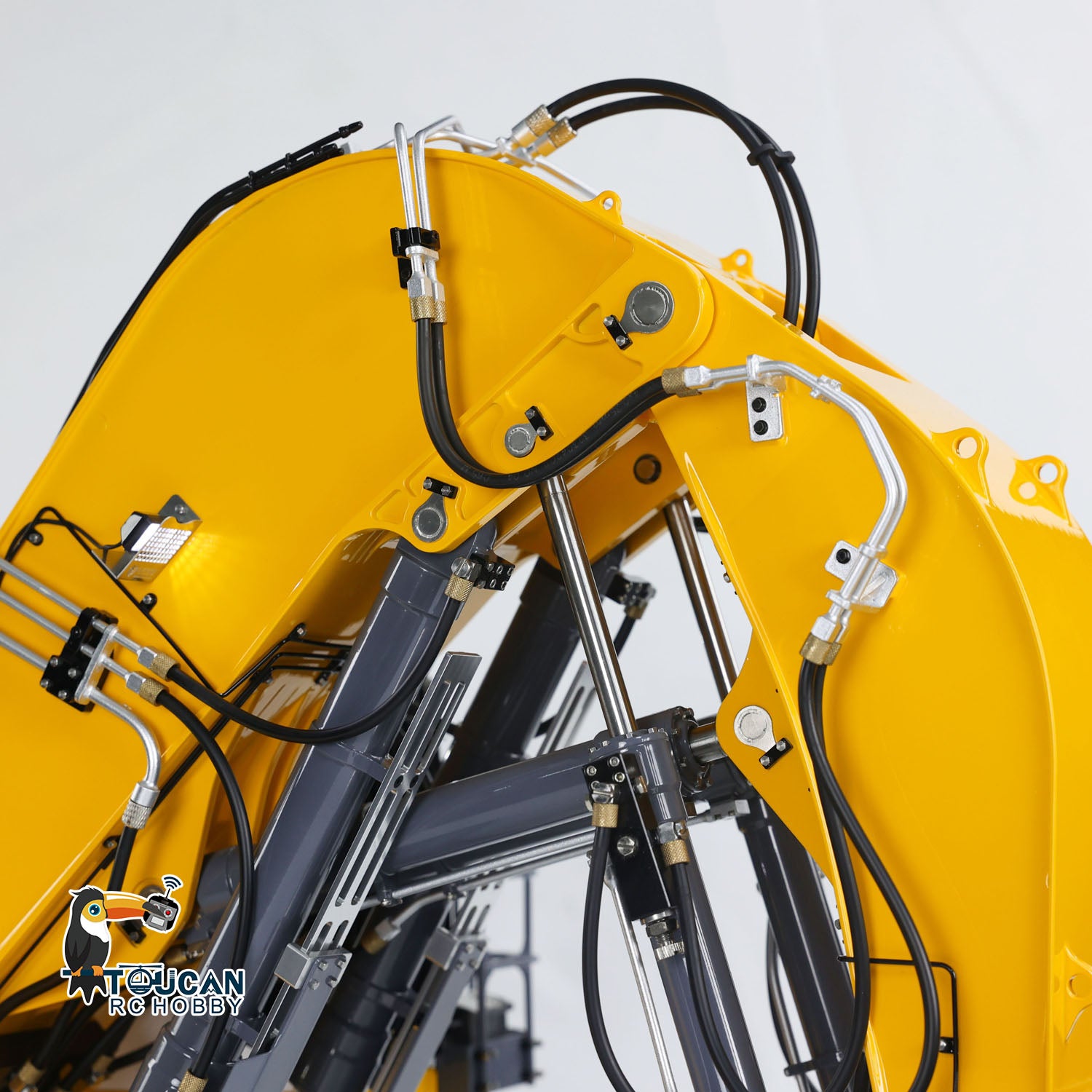

4. 80% of the oil circuit system is welded with copper, and 90% of the whole machine is made of metal.

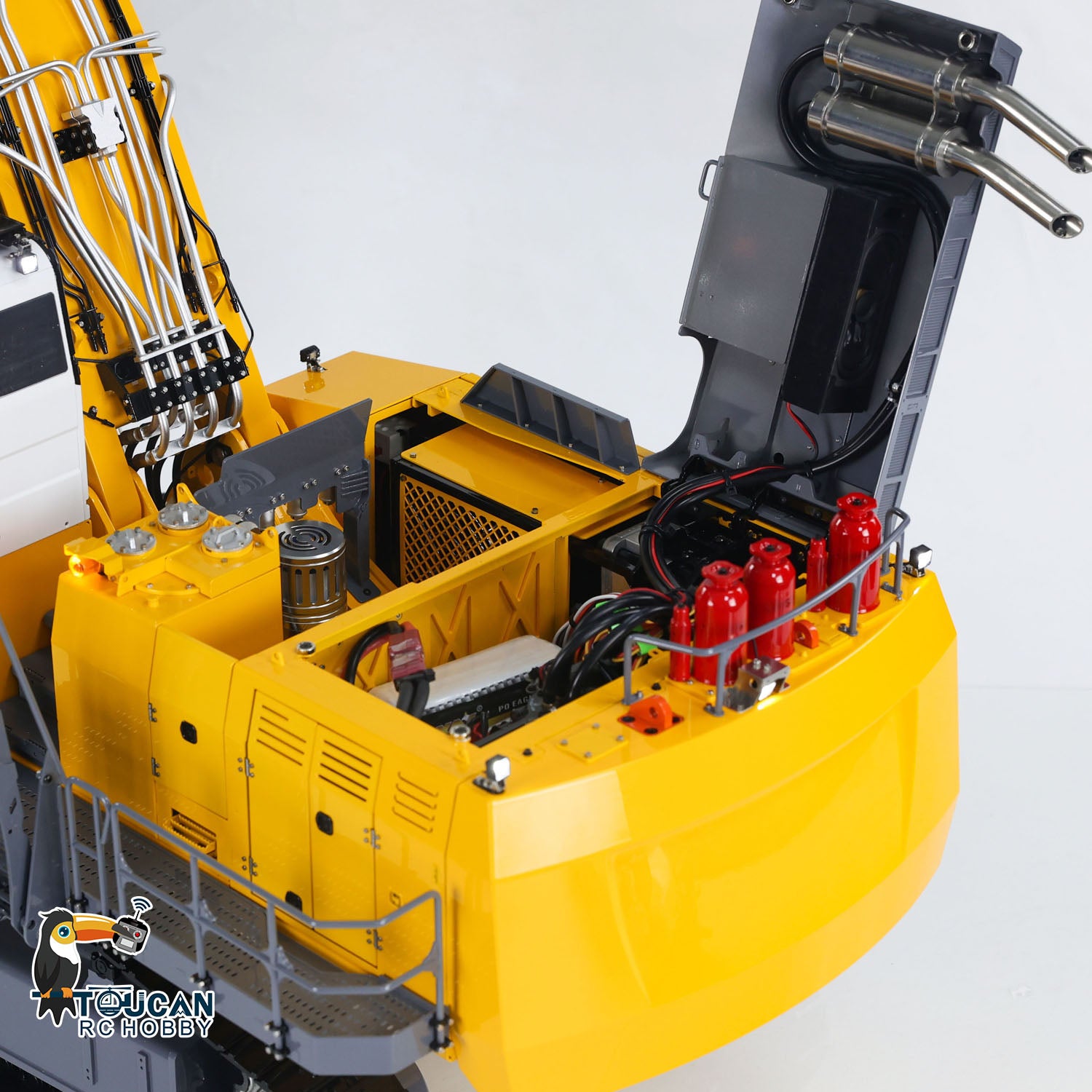

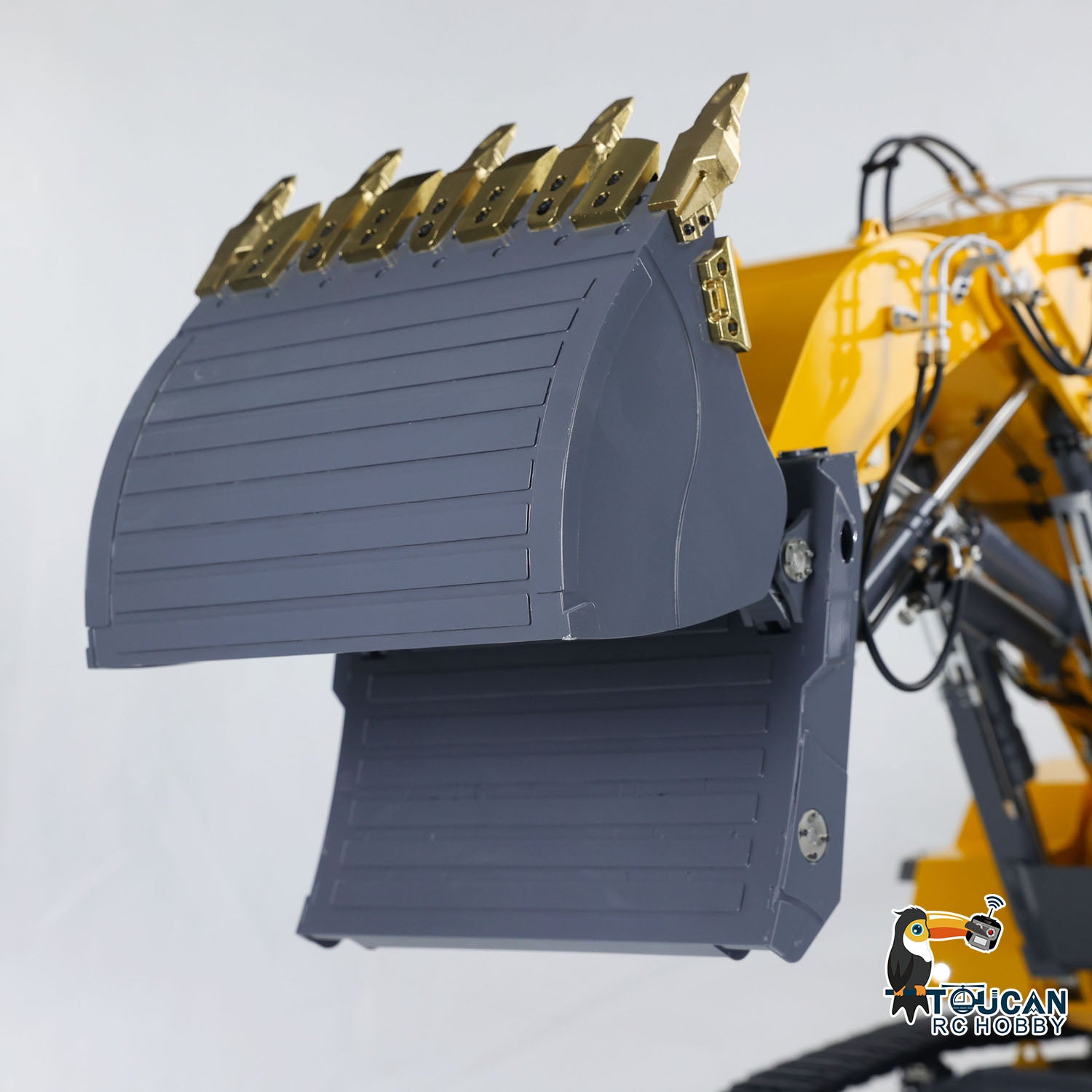

5. Modular design of the whole machine, hydraulic lift ladder design, the bucket can be opened and closed, and the arm can be replaced with the backhoe shovel.

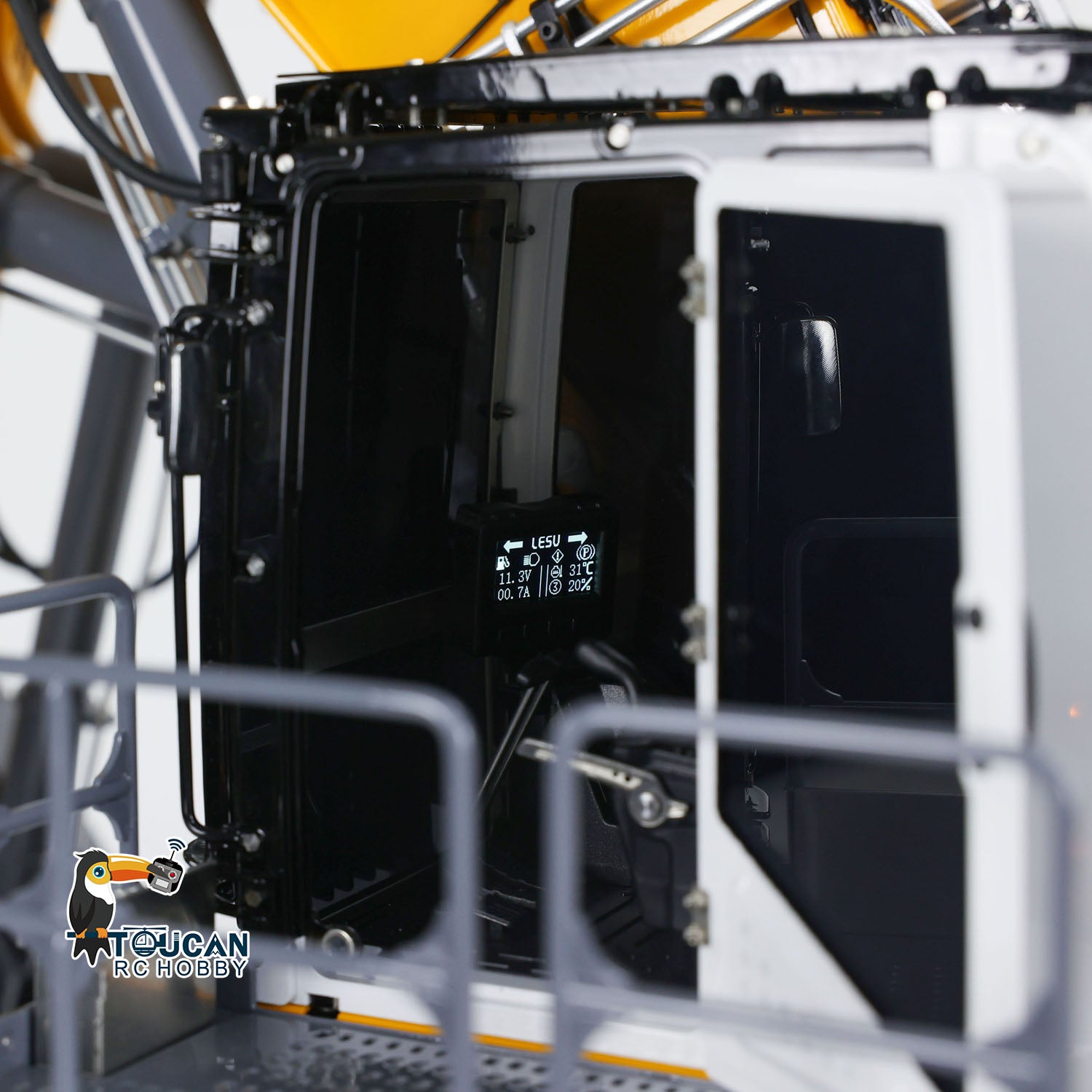

6. Full machine lighting, equipped with analog electronic display, and one key switch of the whole machine circuit.
7. The precise hydraulic system makes the action of the excavator more coordinated and smooth.
8. The balanced oil circuit valve device is added to make the operation of the boom more stable

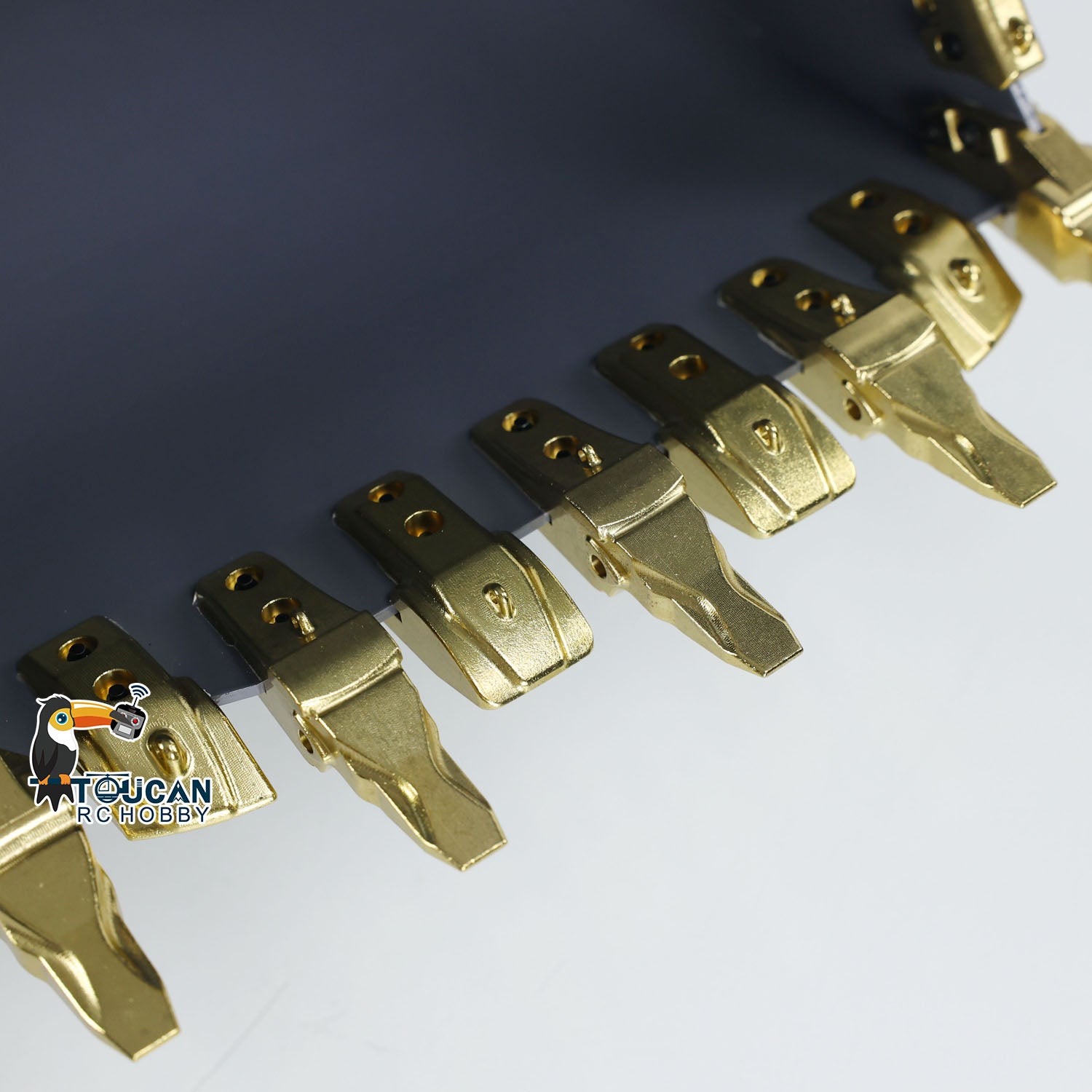

9. Pure copper carved bucket teeth (big gold teeth), aluminum alloy excavator arm and counterweight are processed by CNC.

Parameters:
Height from top of the cab to ground/mm: 418.3
Height from the top of the air filter to the ground/mm: 352.9
Total length of track/mm: 485.2
Wheel base (center distance between the driving wheel and idler)/mm: 379
Height from the bottom of X frame to the ground/mm: 62.4
Minimum rotating radius/mm: 429.5
Maximum excavation height/mm: 752.8
Maximum lifting height/mm: 975.7
Rotating speed (r/mim): 6
Rotary drive reduction ratio: 1:256
Rotating motor speed (r/min): 10,878; 11.1V
Maximum pressure of hydraulic workstation/mpa: 5
Rated pressure of hydraulic workstation/mpa: 4
Maximum unloading height/mm: 682
Maximum excavation depth/mm: 301.2
Maximum excavation radius/mm: 866.3
Maximum ground excavation radius/mm: 830
Gauge/mm: 302
Track width/mm: 53.5
Total width of excavator/mm: 465.
Height of ladder from the ground/mm: 16.8
Walking driving wheel speed (r/mim): 26
Walking drive reduction ratio: 1:576
Walkingmotor speed (r/min): 13875; 11.1V
Directional valves quantity: 5
Hydraulic pumps quantity: 2
