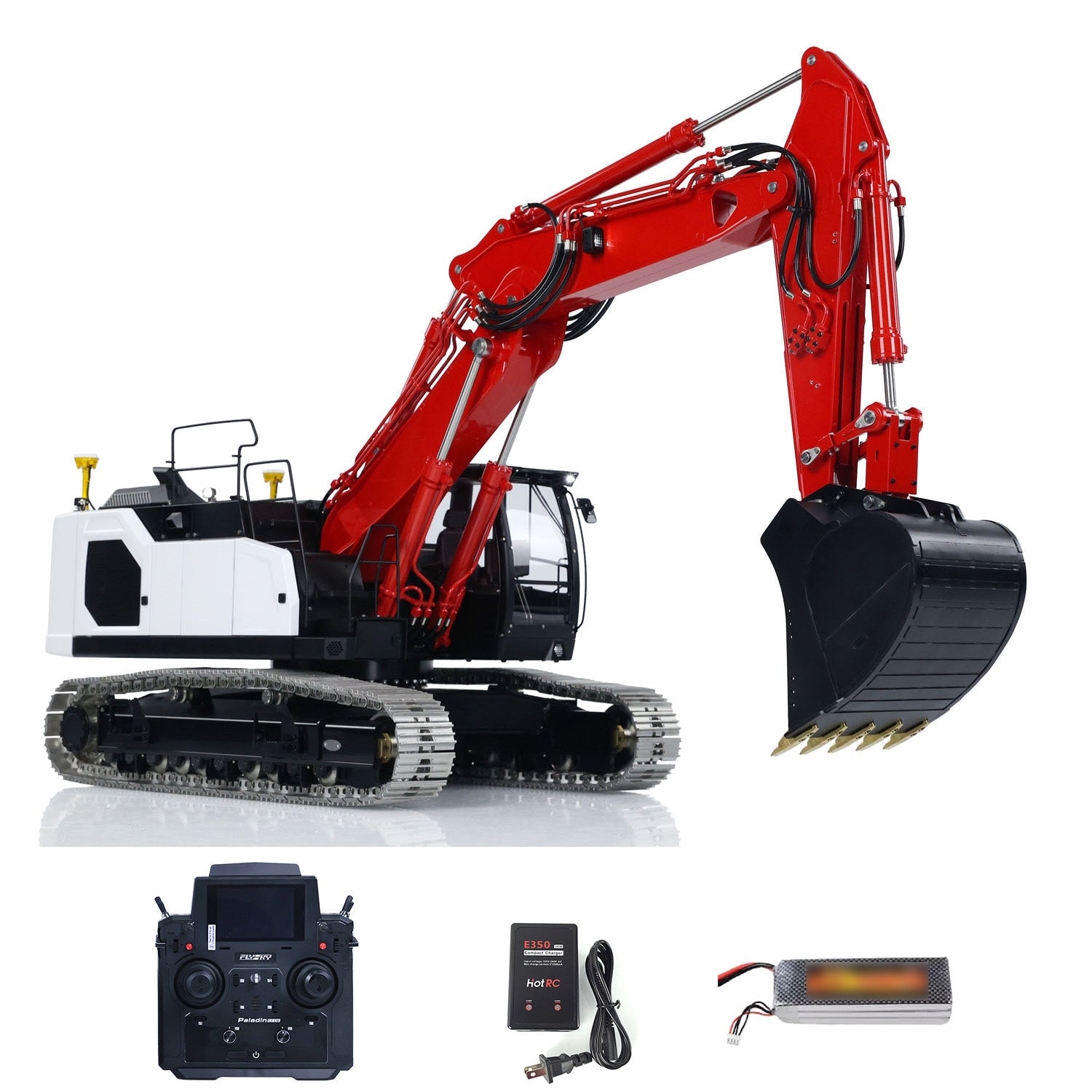

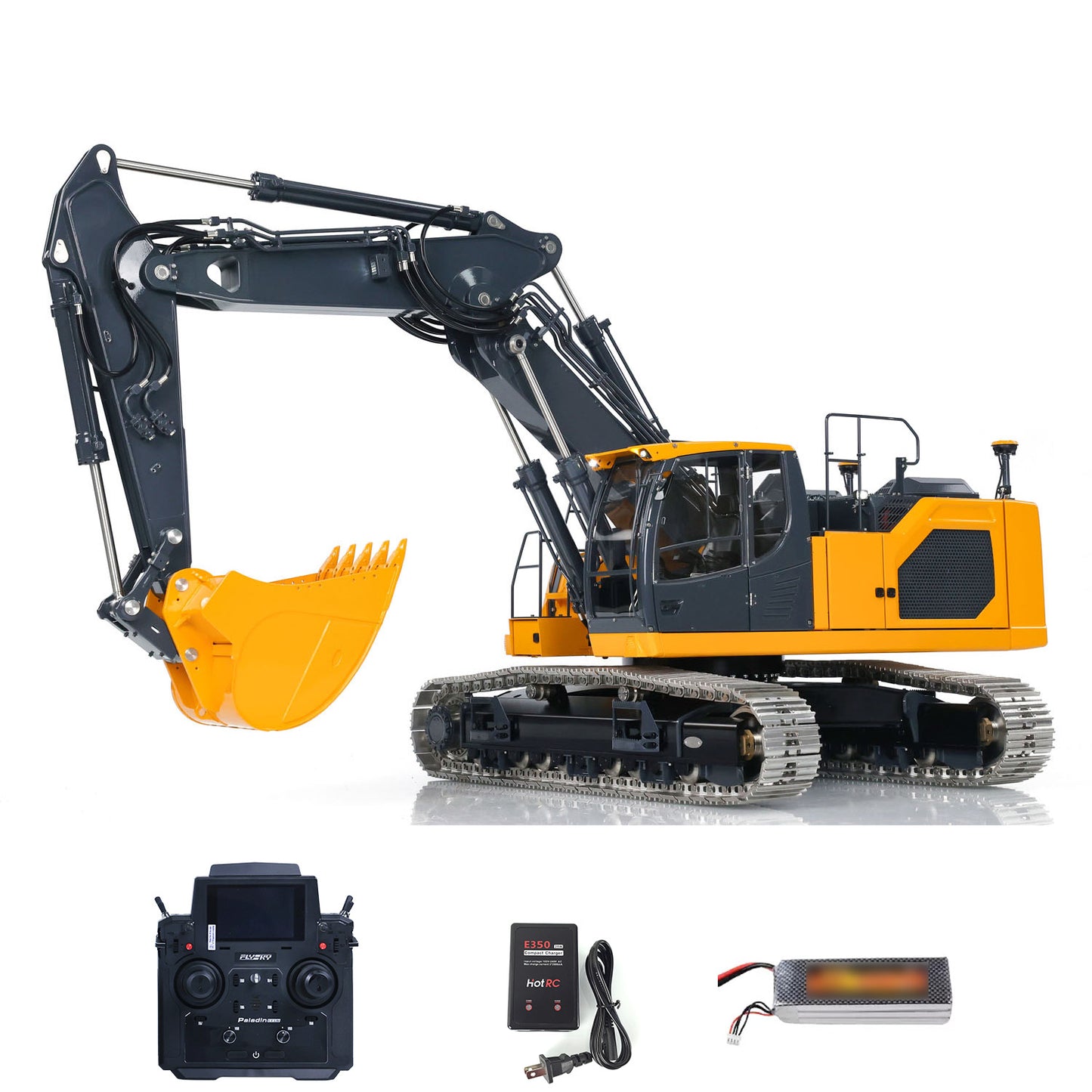

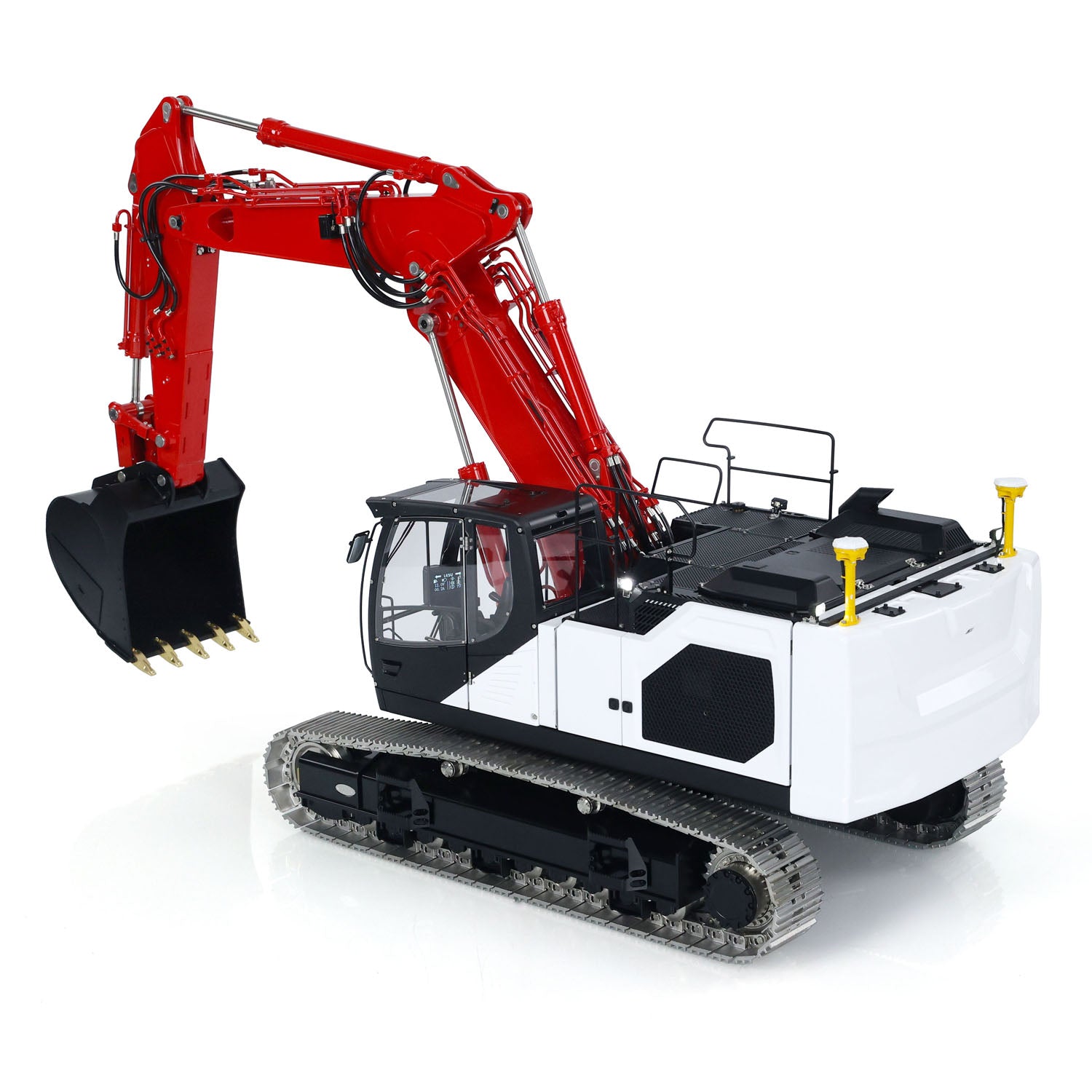

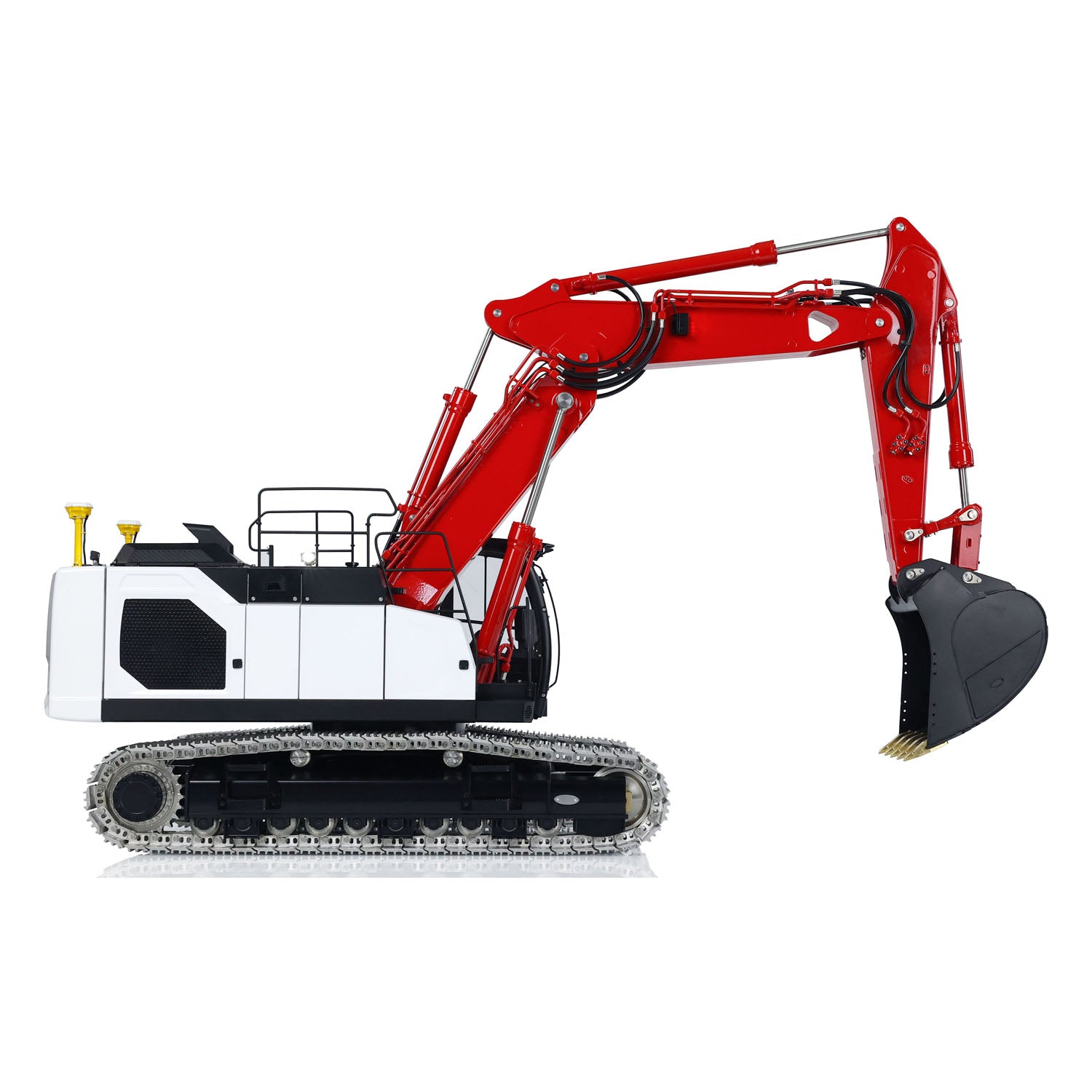

LESU AOUE LR945 3-Arm 1/14 LESU RC Hydraulic Excavator RTR Metal Construction Vehicle Models Radio Control Digger Engineering Machine FlySky PL18EV

SKU:LS-BA-B0017-MTrack-RTR-PAINTING-RWBK-CX-SPF8

$3,826.90 USD

~~$4,895.20 USD~~ $3,826.90 USD

Sale Ausverkauft

Color Red & White & Black Yellow Gray

Anzahl

#Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled

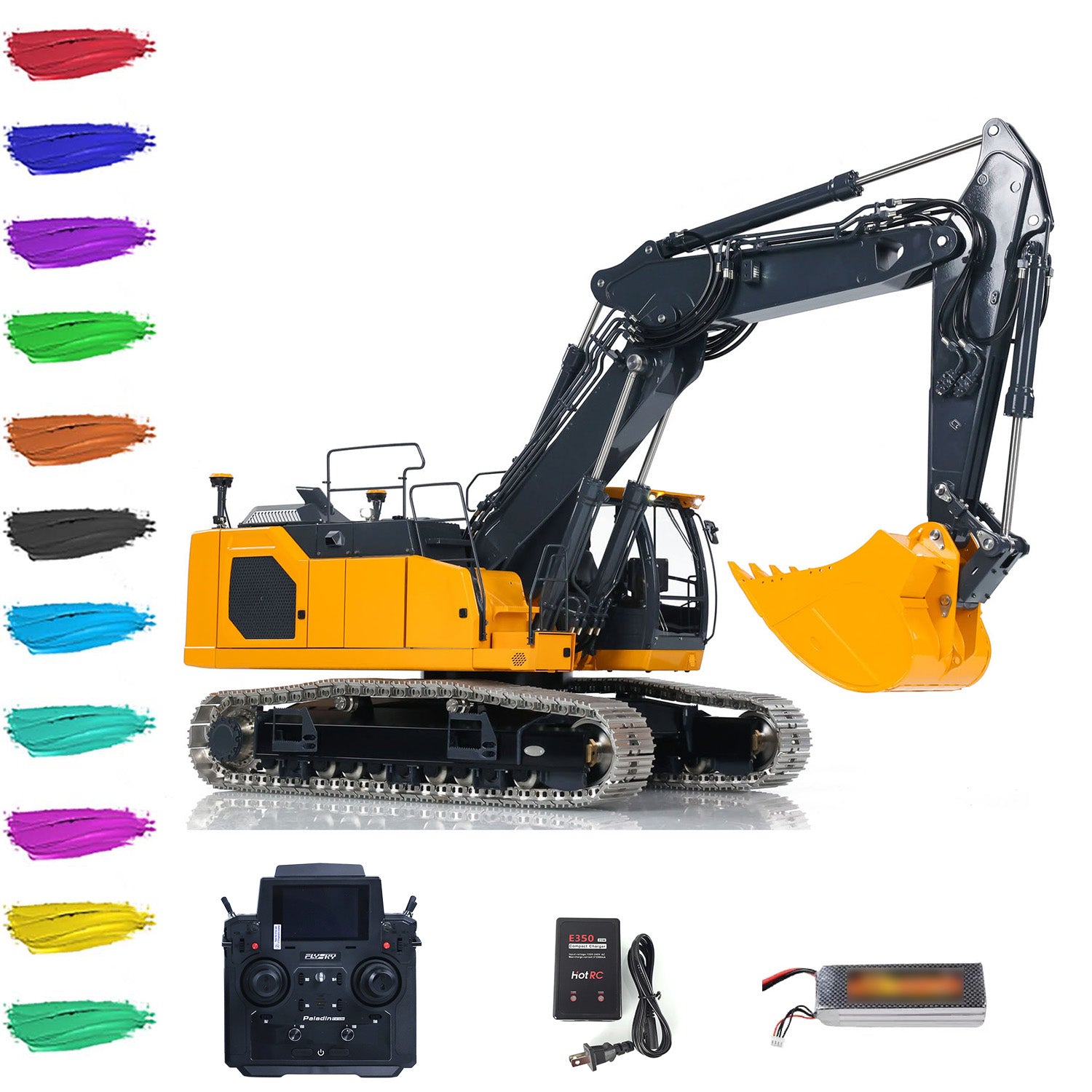

Color: Red&White&Black, Yellow&Gray
Material: Metal, Plastic
Scale: 1/14

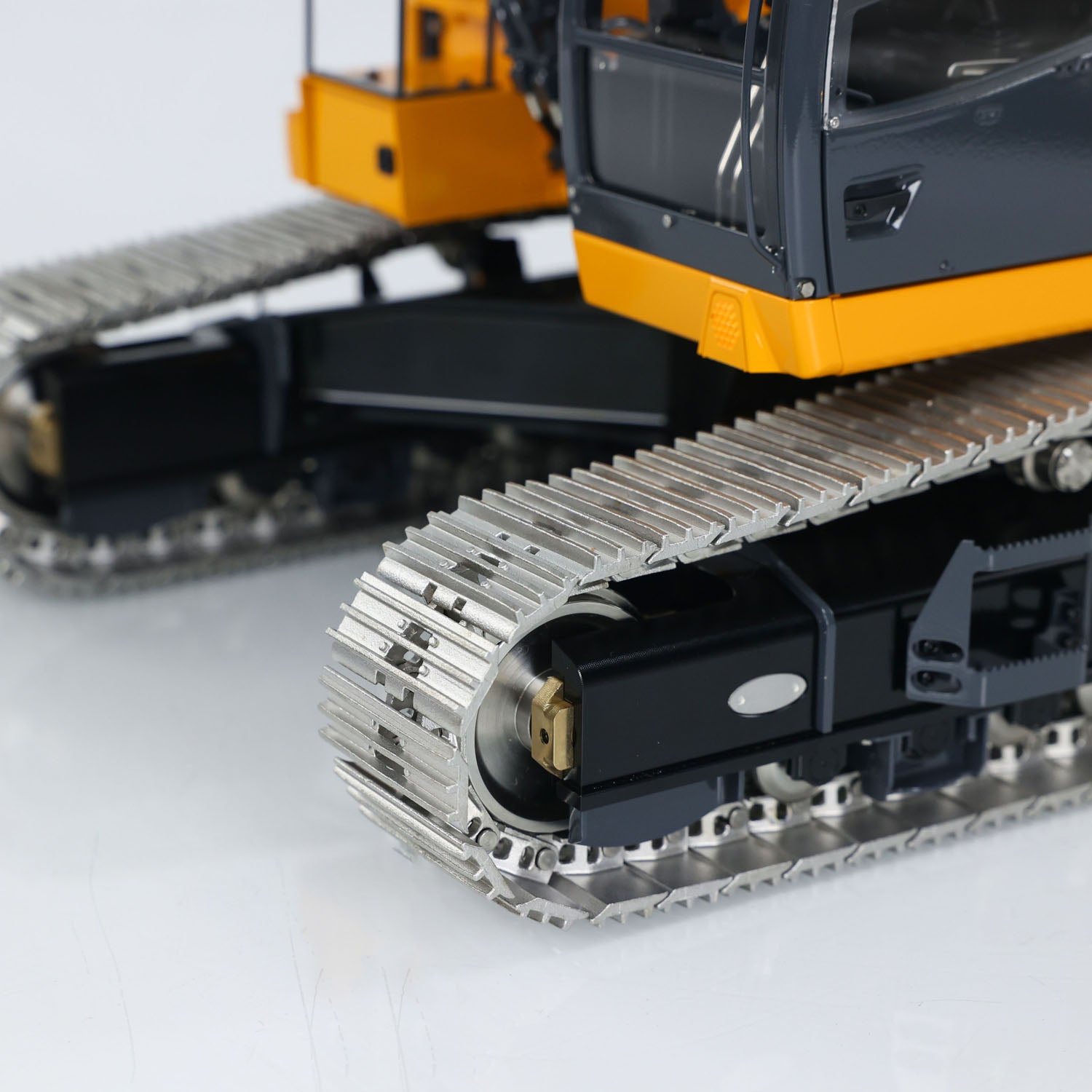

Tracks Color: Black
ID: LS-BA-B0017-MTrack-RTR-PAINTING-RWBK

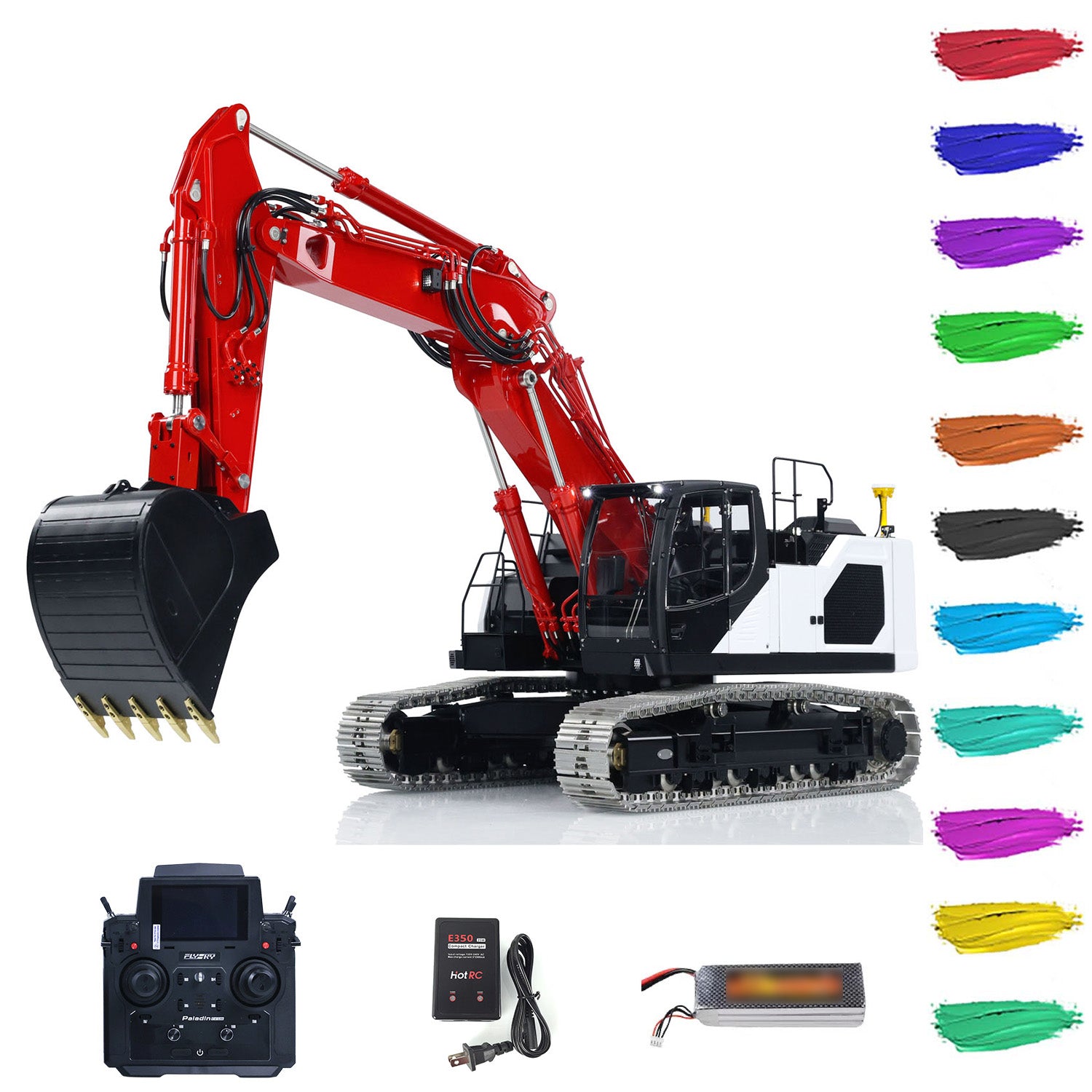

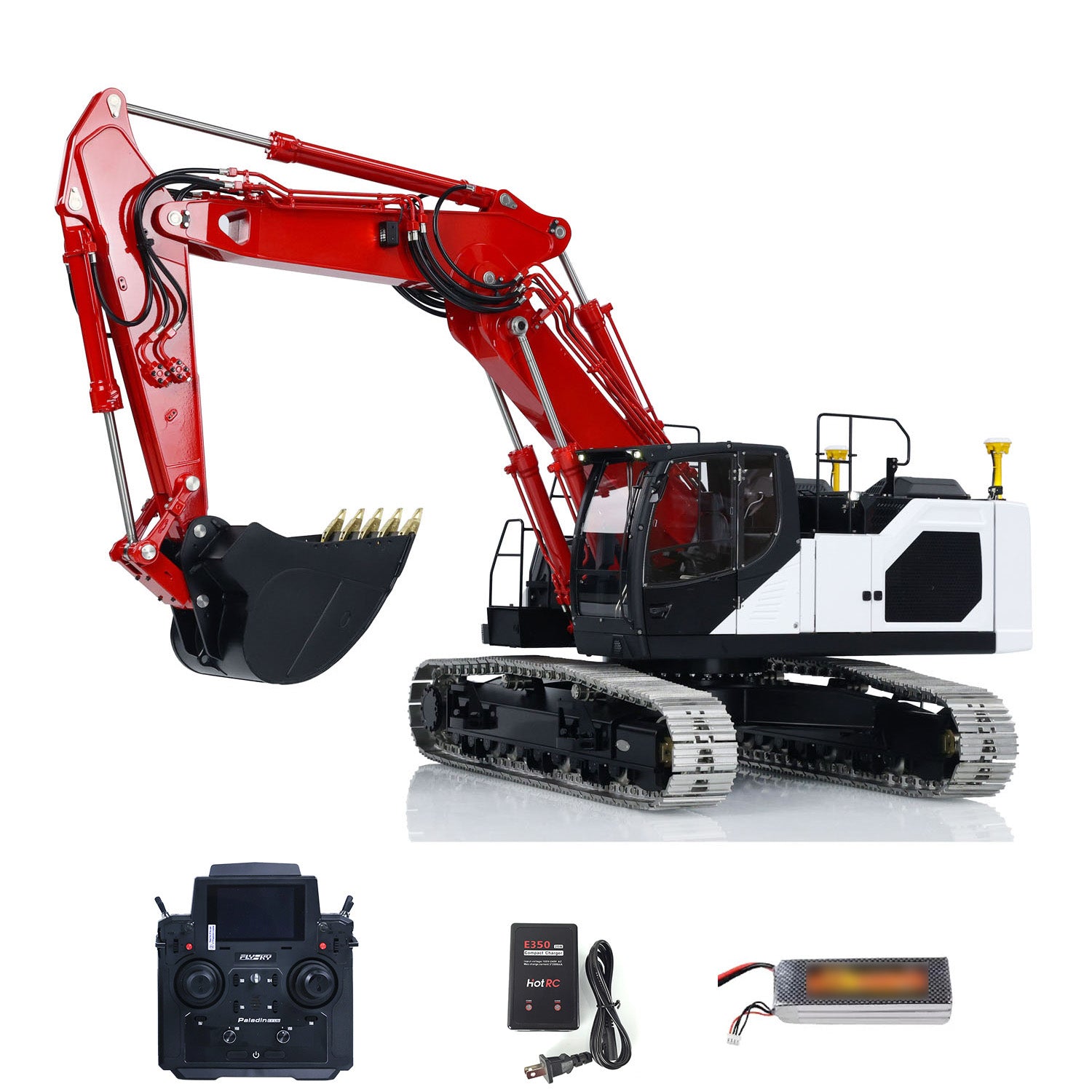

#The Package Includes:
1/14 RC Hydraulic Excavator Model
Motor
Servo
ESC

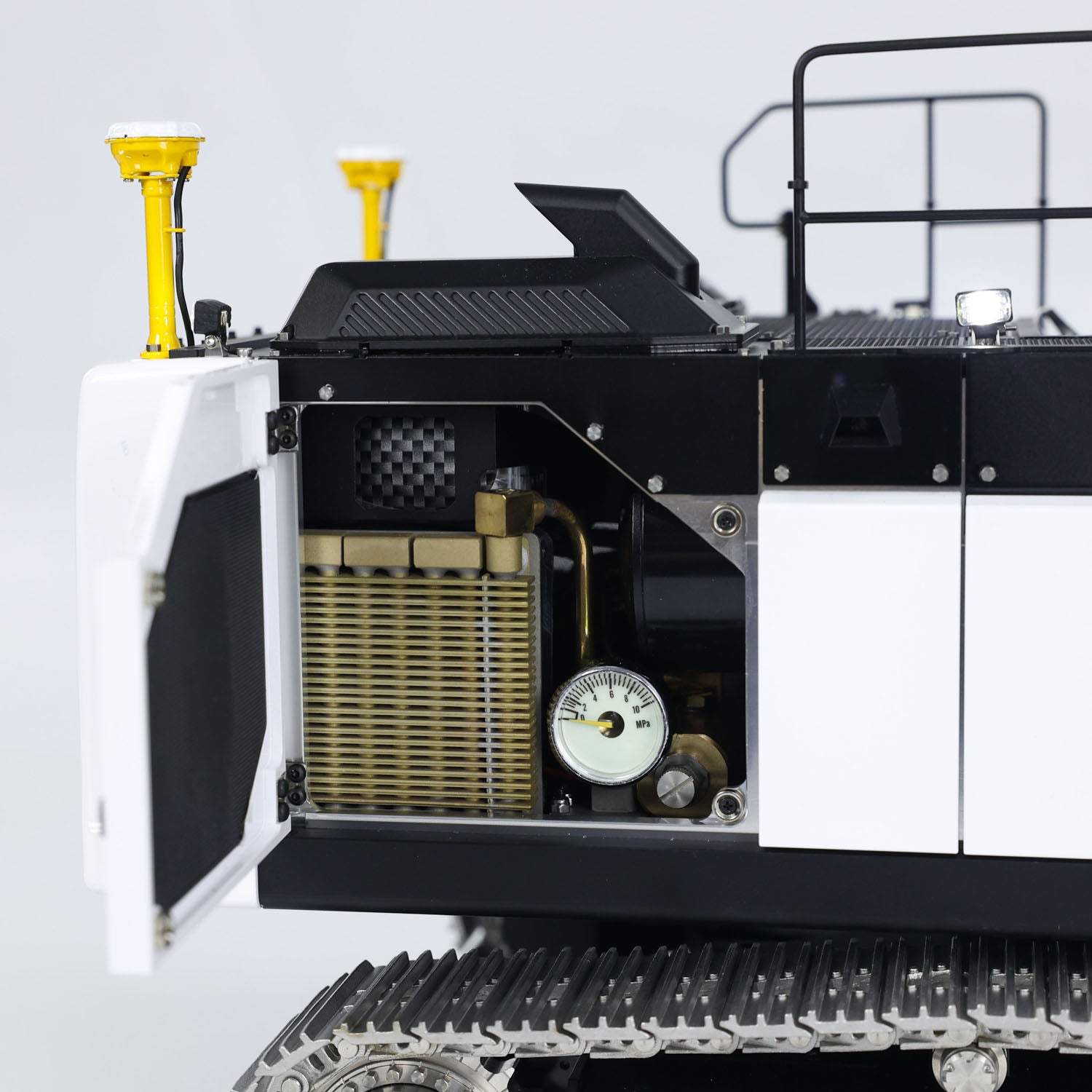

Hydraulic System
Light System
FlySky PL18EV Lite Remote Controller and Receiver
Battery
Charger

#The Package Does Not Include:
Sound System
Hydraulic Oil

#Parameter:
Cab top height from ground/mm: 226.3
Maximum digging depth/mm: 454
Working platform bottom height from ground/mm: 86.2
Maximum digging radius/mm: 728.9
Total length of tracks/mm: 382.6
Maximum digging radius from ground/mm: 761.6
Wheelbase of driving wheel and guide wheel center/mm: 315
Track gauge/mm: 250.7
Bottom height of X-frame from ground/mm: 38.4
Track width/mm: 43
Minimum turning radius/mm: 166.7
Total width of excavator/mm: 268.3
Maximum digging height/mm: 858.5
Travel driving wheel speed (r/min): 48
Rotation speed (r/min): 10
Travel driving reduction ratio: 1:139
Rotation driving reduction ratio: 1:20
Number of directional valve: 7
Rotation motor speed (r/min): 1500
Number of hydraulic pumps: 1
Maximum pressure of hydraulic workstation/MPa: 4
Rated pressure of hydraulic workstation/MPa: 3

#Features:
1. Three-section digging arm design with a large cylinder body for more flexible retraction.
2. Utilizes newly designed relief valves for a more reliable hydraulic system.
3. 80% of the hydraulic system consists of copper welding, and 90% of the machine is made of metal materials.
4. Modular design for the entire machine, with aluminum alloy excavator arm and counterweight processed using CNC machining.

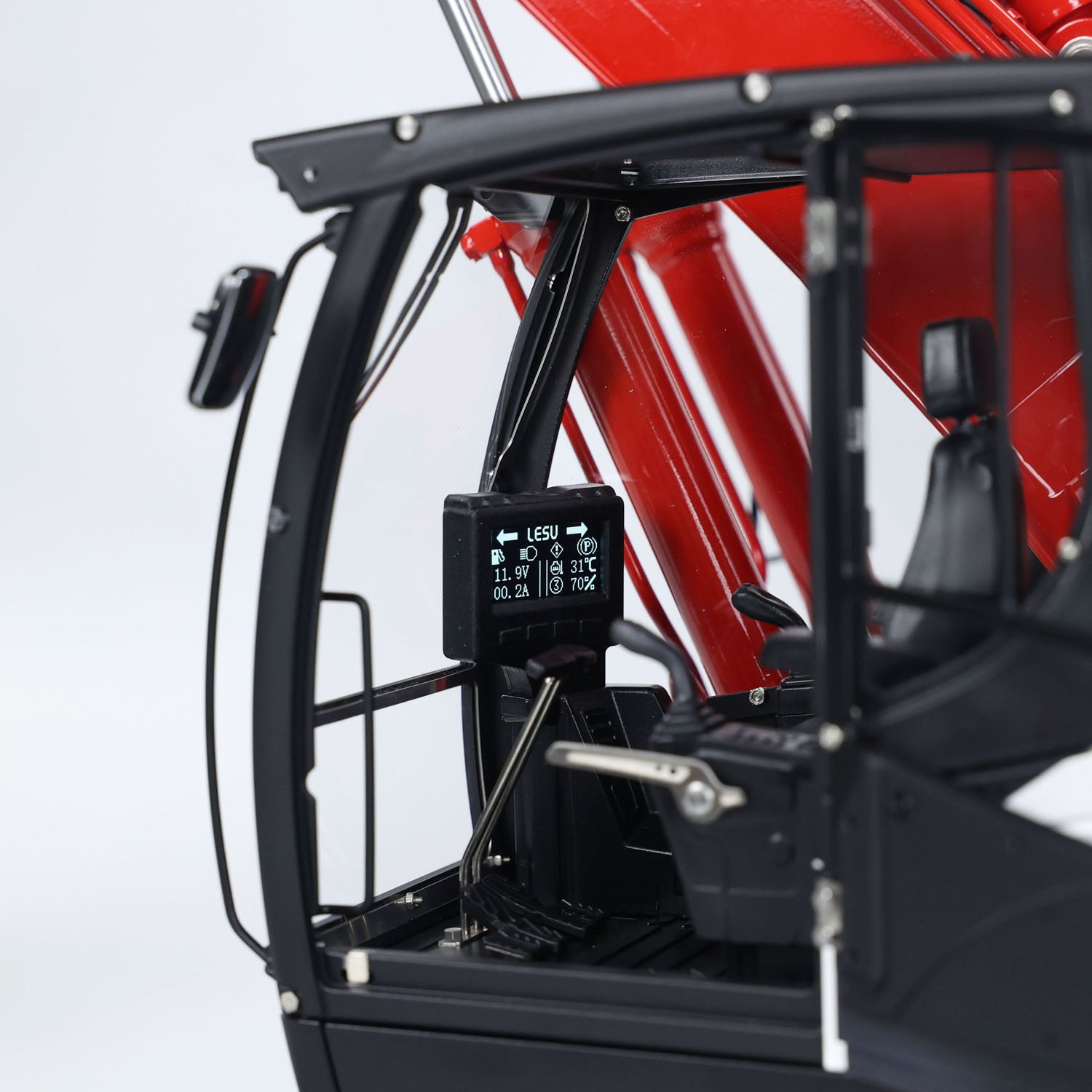

5. Equipped with full machine lighting and a simulated electronic display.
6. Precision hydraulic system ensures coordinated, smooth, and linear movements.
