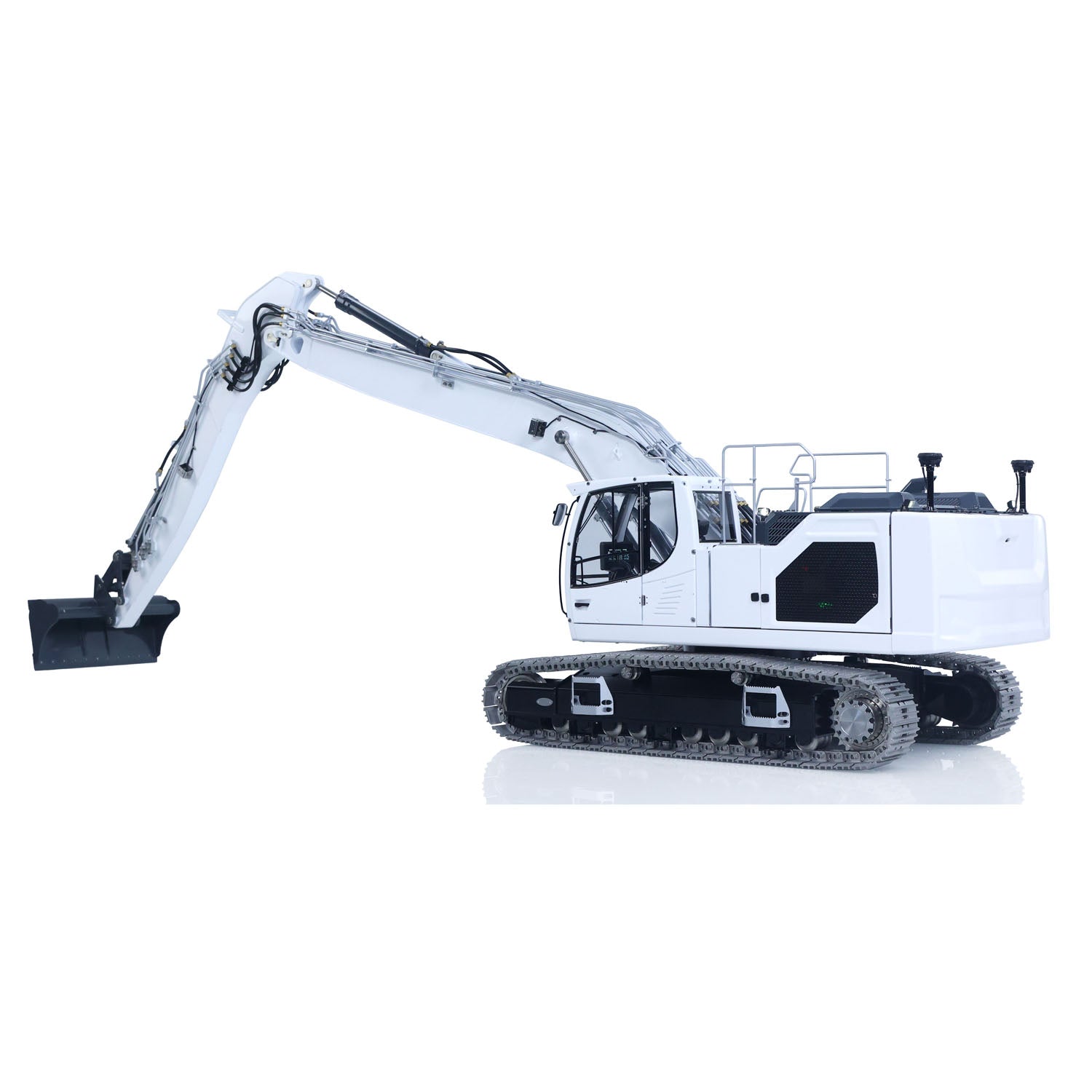

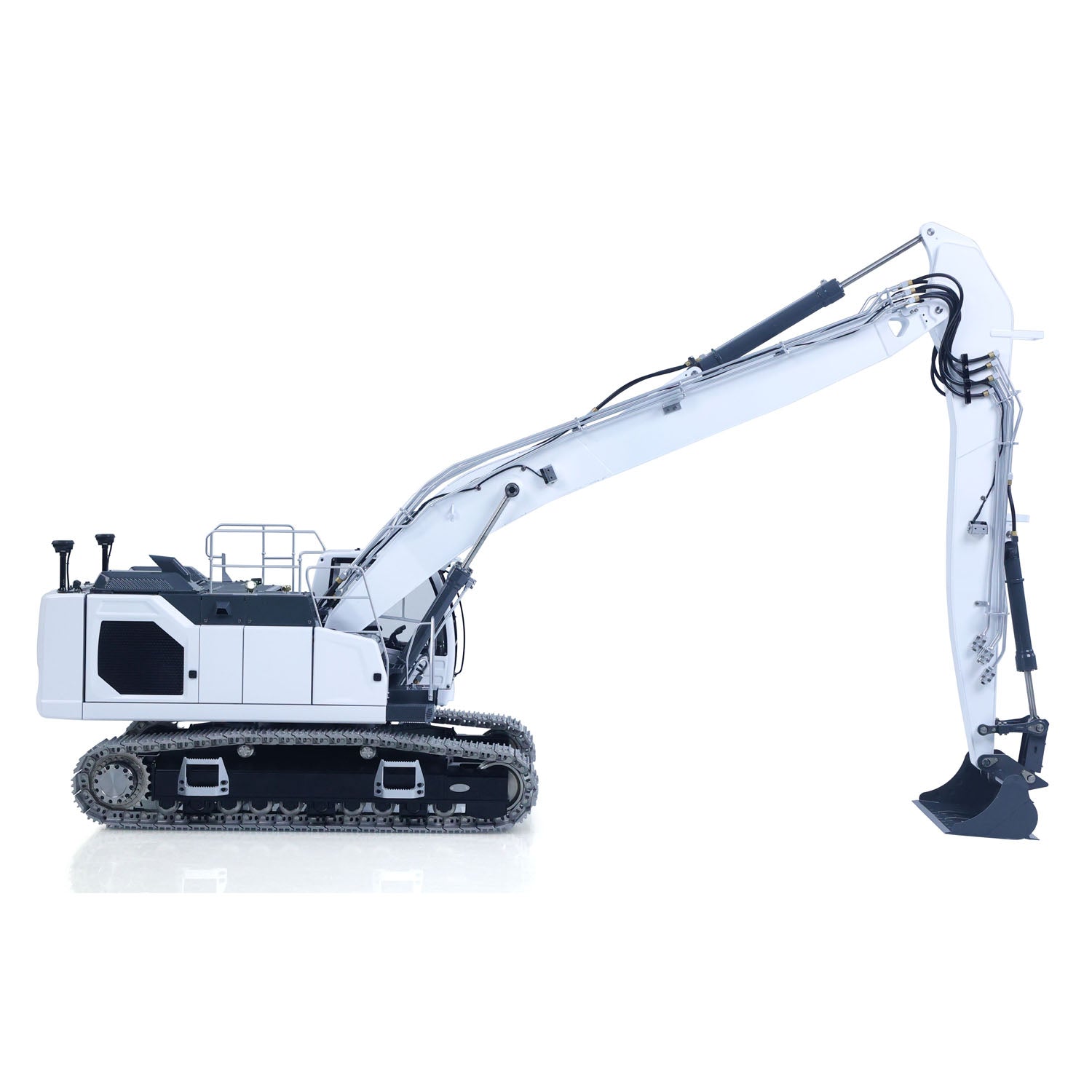

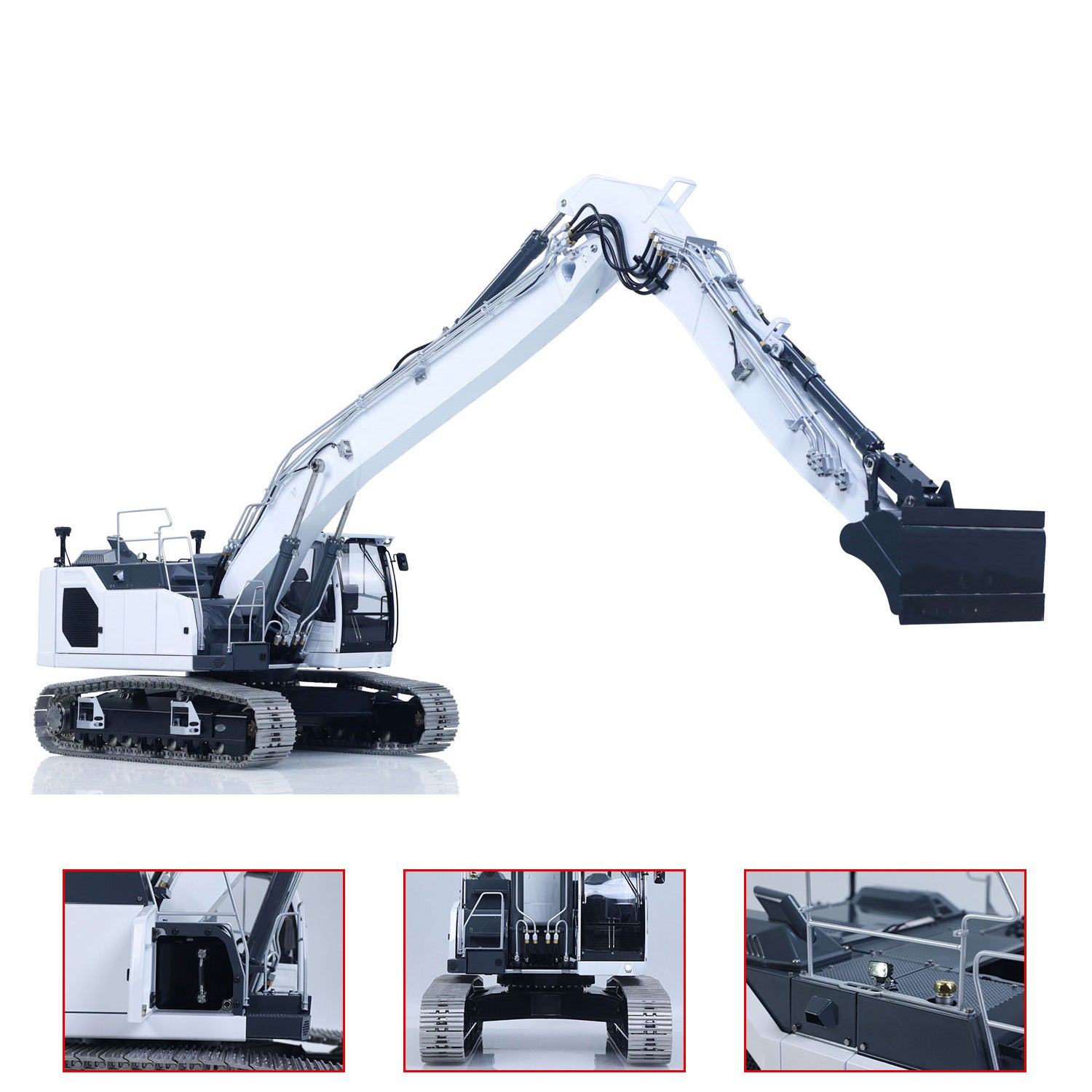

LESU AOUE LR945 1/14 RC Long-reach Hydraulic Excavator CNC Extended Arm Radio Control Digger Model Light 7CH Valve 4MPa Pump Assembled PNP

LESU AOUE LR945 1/14 RC Long-reach Hydraulic Excavator CNC Extended Arm Radio Control Digger Model Light 7CH Valve 4MPa Pump Assembled PNP

LS-BA-B0034-MTrack-PNP-W-CX-SPF8

$3,159.90 USD
$3,989.00 USD $3,159.90 USD
Sale Ausverkauft

#Specification:
Manufacturer: LESU
Item Condition: New, Painted and Assembled
Material: Metal, Plastic
Scale: 1/14
Product Net Weight: 18.9KG
Wheelbase: 315MM

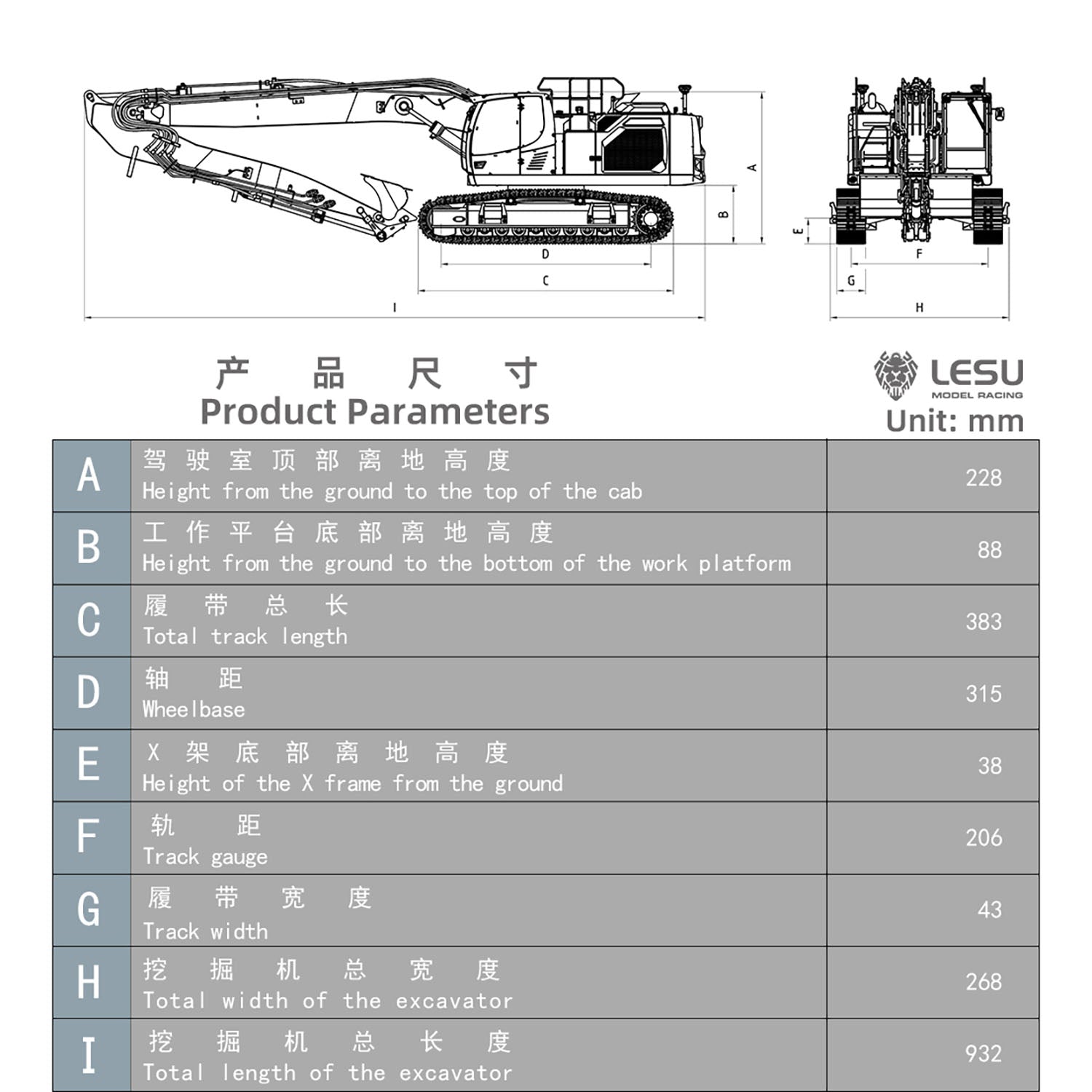

Product Dimensions: 932x268x228MM
Height from Top of Cab to Ground /mm: 228
Wheelbase (Center Distance Between Drive Wheel and Idler Wheel) /mm: 315
Height from Bottom of Working Platform to Ground /mm: 88
Track Gauge /mm: 206
Total Track Length /mm: 383
Track Width /mm: 43
Height from Bottom of X-Frame to Ground /mm: 38
Total Excavator Width /mm: 268

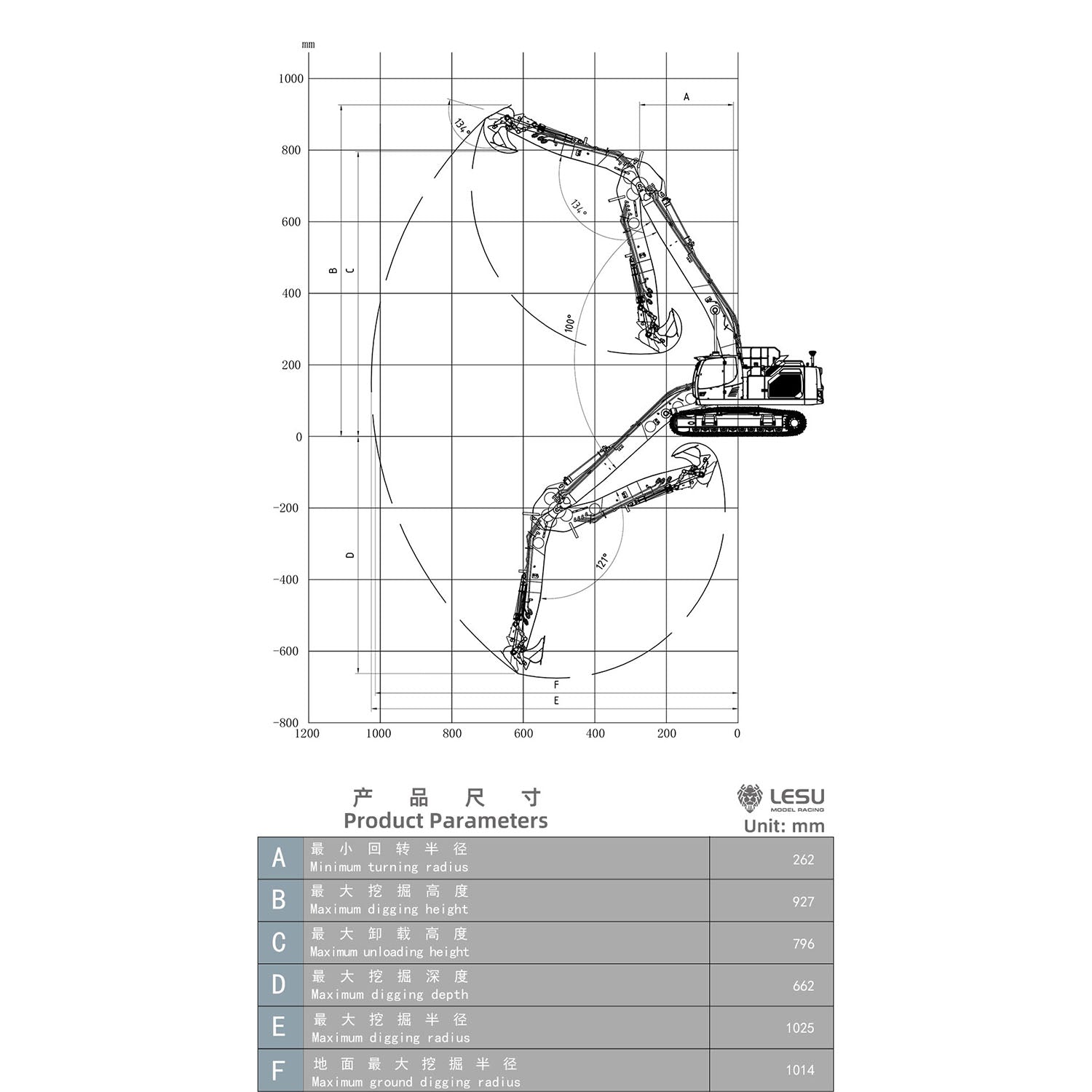

Minimum Swing Radius: 262MM
Maximum Digging Depth: 662MM
Maximum Digging Height: 927MM
Maximum Digging Radius: 1025MM
Swing Speed (r/min): 12
Maximum Ground Digging Radius: 1014MM
Swing Drive Reduction Ratio: 1:208
Travel Drive Wheel Speed (r/min): 25
Swing Motor Speed (r/min): 2500
Travel Drive Reduction Ratio: 1:520
Maximum Pressure of Hydraulic Station /MPa: 4
Travel Motor Speed (r/min): 13200
Rated Pressure of Hydraulic Station /MPa: 3
Number of Directional Valve Ports: 7
Number of Hydraulic Pumps: 1
ID: LS-BA-B0034-MTrack-PNP-W
?
#The Package Includes:
1/14 RC Hydraulic Excavator Model
Motor
Servo
ESC
Hydraulic System
Light System

#The Package Does Not Include:
FlySky PL18EV Lite Remote Controller and Receiver
Battery
Sound System
Charger
Hydraulic Oil

#Feature:?

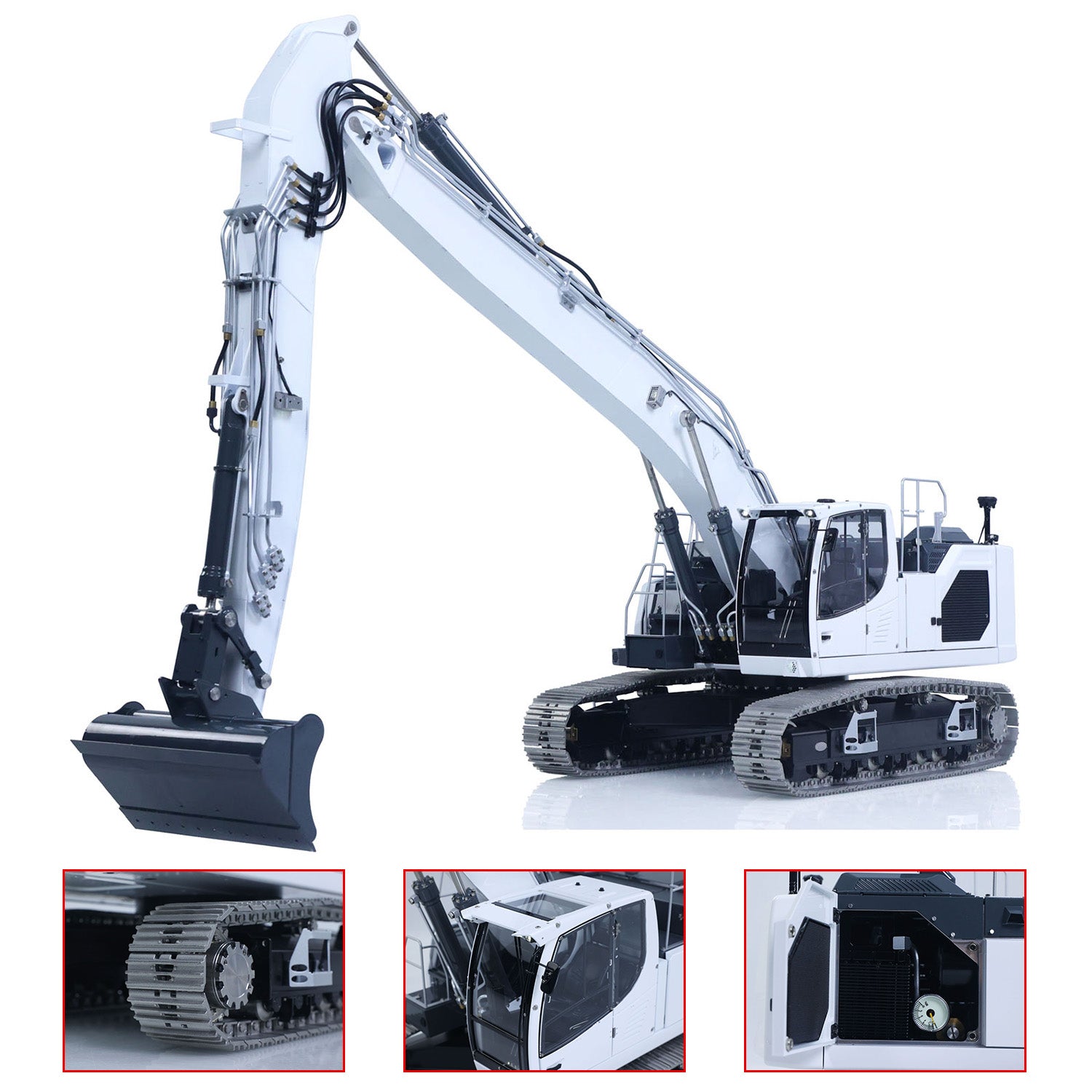

1. Precision hydraulic system with excavator arm for more coordinated, smooth and linear movements; long-reach arm and large cylinder design for wider working range.

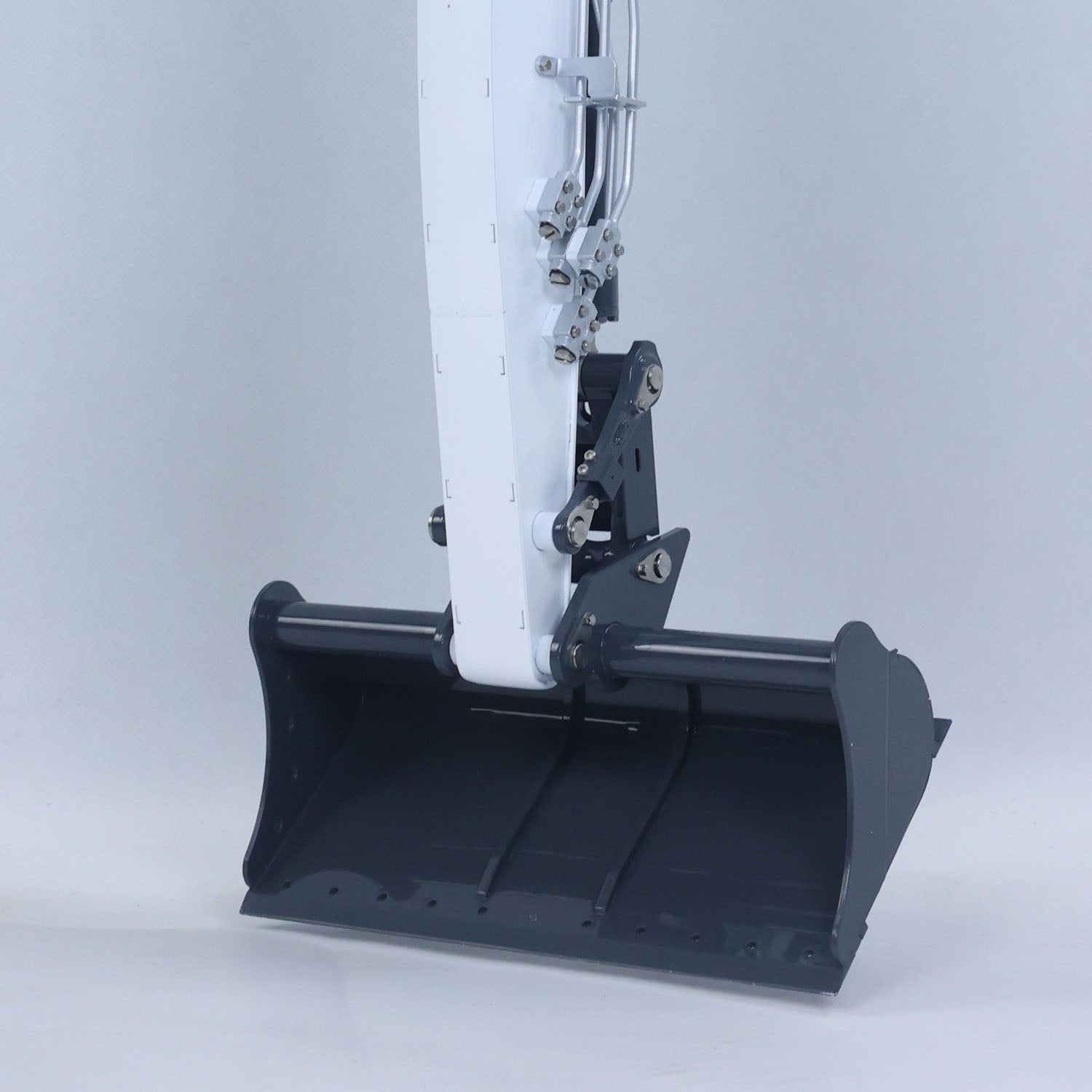

2. Whole-machine modular design; stainless steel excavator arm and aluminum alloy counterweight; counterweight processed by CNC for more detailed and realistic appearance.

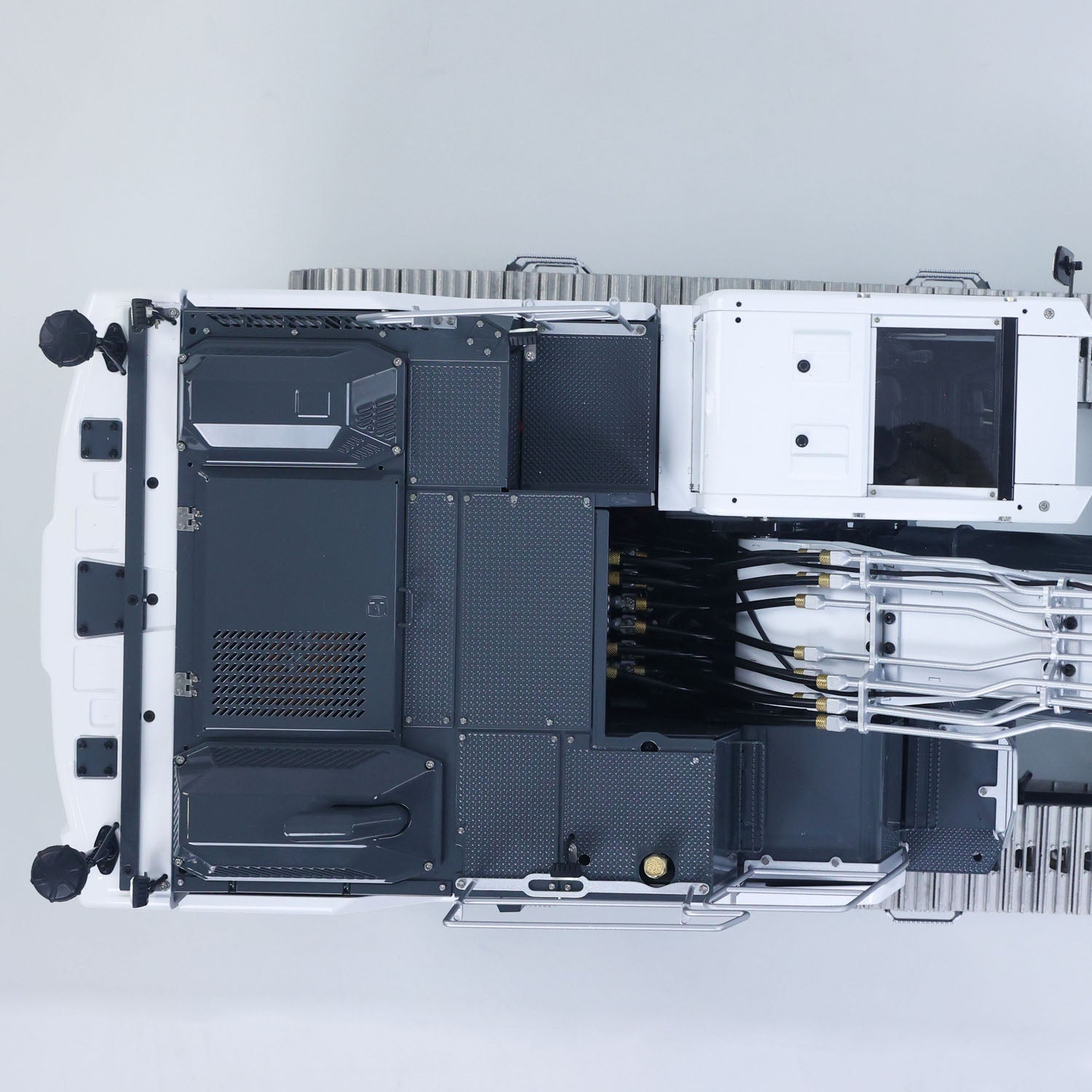

3. 80% full copper welding for the fixed oil circuit system; 90% metal material for the whole excavator.

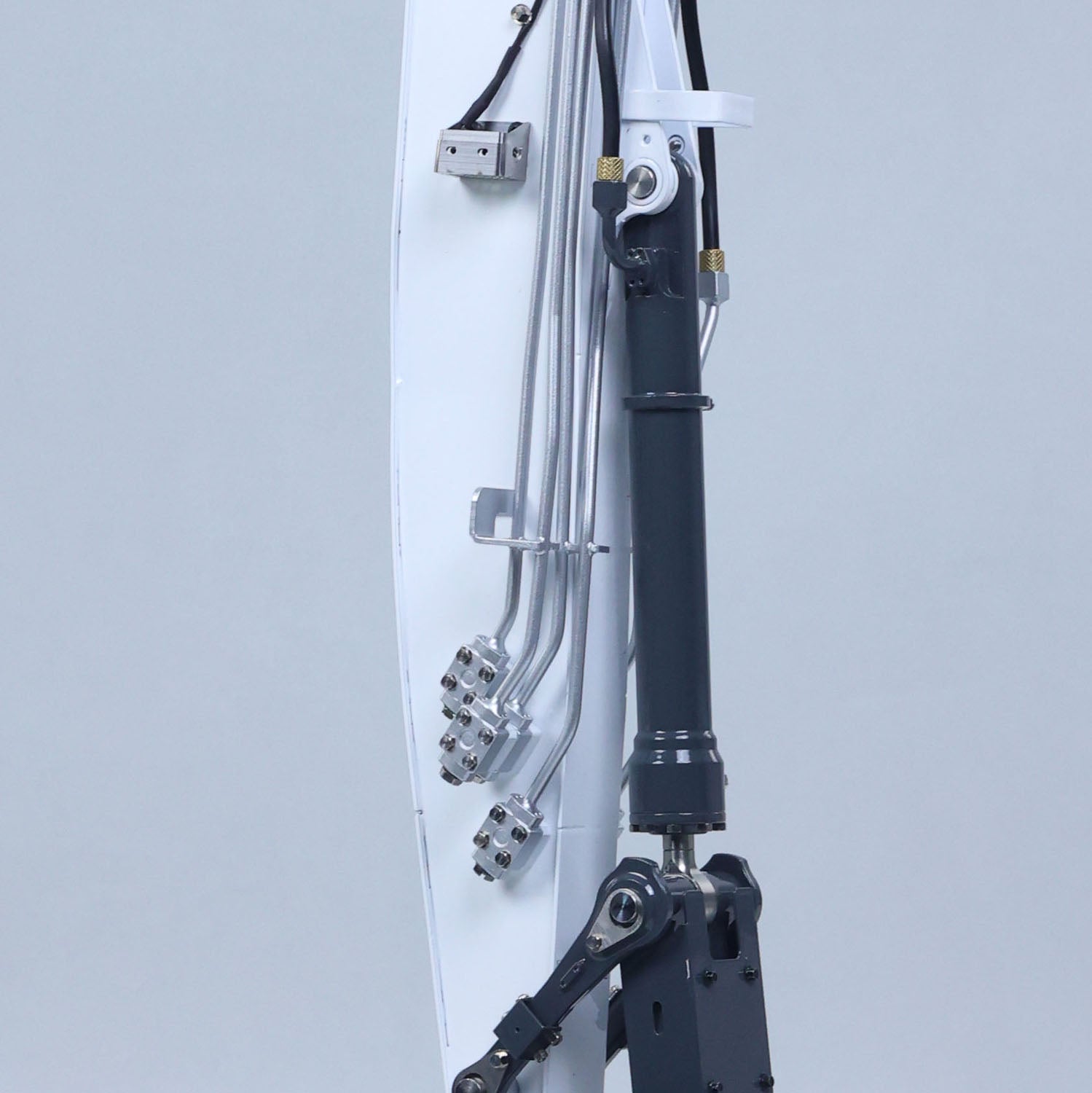

4. Equipped with 7-channel directional valve and 4 sets of hydraulic cylinders; the boom reserves 3-way oil circuit expansion function.

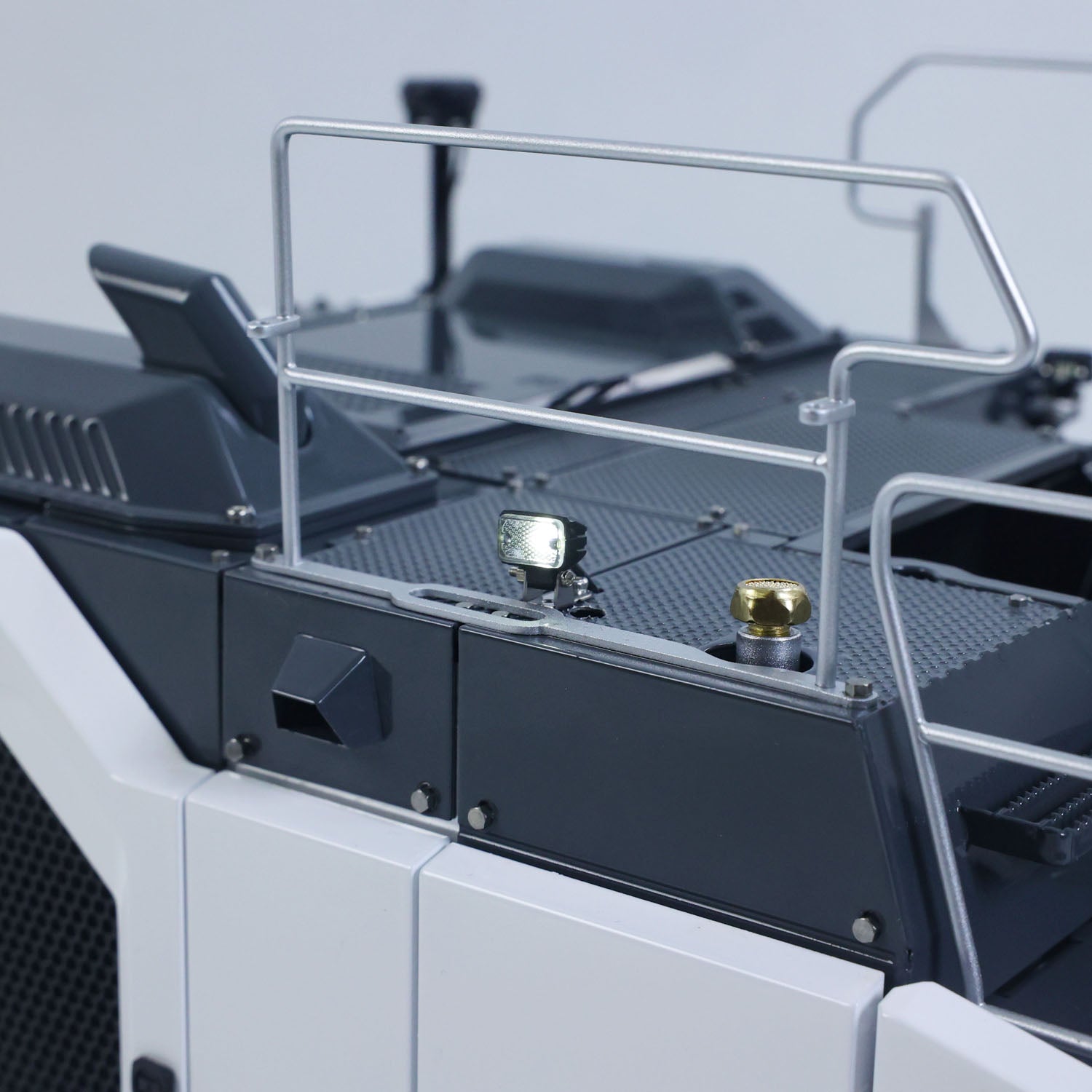

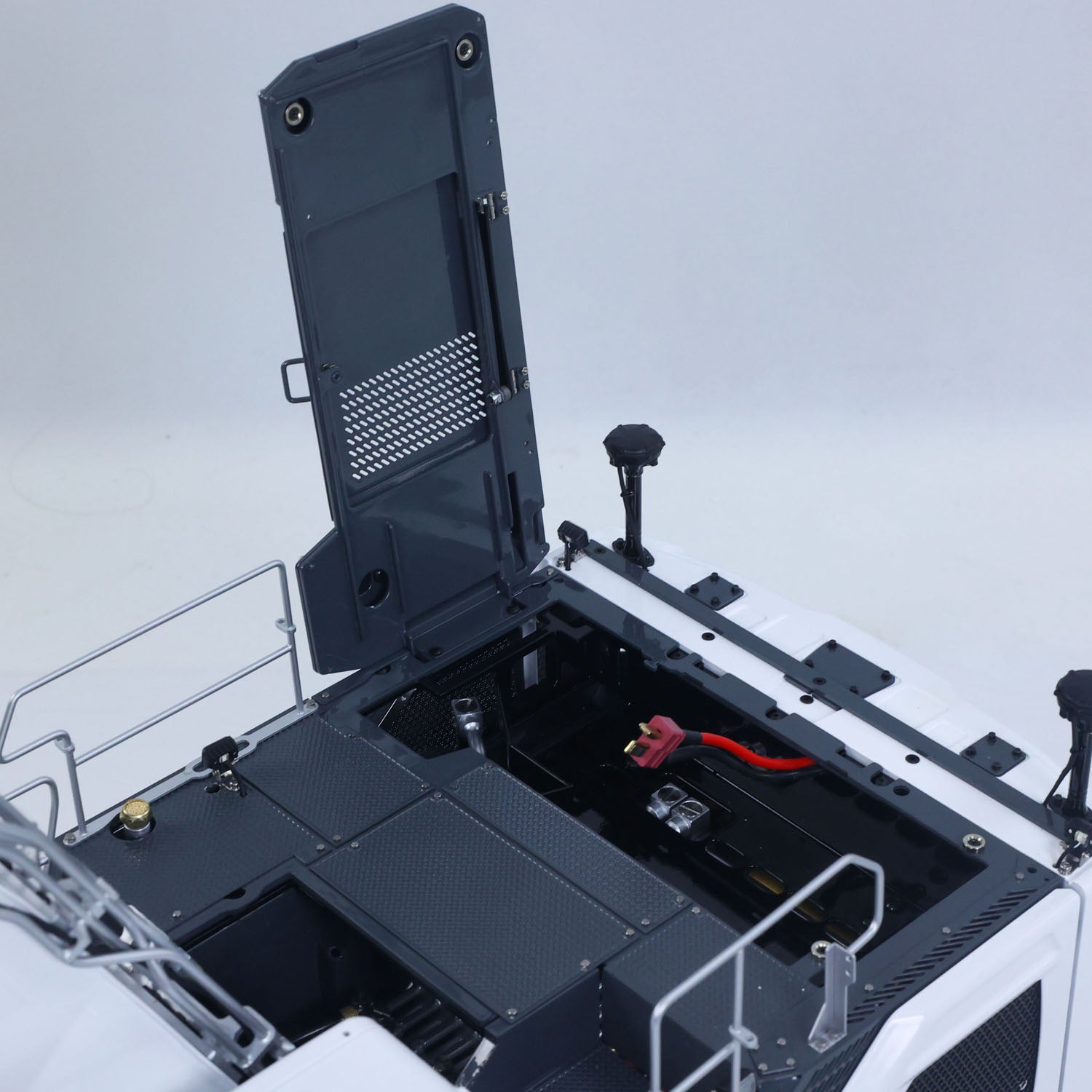

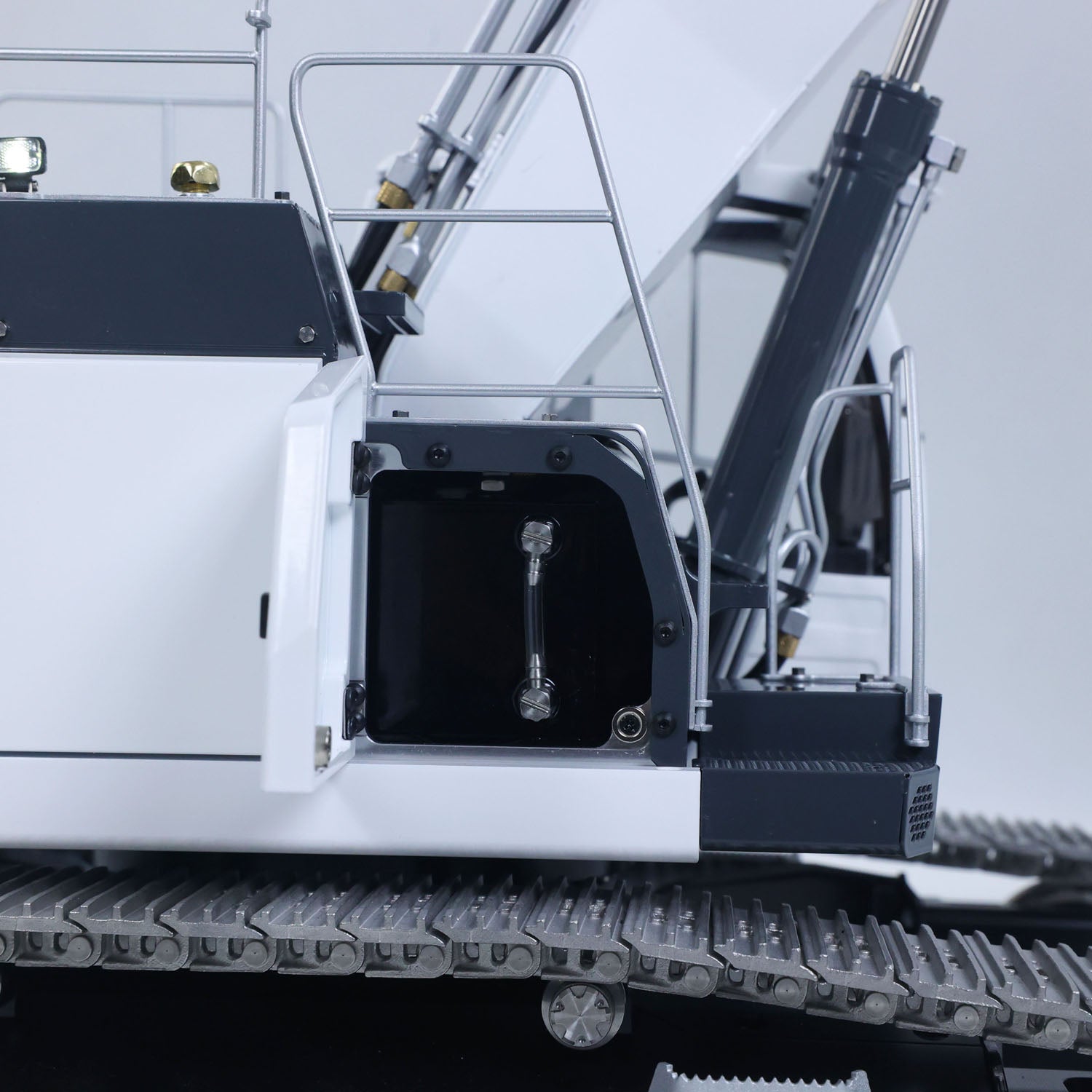

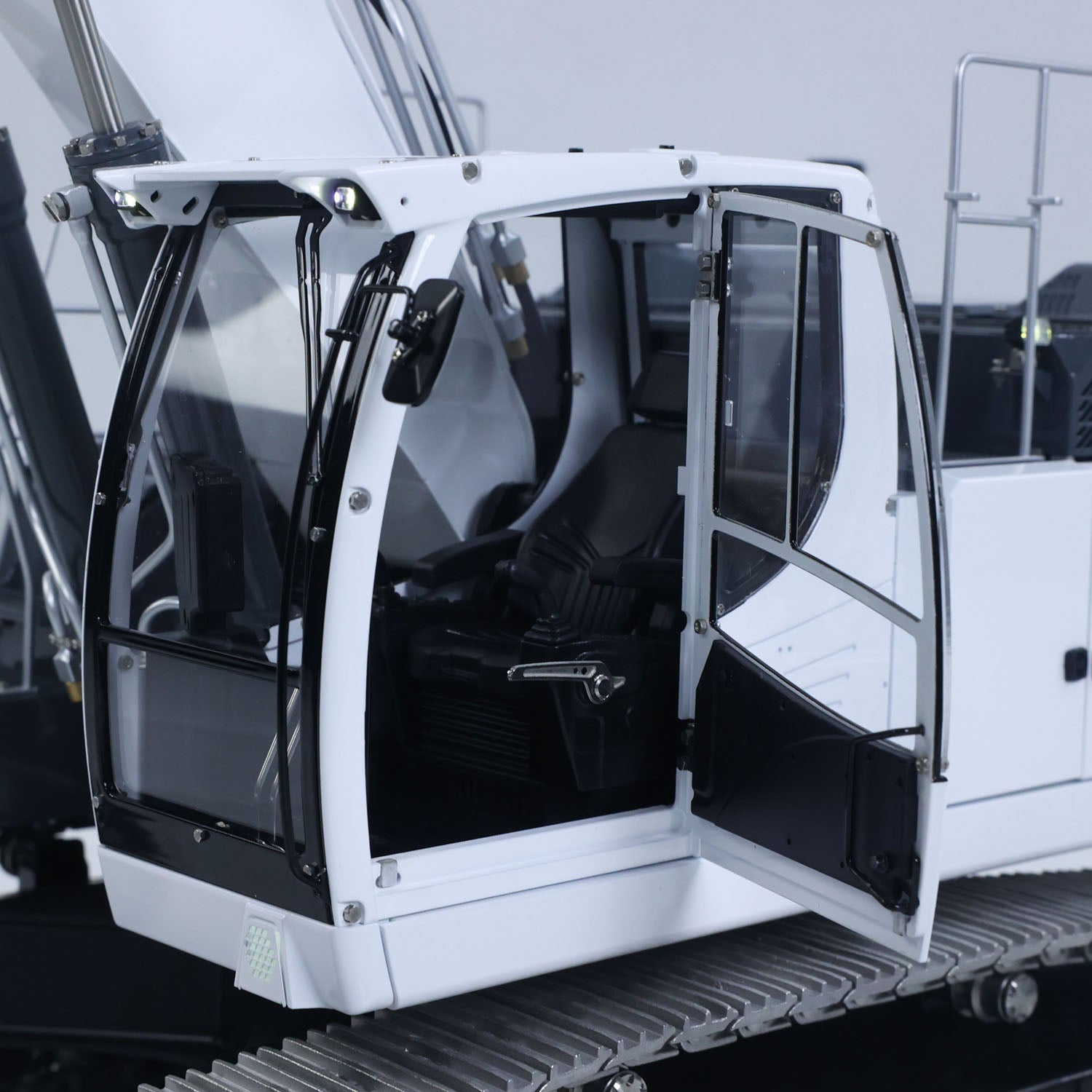

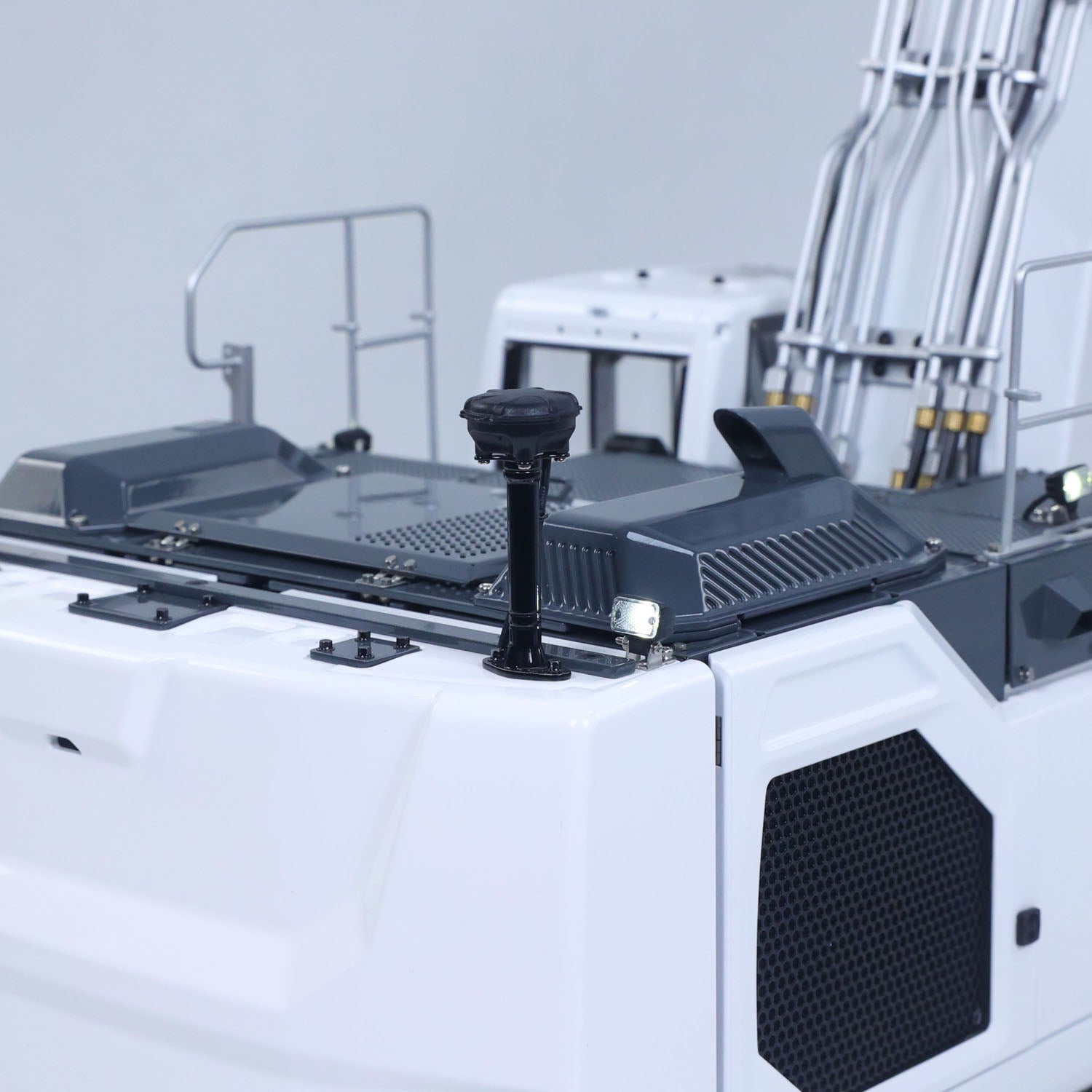

5. 7 openable doors of the whole excavator; it has 9 LED lights, 2 GPS lights and a light controller for more convenient operation.

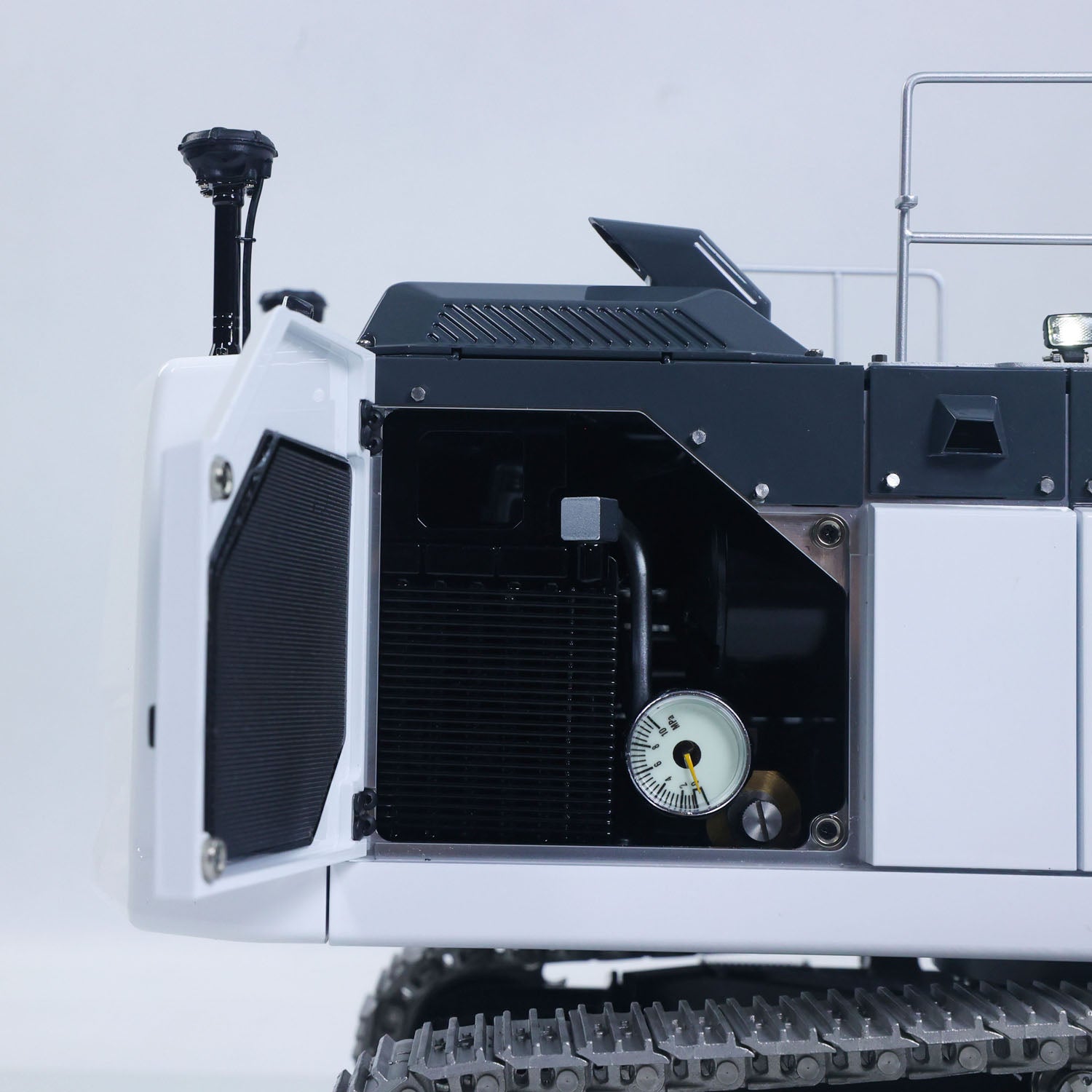

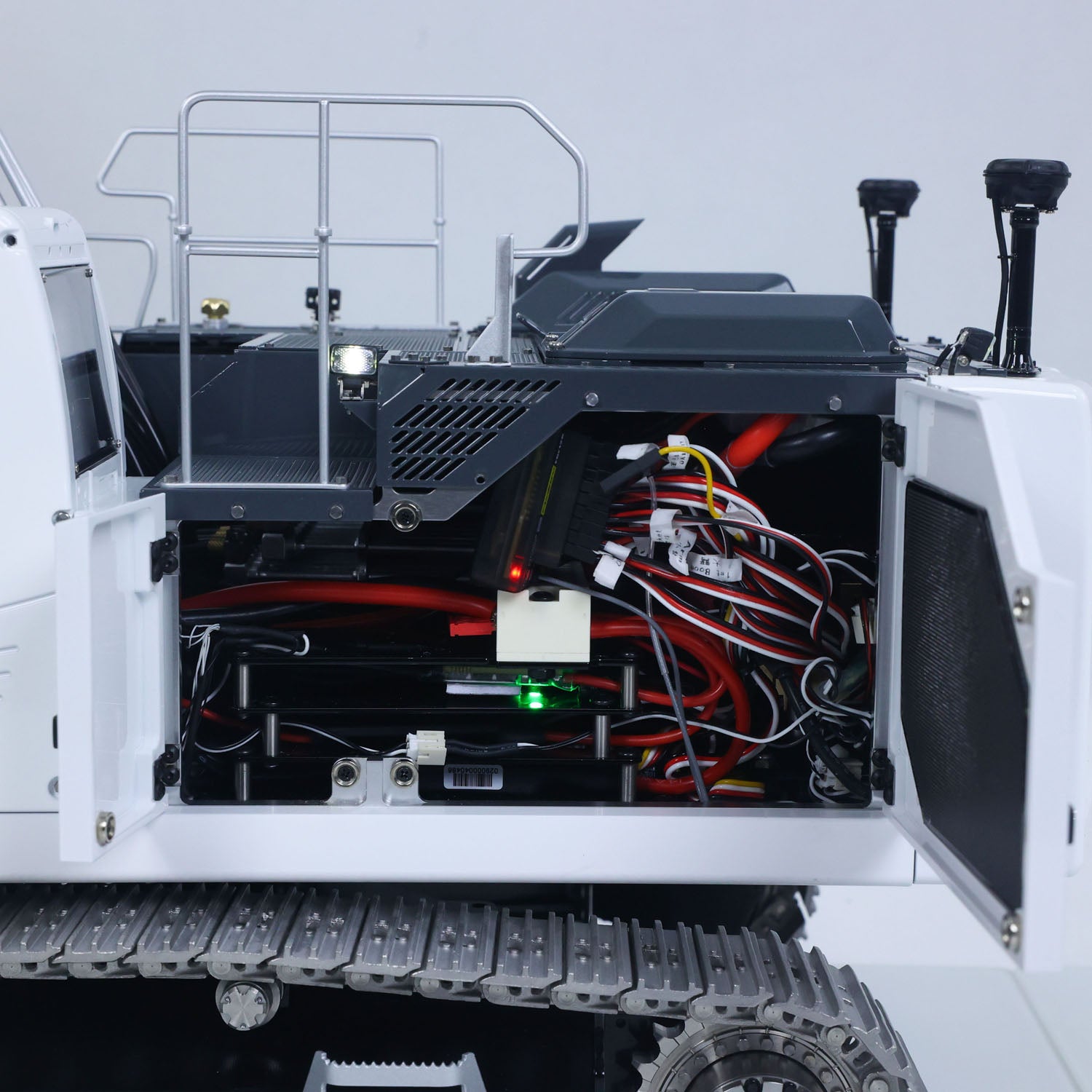

6. Independent and innovative hydraulic station (including oil pump, motor, radiator, oil valve, filter, pressure gauge, oil tank relief valve, etc.).
7. Brushless motor power drive with planetary reduction; equipped with high-torque drive wheels, featuring high efficiency, low heat generation, large low-speed torque and smooth operation; full-metal traveling track for better adaptation to various terrains.
8. The swing system is equipped with a 6-channel electrical slip ring, enabling this excavator to rotate 360¡ã smoothly and enhancing the playability of this excavator.?

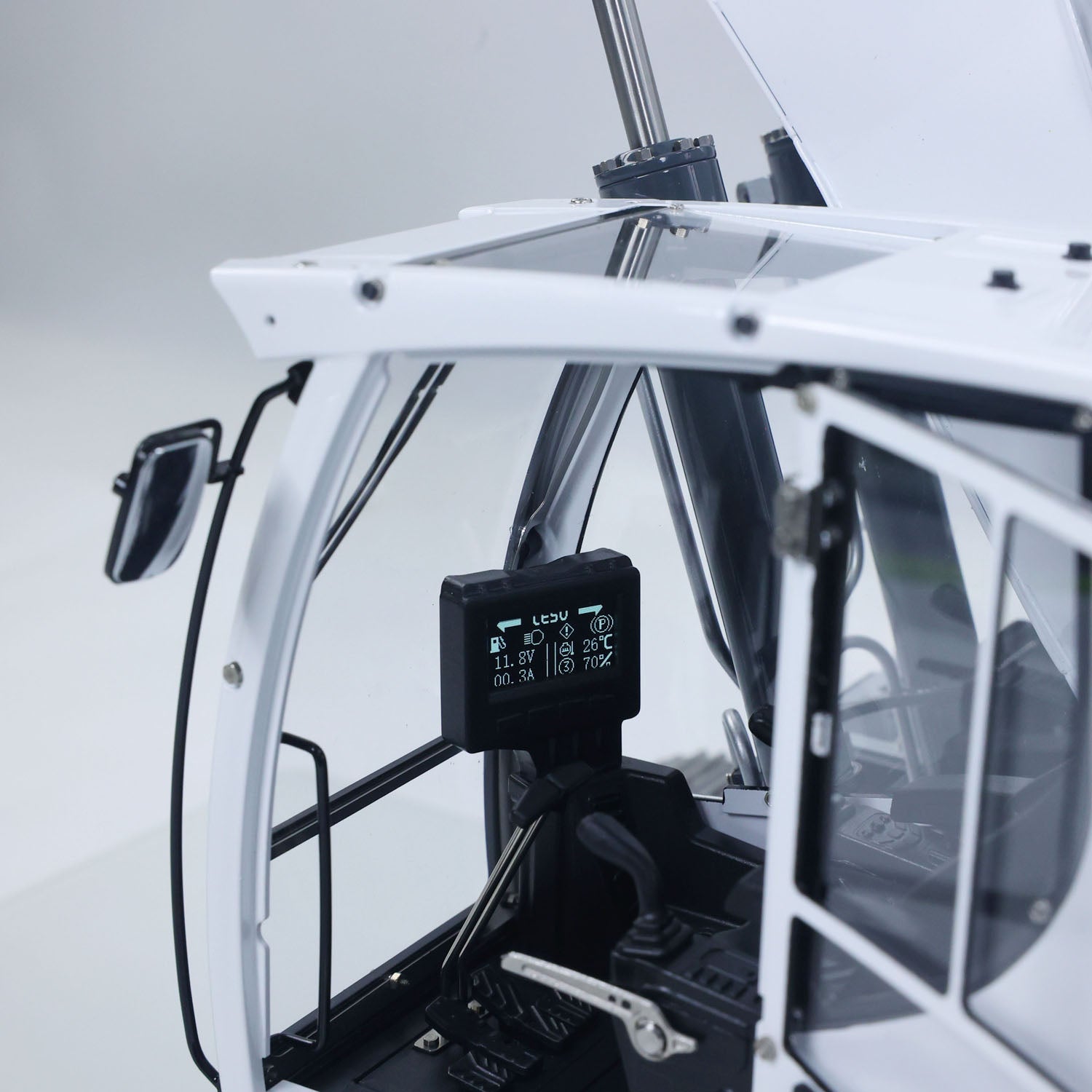

9. The excavator cab is equipped with a liquid crystal display that shows oil temperature and voltage conditions.


#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.
