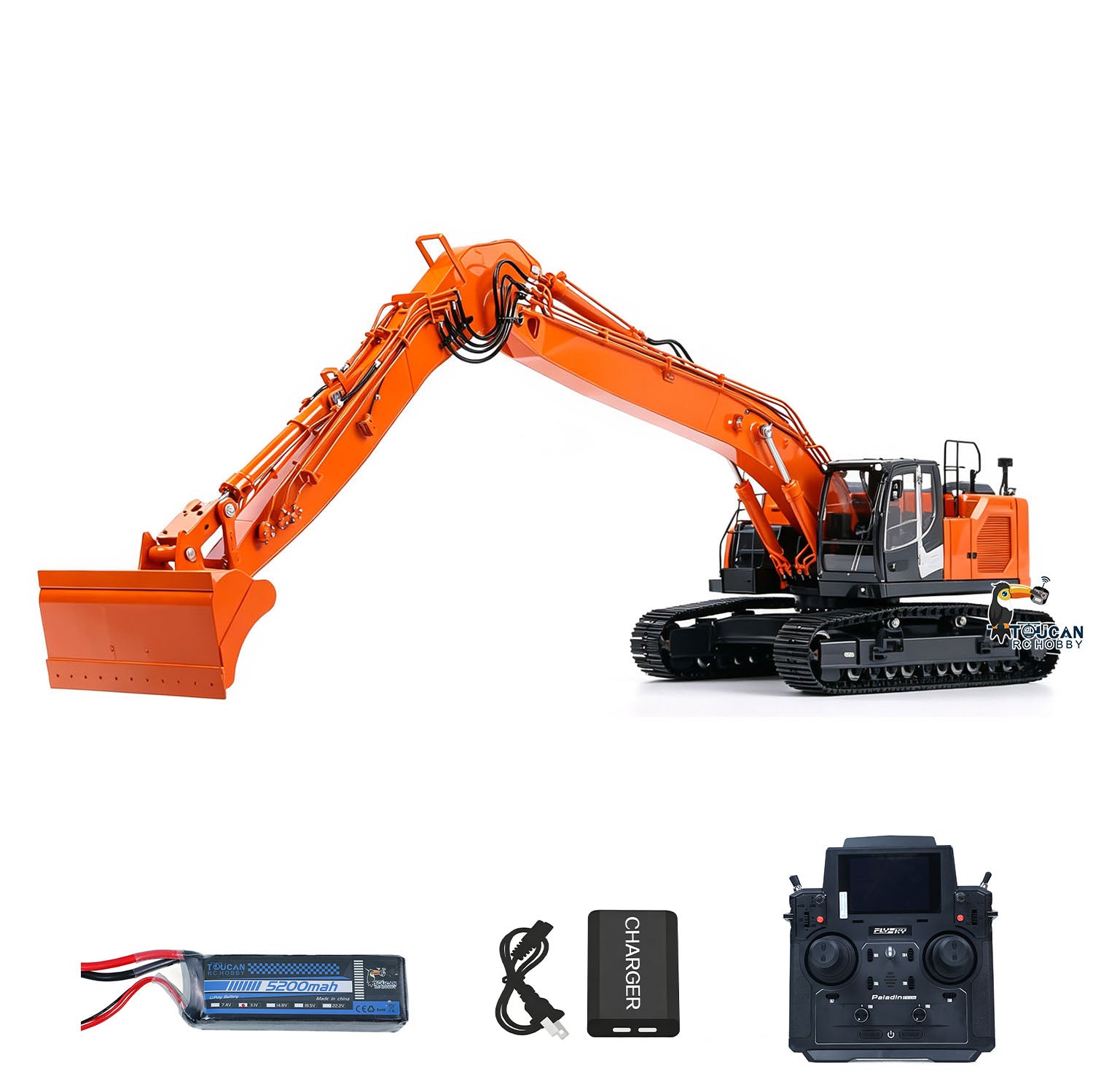

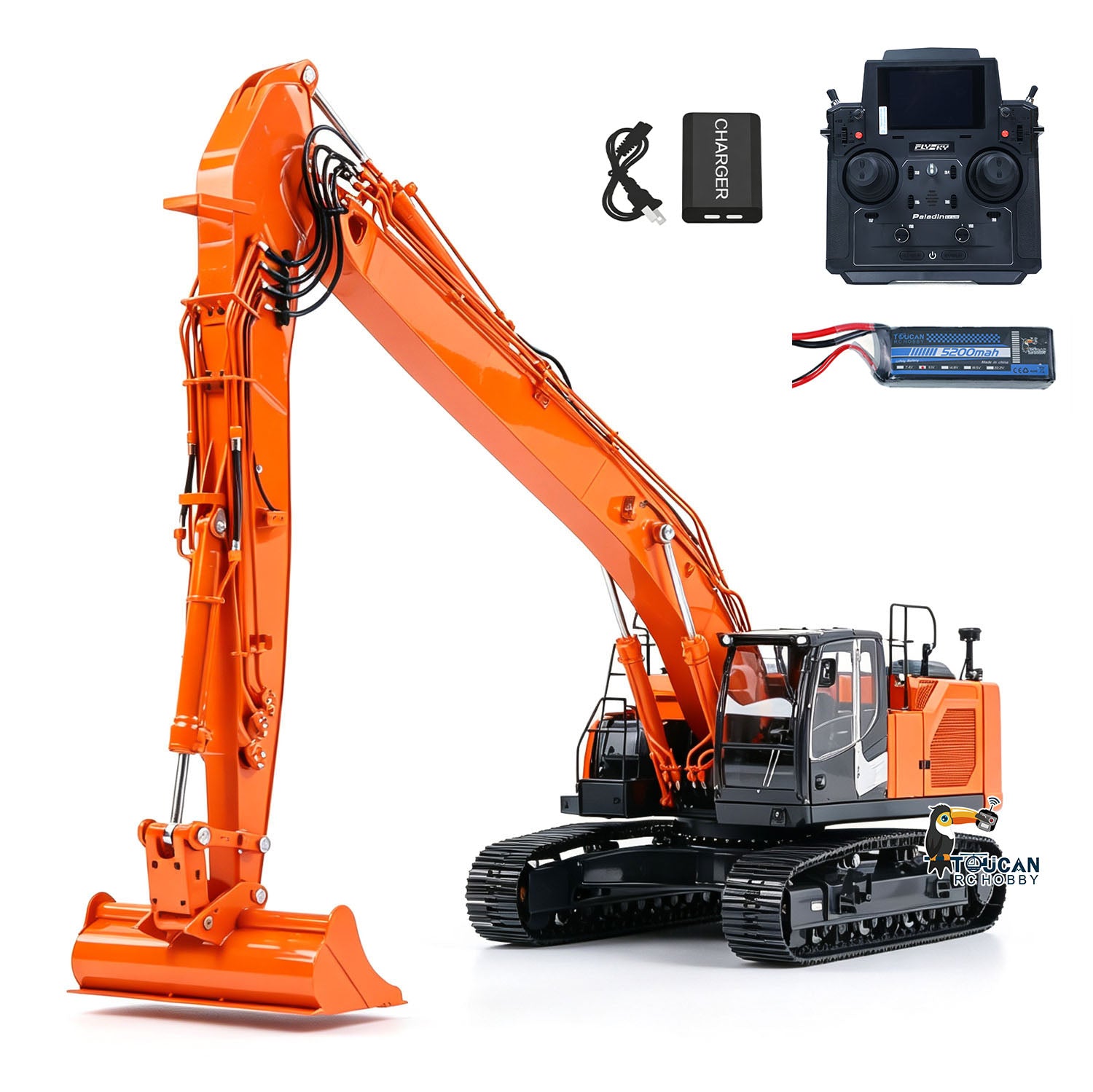

LESU 1/14 Metal RC Hydraulic Excavator AOUE LR945 CNC Long Reach Digger RTR 7CH PL18EV LITE Radio Battery Light Sound Charger

LESU 1/14 Metal RC Hydraulic Excavator AOUE LR945 CNC Long Reach Digger RTR 7CH PL18EV LITE Radio Battery Light Sound Charger

LS-BA-B0034-MTrack-RTR-PENQI-OG-SPF8

$4,211.90 USD
$4,211.90 USD
Sale Ausverkauft

#Specification:
Brand:LESU
Item Condition: New,Assembled and Painted
Material: Metal, Plastic
Scale: 1/14
Size: 932*268*228MM/36.69*10.55*8.98in
Net Weight: 18.9KG
Directional Valve: 7CH
Oil Pump: Rated pressure 3 MPa, Max. pressure 4 MPa
Motor of Pump: Brushless Motor
ESC of Pump: Brushless ESC
Wheelbase: 315mm / 12.4in
Height from Top of Cab to Ground: 228mm / 9.0in
Wheelbase (center distance between drive sprocket and idler): 315mm / 12.4in
Height from Bottom of Working Platform to Ground: 88mm / 3.5in
Track Gauge: 206mm / 8.1in
Track Total Length: 383mm / 15.1in
Track Width: 43mm / 1.7in
 Height from Bottom of X-Frame to Ground : 38mm / 1.5in
Total Excavator Width: 268mm / 10.6in
Minimum Swing Radius: 262mm / 10.3in
Maximum Digging Depth: 662mm / 26.1in
Maximum Digging Height: 927mm / 36.5in
Maximum Digging Radius: 1025mm / 40.4in
Swing speed: 12r/min
 Maximum Ground Digging Radius: 1014mm / 39.9in
Swing Drive Reduction Ratio: 1:208
Travel Drive Wheel Speed: 25r/min
Swing Motor Speed: 2500r/min
(Travel Drive Reduction Ratio: 1:520
Travel Motor Speed: 13200r/min
Rated Pressure of Hydraulic Station: 3MPa
 Maximum Pressure of Hydraulic Station: 4MPa
ID: LS-BA-B0034-MTrack-RTR-PENQI-OG

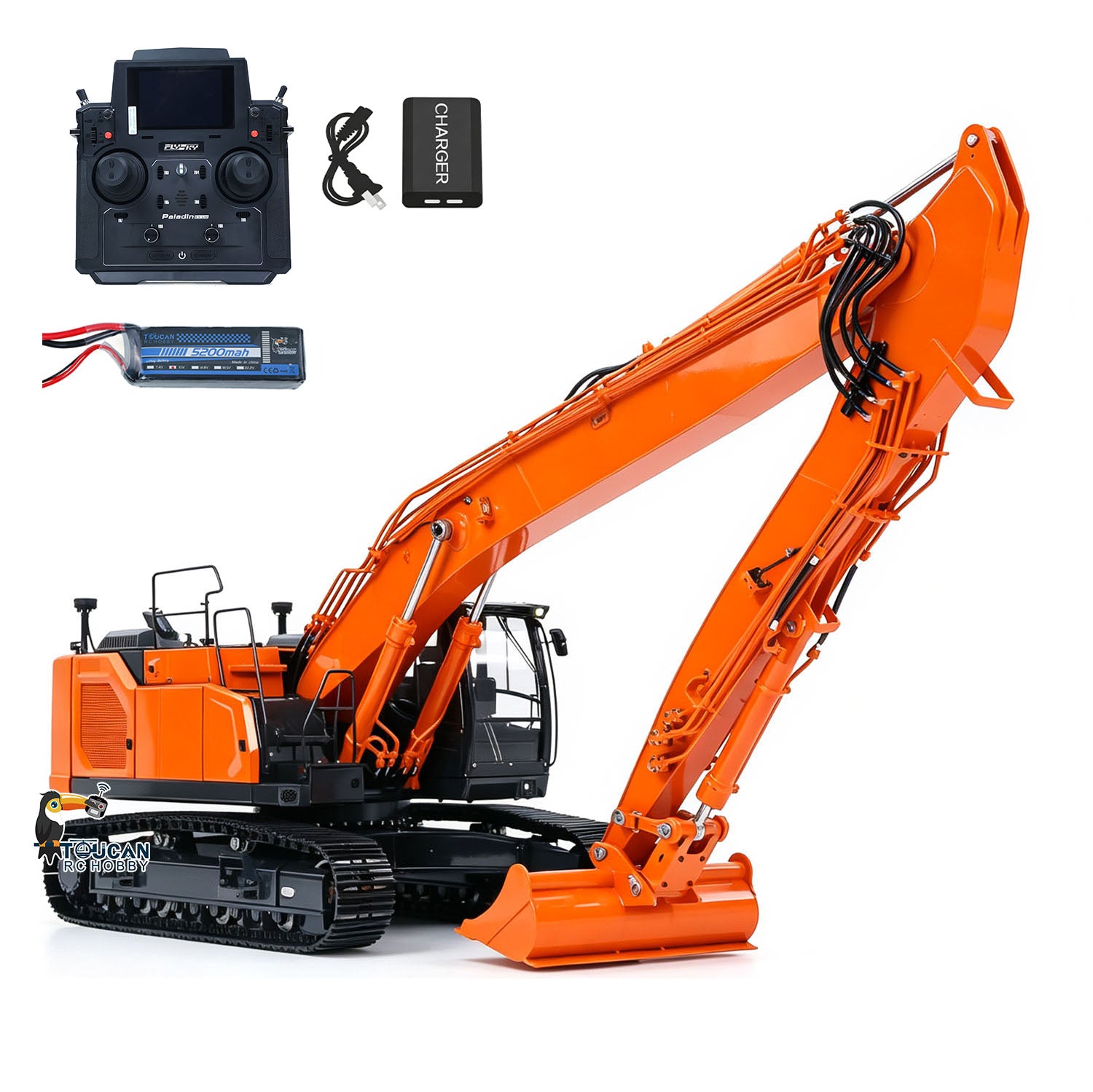

#The Package Includes:
1/14 RC Hydraulic Excavator Model
Motor
Servo
ESC
Hydraulic System
Light System
Sound System
Remote Controller and Receiver
Battery
Charger

#The Package Does Not Include:
Hydraulic Oil

#If you have any questions or are not sure whether it is the correct item you want, pls feel free to contact me before purchasing.

#Features:

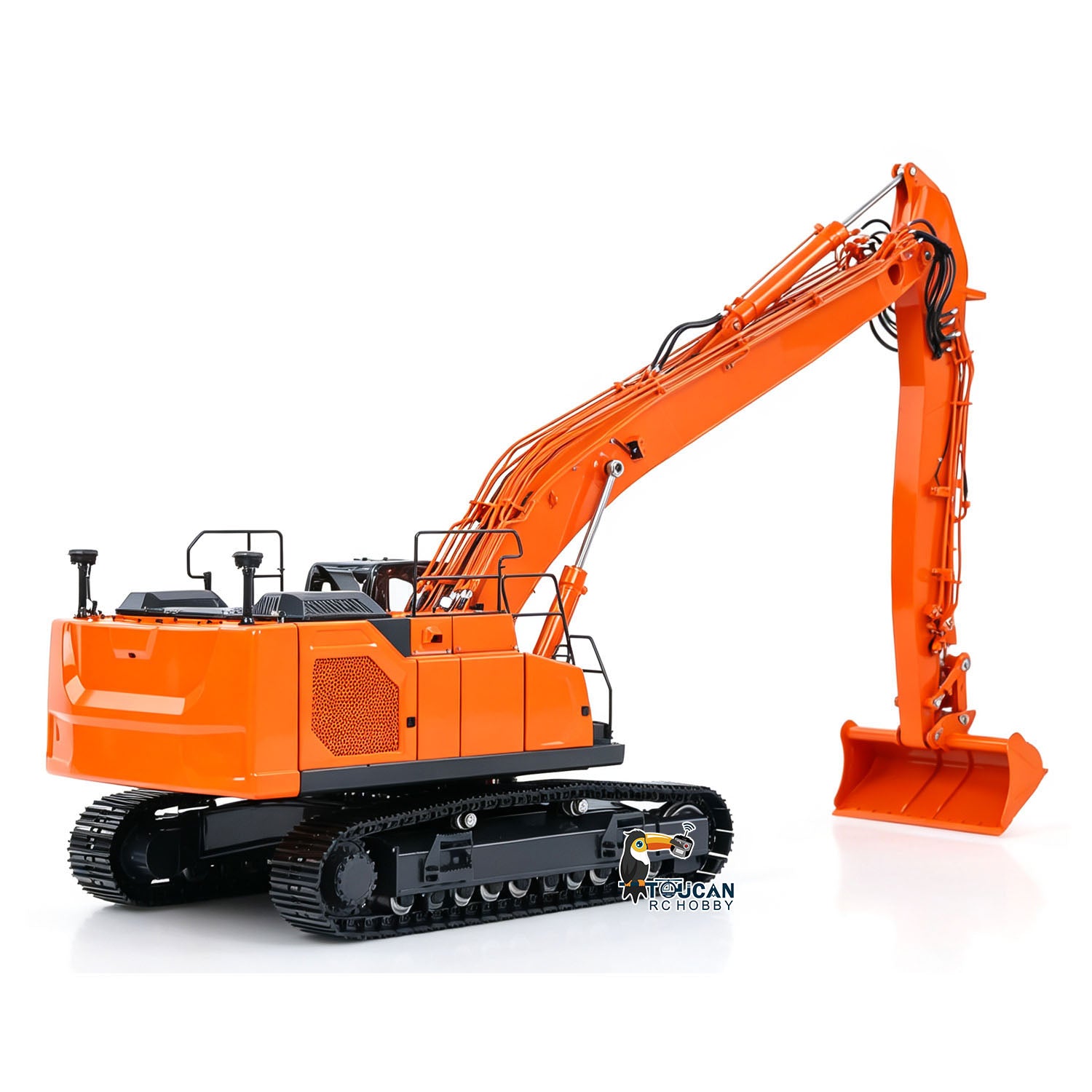

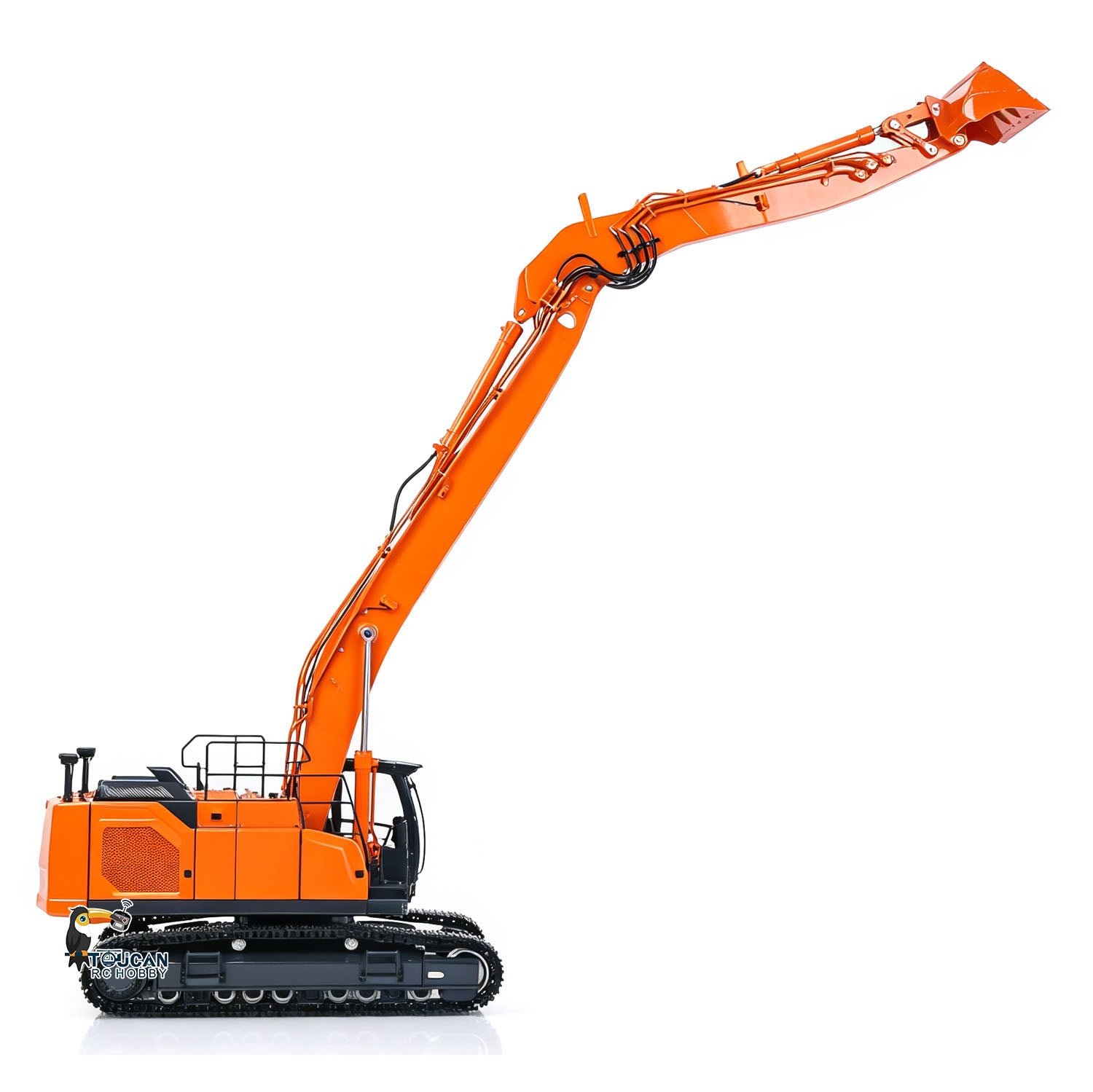

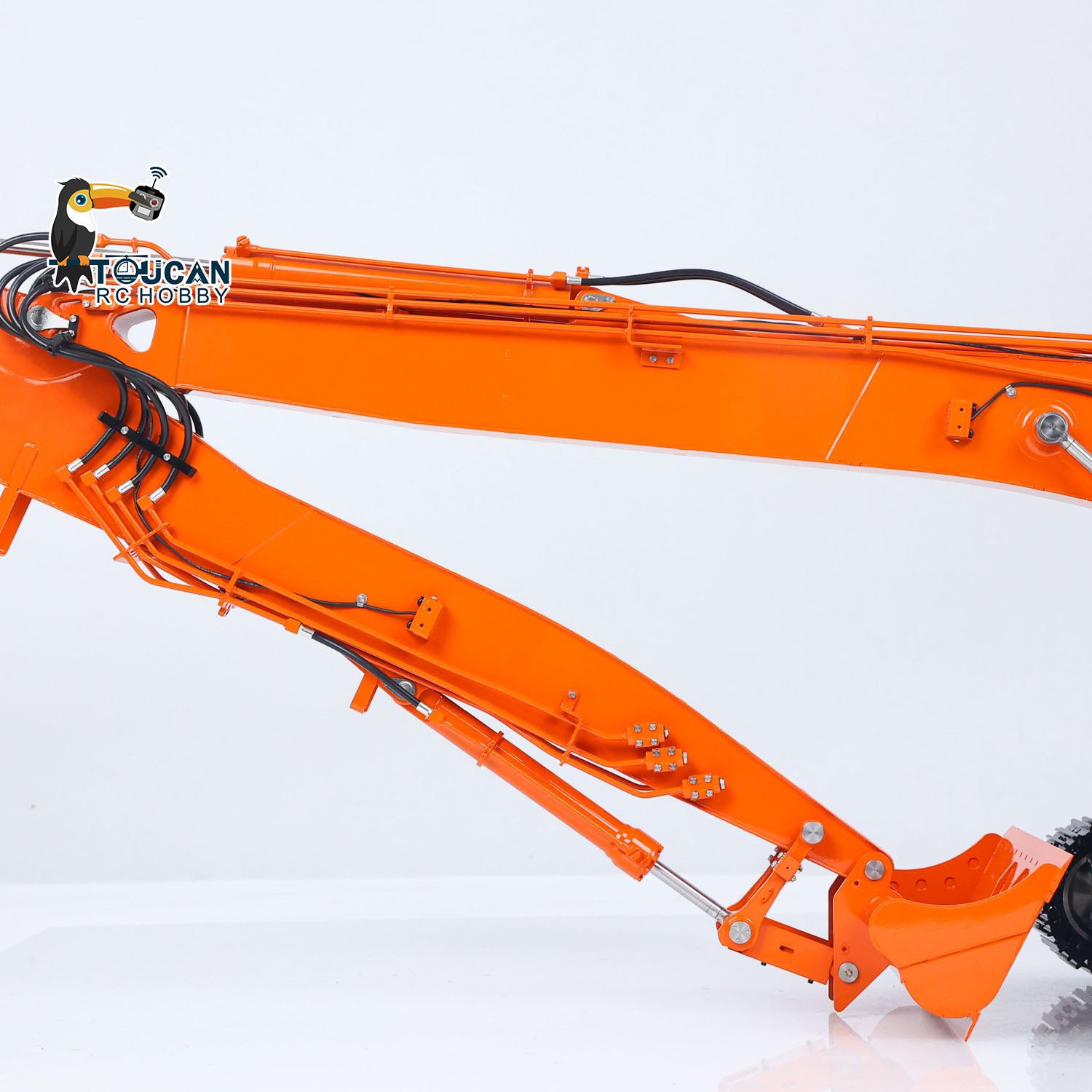

1. Precision hydraulic system with excavator arm for more coordinated, smooth and linear movements; long-reach arm and large cylinder design for wider working range.
2. Whole-machine modular design; stainless steel excavator arm and aluminum alloy counterweight; counterweight processed by CNC for more detailed and realistic appearance.
3. 80% full copper welding for the fixed oil circuit system; 90% metal material for the whole excavator.
4. Equipped with 7-channel directional valve and 4 sets of hydraulic cylinders; the boom reserves 3-way oil circuit expansion function.

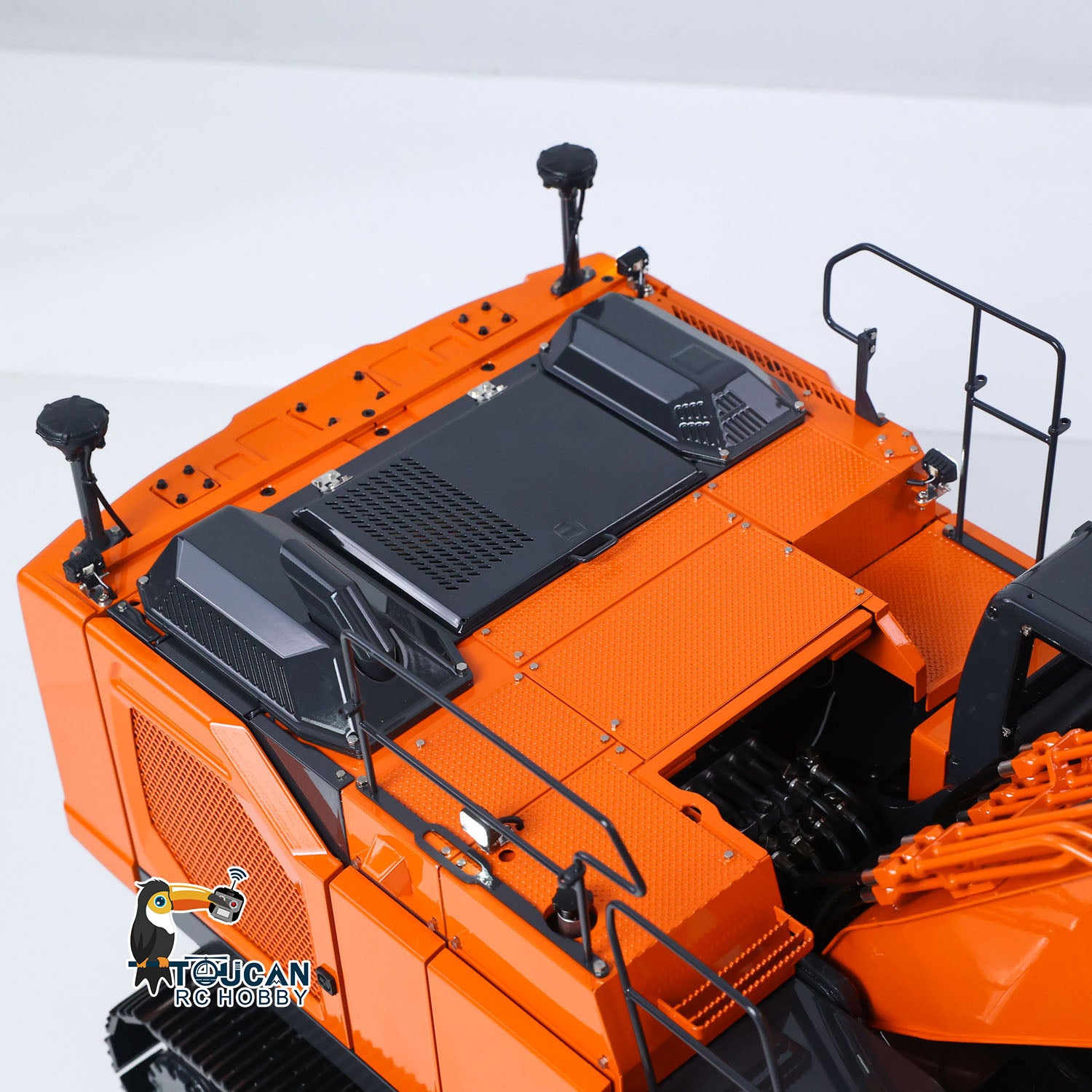

5. 7 openable doors of the whole excavator; it has 9 LED lights, 2 GPS lights ，and equipped with light and sound system to enhance the immersion of operation.

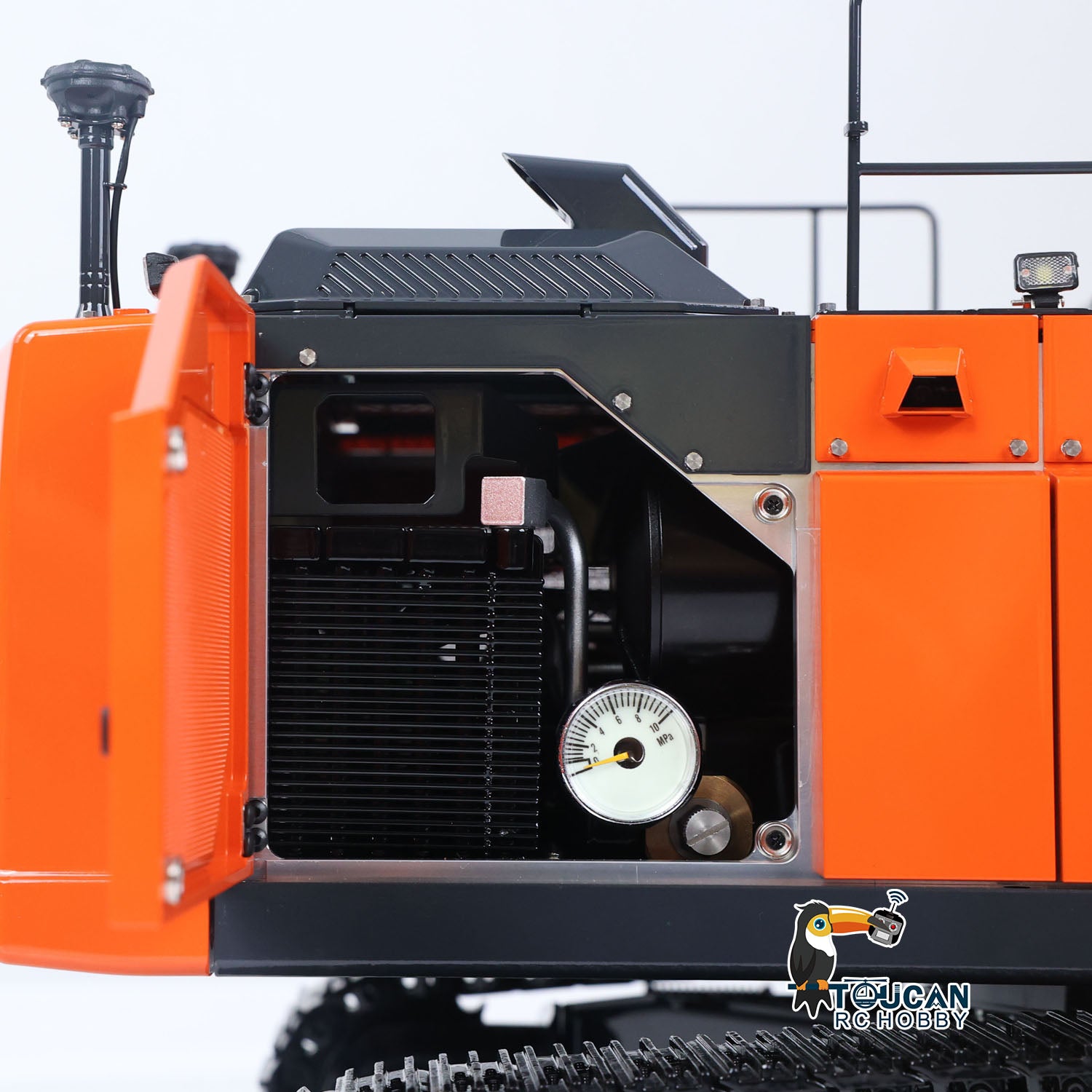

6. Independent and innovative hydraulic station (including oil pump, motor, radiator, oil valve, filter, pressure gauge, oil tank relief valve, etc.).

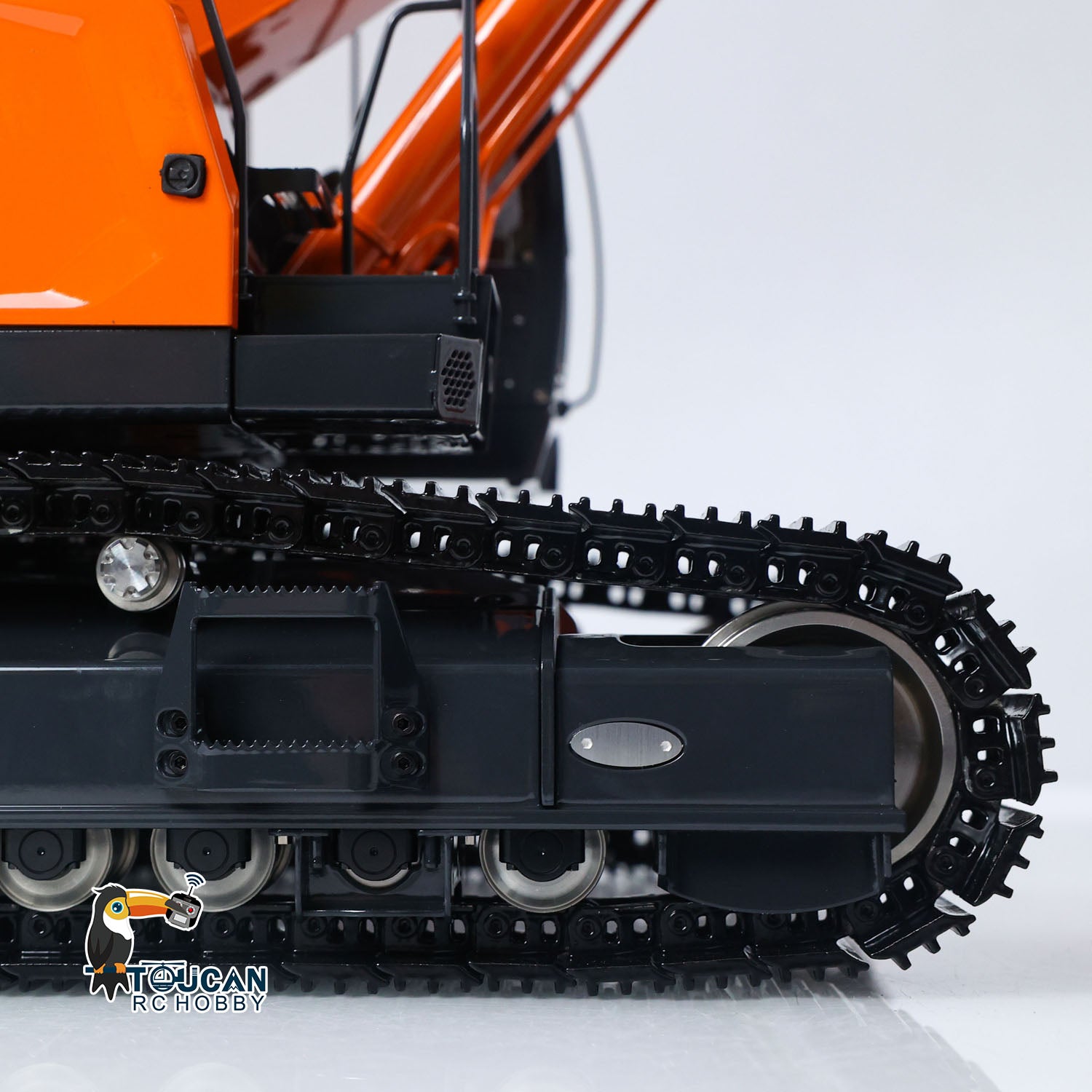

7. Brushless motor power drive with planetary reduction; equipped with high-torque drive wheels, featuring high efficiency, low heat generation, large low-speed torque and smooth operation; full-metal traveling track for better adaptation to various terrains.
8. The swing system is equipped with a 6-channel electrical slip ring, enabling this excavator to rotate 360° smoothly and enhancing the playability of this excavator.

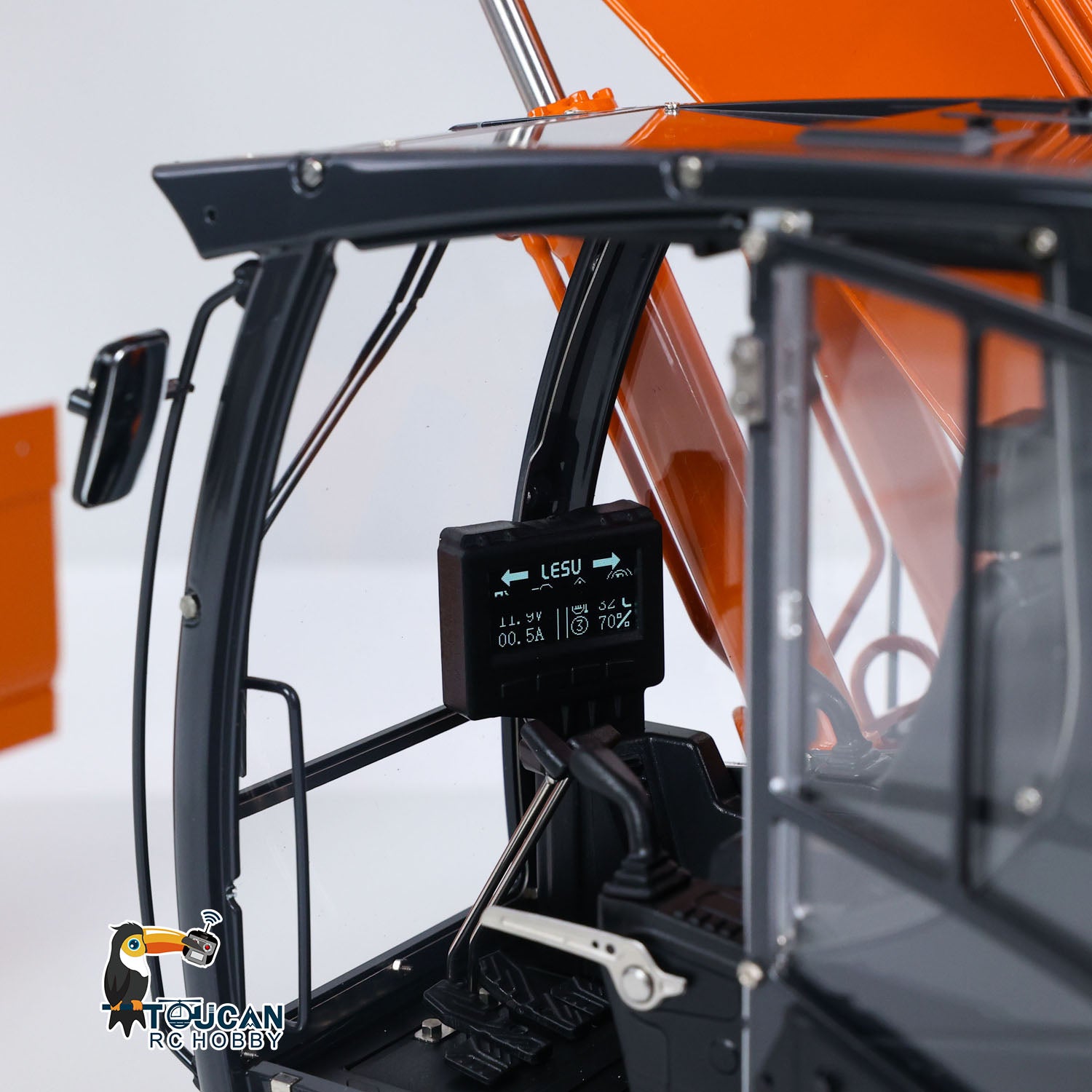

9. The excavator cab is equipped with a liquid crystal display that shows oil temperature and voltage conditions.
10.Comes with battery and remote control, ready to play out of the box, no need to purchase separately.
